光子学 - 计数器、探测器、单光子计数模块（SPCM）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 光子检测效率 | 波长范围 | 暗计数率 | 波长 - 峰值 | 最大计数率 | 死区时间 | 电压 - 电源 | 输出 | 探测器类型 | 有效面积 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

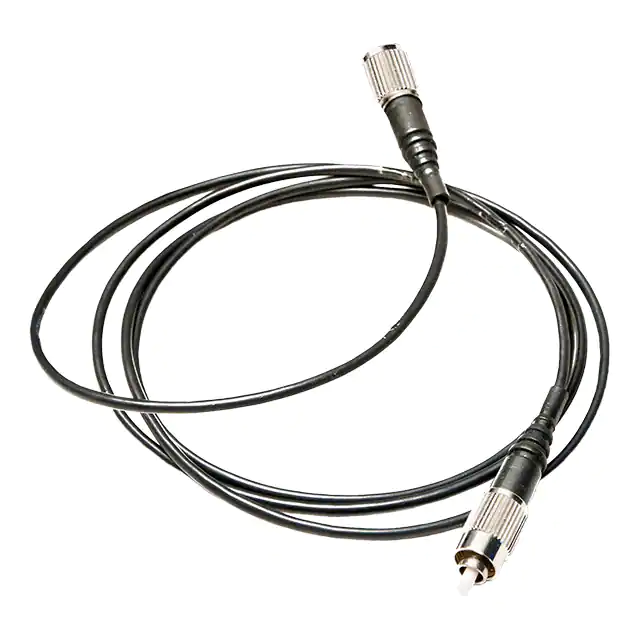

SPCM-QC9 FIBERSPCM-QC9 MULTIMODE 100 FC + FC Excelitas Technologies |
12 |
|
规格书 |
SPCM-AQRH | Box | Active | Fiber Cable | - | - | - | - | - | - | - | - | - | - | - | - |
|
SPCM-AQRH-10PHOTON COUNT MODULE <1500CPS Excelitas Technologies |
4 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-10-FCPHOTON COUNT MODULE <1500CPS FC Excelitas Technologies |
6 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-AQRH-11-FCPHOTON COUNT MODULE 1000CPS FC Excelitas Technologies |
5 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 1000cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
SPCM-AQRH-12-FCPHOTON COUNT MODULE 500CPS FC Excelitas Technologies |
2 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 500cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|

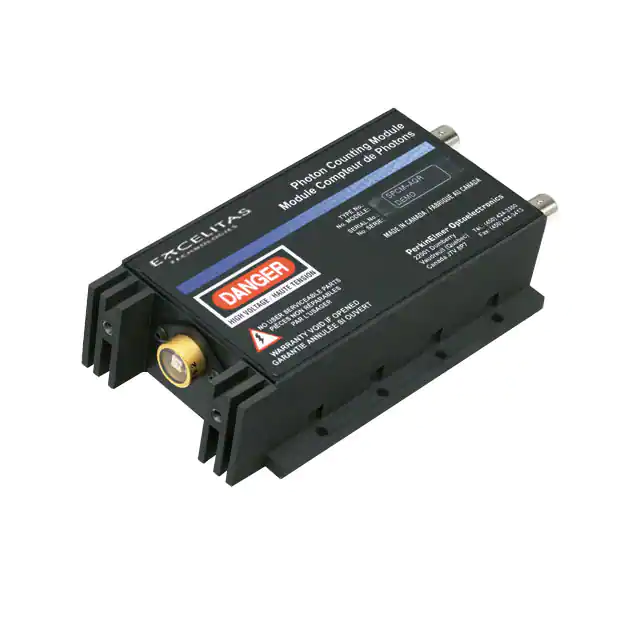

SPCM-AQRH-13PHOTON COUNT MODULE 250CPS Excelitas Technologies |
2 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
SPCM-AQRH-13-FCPHOTON COUNT MODULE 250CPS FC Excelitas Technologies |
17 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|

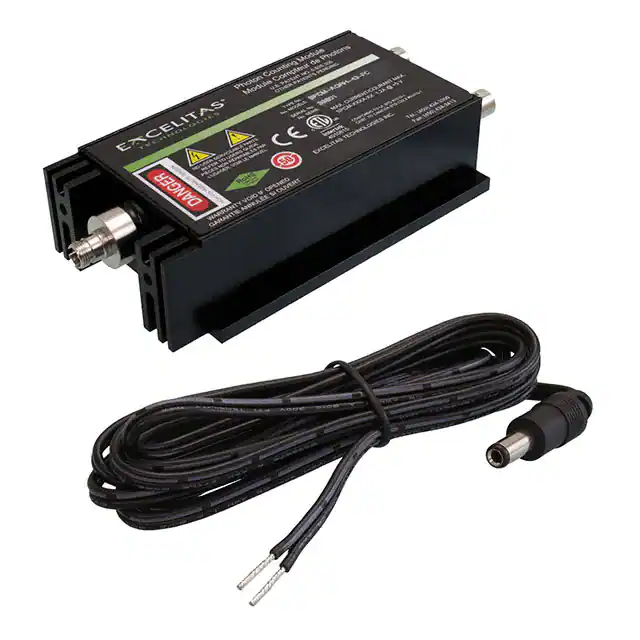

SPCM-AQRH-43-FCPHOTON COUNTING MODULE 4.4V Excelitas Technologies |
4 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 250cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
SPCM-AQRH-14PHOTON COUNT MODULE 100CPS Excelitas Technologies |
4 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 100cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | - | 5°C ~ 70°C |
|
|
SPCM-AQRH-15-FCPHOTON COUNT MODULE <50CPS FC Excelitas Technologies |
2 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 50cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
