光子学 - 计数器、探测器、单光子计数模块（SPCM）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 光子检测效率 | 波长范围 | 暗计数率 | 波长 - 峰值 | 最大计数率 | 死区时间 | 电压 - 电源 | 输出 | 探测器类型 | 有效面积 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPCM-AQRH-56-BR2PHOTON COUNTING MODULE |
0 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-66-BR1PHOTON COUNTING MODULE |
0 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 4.4V | Avalanche Photodiode | 180μm | Tube Cage Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-66-BR2PHOTON COUNTING MODULE |
0 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 4.4V | Avalanche Photodiode | 180μm | C-Mount Bracket | 5°C ~ 70°C |
|
|
SPCM-AQRH-26-FCPHOTON COUNTING MODULE |
0 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-AQRH-36-FCPHOTON COUNTING MODULE |
0 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 2.2V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-AQRH-46-FCPHOTON COUNTING MODULE |
0 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 22ns | 5VDC | TTL 10ns 4.4V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-AQRH-56-FCPHOTON COUNTING MODULE |
0 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 28ns | 5VDC | TTL 18ns 4.4V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|
|
SPCM-AQRH-66-FCPHOTON COUNTING MODULE |
0 |
|
规格书 |
SPCM-AQRH | Box | Active | Single Photon Detector | 65% | 400 ~ 1060nm | 25cps | 650nm | 37Mcps | 35ns | 5VDC | TTL 28ns 4.4V | Avalanche Photodiode | 180μm | FC Fiber Adaptor | 5°C ~ 70°C |
|

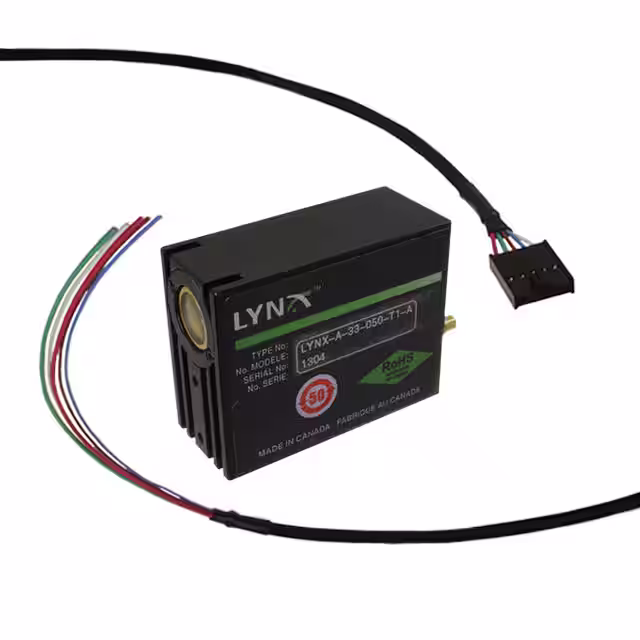

LYNX-A-33-050-T1-AMODULE SILICON PHOTOMULTIPLIER |
0 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LYNX-A-33-A50-T1-AMODULE SILICON PHOTOMULTIPLIER |
0 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LYNX-A-33-A50-T1-BMODULE SILICON PHOTOMULTIPLIER |
0 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LYNX-A-33-050-T1-BMODULE PHOTOMULTIPLIER SILICON |
0 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
