光电中断器 - 槽型 - 晶体管输出
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 感应距离 | 感应方法 | 输出配置 | 电流 - 直流正向（If）（最大值） | 电流 - 集电极 (Ic)（最大值） | 电压 - 集电极发射极击穿（最大值） | 响应时间 | 工作温度 | 等级 | 认证 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

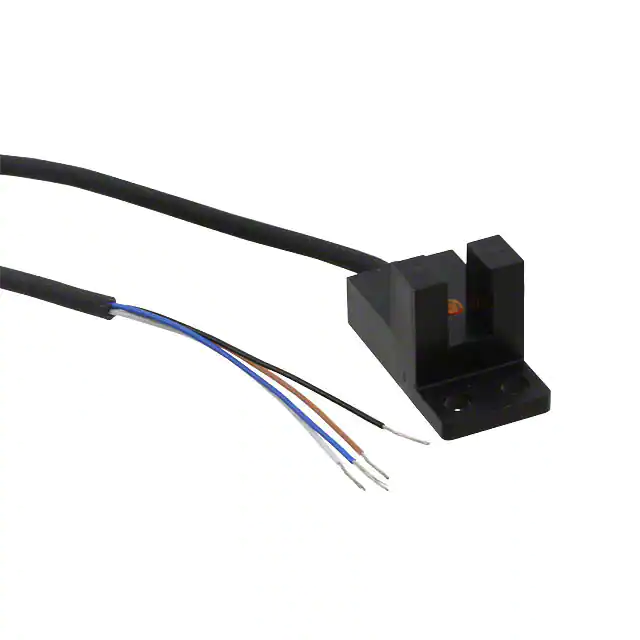

PM-Y44-C3SENSOR OPT SLOT NPN MODULE |
0 |
|
规格书 |
PM-44 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | - | - | - | Chassis Mount |
|

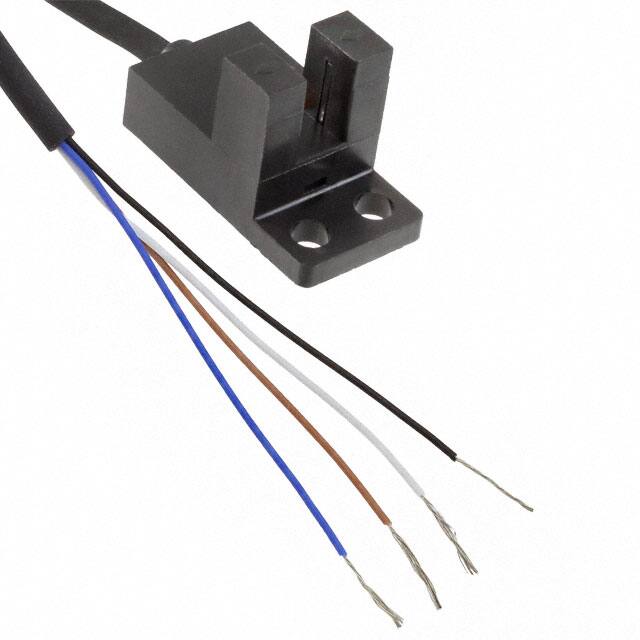

PM-Y44P-C3SENSOR OPT SLOT PNP MODULE |
0 |
|
规格书 |
PM-44 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | - | - | - | Chassis Mount |
|

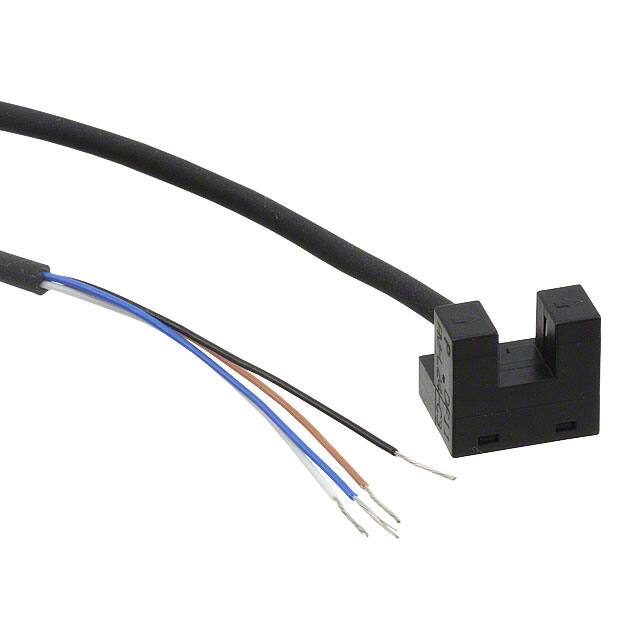

PM-L24-C3SENSOR OPT SLOT NPN MOD 3M CBL |
0 |
|
规格书 |
PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
PM-L44-C3SENSOR OPT SLOT NPN MOD 3M CBL |
0 |
|
规格书 |
PM-44 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|

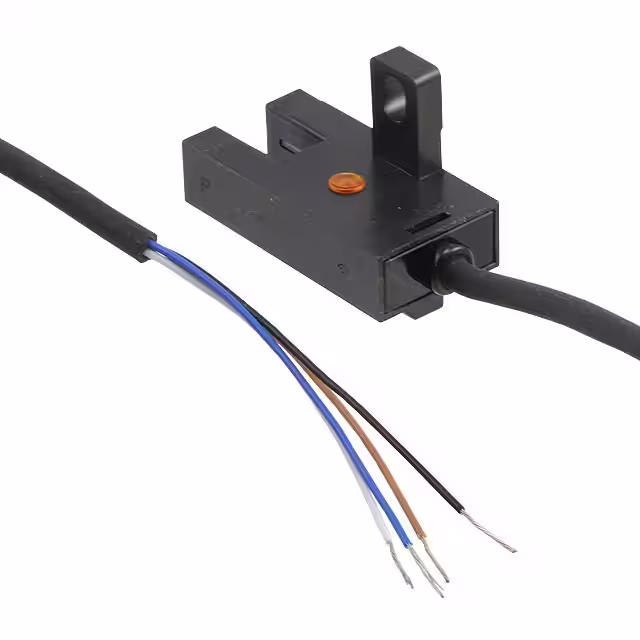

PM-T44-C3SENSOR OPT SLOT NPN MOD 3M CBL |
0 |
|
规格书 |
PM-44 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|

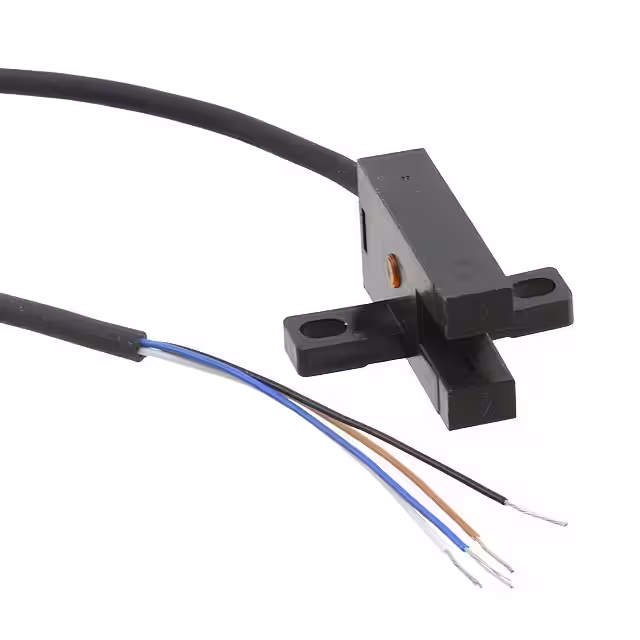

PM-T44P-C3SENSOR OPT SLOT PNP MOD 3M CBL |
0 |
|
规格书 |
PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|

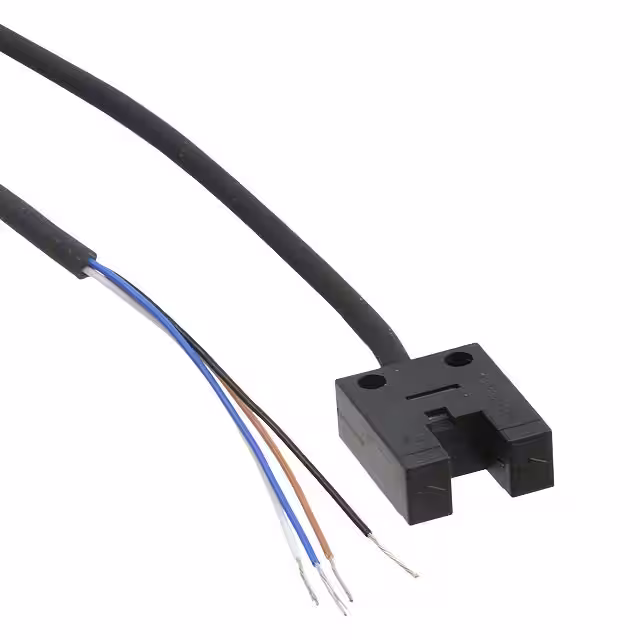

PM-U24-C3SENSOR OPT SLOT NPN MOD 3M CBL |
0 |
|
规格书 |
PM-24 | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 30 V | 20µs | -25°C ~ 55°C | - | - | Chassis Mount |
|
EE-SX911P-R 1MSENSOR OPT SLOT PNP MODULE |
0 |
|
规格书 |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
EE-SX975P-C1SENSOR OPT SLOT MODULE |
0 |
|
规格书 |
- | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|
|
EE-SX975-C1SENSOR OPT SLOT MODULE |
0 |
|
规格书 |
- | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|
|
EE-SX977-C1SENSOR OPT SLOT MODULE |
0 |
|
规格书 |
- | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|
|
EE-SX913P-C1J-R 0.3MSENSOR OPT SLOT PNP MODULE |
0 |
|
规格书 |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
EE-SX910P-C1J-R 0.3MSENSOR OPT SLOT PNP MODULE |
0 |
|
规格书 |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
EE-SX911P-C1J-R 0.3MSENSOR OPT SLOT PNP MODULE |
0 |
|
规格书 |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
EE-SX914P-C1J-R 0.3MSENSOR OPT SLOT PNP MODULE |
0 |
|
规格书 |
- | Module, Wire Leads, Slot Type | Bulk | Obsolete | 0.197" (5mm) | Through-Beam | PNP - Open Collector | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount |
|
|
EE-SX675-WR 1MOPTO SENSOR TSH 5MM NPN 1MC |
0 |
|
规格书 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
EE-SX670-C1J-R 0.1MOPTO SENSOR STD 5MM NPN ON |
0 |
|
规格书 |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - |
|
|
EE-SX670P-C1J-R 0.1MOPTO SENSOR STD 5MM PNP ON |
0 |
|
规格书 |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - |
|
|
EE-SX671-C1J-R 0.1MOPTO SENSOR LSH NPN CONN |
0 |
|
规格书 |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - |
|
|
EE-SX671P-C1J-R 0.1MOPTO SENSOR LSH PNP CONN |
0 |
|
规格书 |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - |
