上传BOM
光电中断器 - 槽型 - 晶体管输出
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 感应距离 | 感应方法 | 输出配置 | 电流 - 直流正向（If）（最大值） | 电流 - 集电极 (Ic)（最大值） | 电压 - 集电极发射极击穿（最大值） | 响应时间 | 工作温度 | 等级 | 认证 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H21A2SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 8µs, 150µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H21A3SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 30 V | 8µs, 150µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
QVE00118SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
规格书 |
- | Module, PC Pins, Slot Type | Tube | Obsolete | 0.197" (5mm) | Through-Beam | Phototransistor | 60 mA | 20 mA | 30 V | 4µs, 4µs | -55°C ~ 100°C | - | - | Through Hole |
|
|
H21B3SENSOR OPT SLOT DARL PC PINS |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | 7µs, 45µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H21B2SENSOR OPT SLOT DARL PC PINS |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | 7µs, 45µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H21B4SENSOR OPT SLOT DARL PC PINS |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 55 V | 7µs, 45µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H21B5SENSOR OPT SLOT DARL PC PINS |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 55 V | 7µs, 45µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H21B6SENSOR OPT SLOT DARL PC PINS |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 55 V | 7µs, 45µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H22A4SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | - | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H22A5SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | - | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H22A6SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 60 mA | - | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|

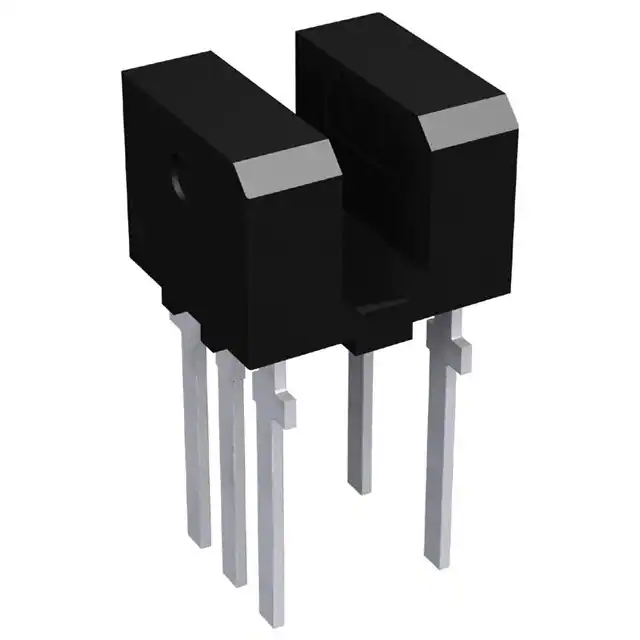

RPI-151SENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
规格书 |
- | Slotted Module | Bulk | Not For New Designs | - | - | Phototransistor | 50 mA | 30 mA | 30 V | 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
H21A4SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H21A5SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
H21A6SENSOR OPT SLOT PHOTOTRAN PC PIN |
0 |
|
规格书 |
- | Slotted, PC Pins | Tube | Obsolete | 0.118" (3mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 55 V | 8µs, 50µs | -55°C ~ 100°C | - | - | Through Hole, Flange |
|
|
QCK3SENSOR OPT SLOT DARL 4SMD GW |
0 |
|
规格书 |
- | 4-SMD, Gull Wing | Tube | Obsolete | 0.157" (4mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 30 V | - | -40°C ~ 100°C | - | - | Surface Mount |
|
|
LTH-306-06W1SENSOR OPT SLOT MODULE |
0 |
|
- |
- | Module, Connector, Actuated Sensor | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | Snap-In |
|
|
TCUT1630X01_ASENSOR OPT SLOT PHOTOTRANS MODUL |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
GP1L57SENSOR OPT SLOT DARL PCB MOUNT |
0 |
|
规格书 |
- | PCB Mount | Bulk | Obsolete | 0.394" (10mm) | Through-Beam | Photodarlington | 50 mA | 40 mA | 35 V | 130µs, 100µs | -25°C ~ 85°C | - | - | Through Hole |
|

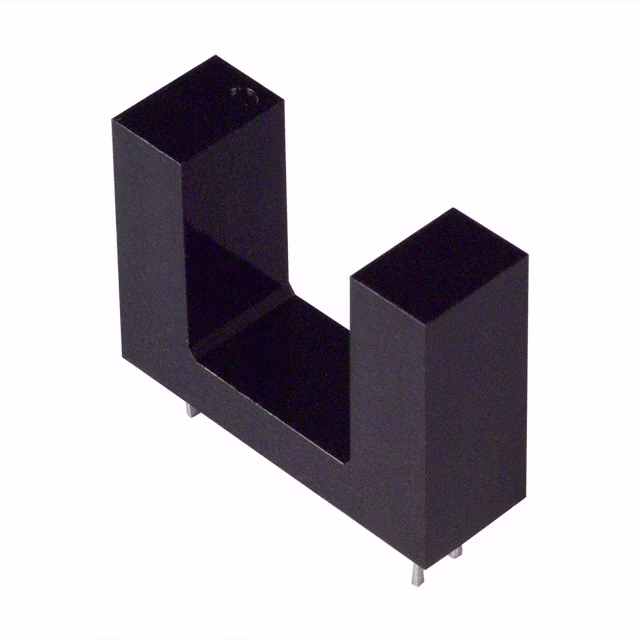

CNZ1120SENSOR OPT SLOT PHOTOTRAN PCB MT |
0 |
|
规格书 |
- | PCB Mount | Bulk | Obsolete | 0.394" (10mm) | Through-Beam | Phototransistor | 50 mA | 20 mA | 20 V | 6µs, 6µs | -5°C ~ 60°C | - | - | Through Hole |
