上传BOM
多导体电缆
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E2022S.30.10CABLE 2COND 20AWG GRAY SHLD 100' |
0 |
|
规格书 |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.142" (3.61mm) | Foil | 100.0' (30.5m) | Gray | - | Drain Wire | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0080" (0.203mm) | Poly-Vinyl Chloride (PVC) | - |
|
8712040SCABLE 4COND 12AWG BLK SHLD 10' |
0 |
|
规格书 |
ÖLFLEX® | Bulk | Active | Multi-Conductor | 4 | 12 AWG | 224/0.0059" | Copper, Bare | Thermoplastic Polymer | 0.515" (13.08mm) | Braid | 10.00' (3.05m) | Black | - | Oil Resistant | - | - | Industrial | - | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
30-02860CABLE 2COND 26AWG BLK/RED 30M |
2 |
|
规格书 |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 26 AWG | 7/0.0063" | Copper, Bare | Polyethylene (XLPE), Irradiated; Low Smoke Zero Halogen (LSZH) | 0.102" (2.59mm) | - | 98.43' (30.00m) | Black, Red | UL Style 4384 | - | 300 V | 105°C | - | 0.0146" (0.370mm) | - | - |
|
|
30-02850CABLE 2COND 26AWG BLACK 30M |
0 |
|
规格书 |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 26 AWG | 7/0.0063" | Copper, Bare | Polyethylene (XLPE), Irradiated; Low Smoke Zero Halogen (LSZH) | 0.102" (2.59mm) | - | 98.43' (30.00m) | Black | UL Style 4384 | - | 300 V | 105°C | - | 0.0146" (0.370mm) | - | - |
|
|
82404.99.01CABLE 4COND 3/0AWG BLACK |
0 |
|
- |
- | Spool | Active | Multi-Conductor | 4 | 3/0 AWG | - | Copper, Annealed Bare | Super Vu-Tron® | 2.040" (51.82mm) | - | - | Black | - | - | 2 kV | -40°C ~ 90°C | - | 0.0800" (2.032mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|

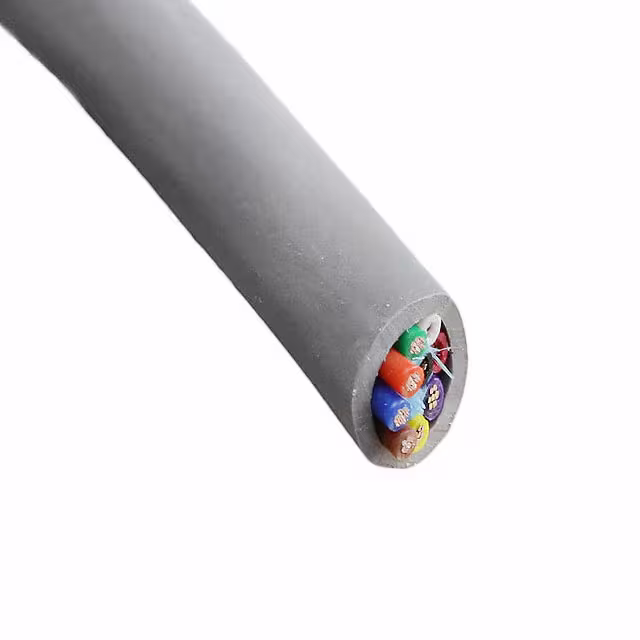

79230 SL005CABLE 9CON 14AWG SLATE SHLD |
0 |
|
规格书 |
EcoFlex® | Spool | Active | Multi-Conductor | 9 | 14 AWG | 41/30 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.493" (12.52mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0350" (0.889mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
45549 BK199CABLE 9COND 14AWG BLK SHLD 1000' |
0 |
|
规格书 |
Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 9 | 14 AWG | 14/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.672" (17.06mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0650" (1.651mm) | Thermoplastic Elastomer (TPE) | - |
|
|
45549 SL199CABLE 9COND 14AWG SHLD 1000' |
0 |
|
规格书 |
Xtra-Guard® 4 | Spool | Active | Multi-Conductor | 9 | 14 AWG | 14/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.672" (17.06mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 600 V | -50°C ~ 125°C | - | 0.0650" (1.651mm) | Thermoplastic Elastomer (TPE) | - |
|
|
700731/762LFLEX SERVO 7TCE 4G14AWG |
0 |
|
- |
ÖLFLEX® | Bulk | Active | Multi-Conductor | 2 | 14 AWG | - | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.256" (6.50mm) | - | - | Orange | - | - | 600 V | -25°C ~ 90°C | - | - | Polyethylene (XLPE), Irradiated | - |
|
|
ATMM300 008CUTCAT3 300PR ATMM CMR CUT |
0 |
|
规格书 |
- | Spool | Obsolete | Multi-Pair, Cat3 | 600 (300 Pair) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 1.320" (33.53mm) | - | 1.00' (0.30m) | Gray | UL Style CMR | Rip Cord | 300 V | -20°C ~ 60°C | - | - | Foam Polyolefin (FPO) | - |
|
E1032S.41.10CABLE 2COND 18AWG GRAY 100' |
1 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 7/26 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.156" (3.96mm) | - | 100.0' (30.5m) | Gray | ASTM B-3 | Rip Cord | 300 V | -25°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5429/25 BK199CABLE 25COND 18AWG BLACK 1000' |
0 |
|
规格书 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 25 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.796" (20.22mm) | - | 1000.0' (304.8m) | Black | ISO 10993, UL Style 2501 | Biological Compatibility, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5429/25 SL199CBL 25COND 18AWG SLT 1000=1000' |
0 |
|
规格书 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 25 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.796" (20.22mm) | - | - | Slate | ISO 10993, UL Style 2501 | Biological Compatibility, Rip Cord | 600 V | -30°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
88112 0081000MULTI-PAIR 25CON 24AWG GRY |
0 |
|
规格书 |
- | Spool | Active | Multi-Pair | 25 (12.5 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF), Plenum | 0.397" (10.08mm) | Foil | 1000.0' (304.8m) | Gray | UL Style CMP | Drain Wire | 300 V | -20°C ~ 150°C | Computer | 0.0140" (0.356mm) | Foam Fluorinated Ethylene-Propylene (FFEP) | - |
|
|
88112 008500MULTI-PAIR 25CON 24AWG GRAY |
0 |
|
规格书 |
- | Spool | Active | Multi-Pair | 25 (12.5 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Polyvinylidene Fluoride (PVDF), Plenum | 0.397" (10.08mm) | Foil | 500.0' (152.4m) | Gray | UL Style CMP | Drain Wire | 300 V | -20°C ~ 150°C | Computer | 0.0140" (0.356mm) | Foam Fluorinated Ethylene-Propylene (FFEP) | - |
|
89063.35.05CABLE 3COND 16AWG YELLOW 25' |
0 |
|
规格书 |
Ultra Flex® | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 16 AWG | 26/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.400" (10.16mm) | - | 25.00' (7.62m) | Yellow | - | Oil Resistant | 600 V | -50°C ~ 105°C | Cord and Cordset | 0.0300" (0.762mm) | Thermoplastic Elastomer (TPE) | - |
|
|
0027382/500LFLEX FD 855 CP 5G2,5 |
0 |
|
- |
ÖLFLEX® | Bulk | Active | Multi-Conductor | 5 (2.5 Pair Twisted) | 14 AWG | - | Copper, Bare | Polyurethane (PU) | 0.504" (12.80mm) | Braid | - | Gray | - | - | 600 V | -40°C ~ 80°C | - | - | Thermoplastic Elastomer (TPE) | - |
|
|
5529/19 SL005CABLE 19COND 18AWG SHLD |
0 |
|
规格书 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 19 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.760" (19.30mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2501 | Drain Wire, Rip Cord | 600 V | -30°C ~ 105°C | - | 0.0830" (2.108mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
5370/25C SL002CABLE 25COND 16AWG SHLD |
0 |
|
规格书 |
Xtra-Guard® 1 | Spool | Active | Multi-Conductor | 25 | 16 AWG | 19/0.0117" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.660" (16.76mm) | Foil | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2464 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|

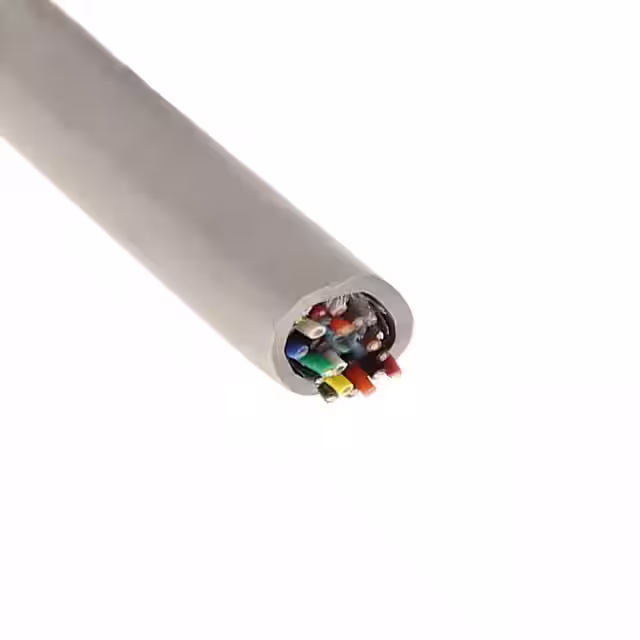

5353C SL002MULTI-PAIR 30COND 20AWG |
0 |
|
规格书 |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 30 (15 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.597" (15.16mm) | Foil, Braid | 500.0' (152.4m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
