电机 - 交流、直流
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 功能 | 电机类型 | 额定电压 | 转速（RPM） | 额定扭矩（oz-in / mNm） | 额定功率 | 编码器类型 | 尺寸 / 尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 特性 | 齿轮减速比 | 最大瞬时扭矩（oz-in / mNm） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
80189601MOTOR 80W 24VDC DRIVE TNI20 INPU |
0 |
|
规格书 |
801896, TNi20 | Bulk | Obsolete | DC Motor | - | - | 24VDC | - | - | - | - | - | - | - | - | - | Integrated Controller | - | - | - |
|
|
80189602MOTOR 80W 24VDC DRIVE TNI20 INPU |
0 |
|
规格书 |
801896, TNi20 | Bulk | Obsolete | DC Motor | - | - | 24VDC | - | - | - | - | - | - | - | - | - | Integrated Controller | - | - | - |
|
|
M9RX40SB4LGASTANDARD MOTOR 1625 RPM 100V |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 100VAC | 1625 RPM | 34 / 240 | 40W | - | Square - 3.543" x 3.543" (90.00mm x 90.00mm) | 0.354" (9.00mm) | 1.457" (37.00mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M8RX25GB4GGAMOTOR INDUCT 80MM 100V 25W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 220, 230VAC | 1600 RPM | 21.24 / 150 | 25W | - | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | - | 0.445" (11.30mm) | 3.701" (94.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M8RX25SB4YGAMOTOR INDUCT 80MM 100V 25W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 200VAC | 1550 RPM | 21.24 / 150 | 25W | - | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.315" (8.00mm) | 1.260" (32.00mm) | 3.701" (94.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9MX40GB4YGASTANDARD MTR 1657 RPM 200/220V |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 200, 220VAC | 1657 RPM | 32.57 / 230 | 40W | - | Square - 3.543" x 3.543" (90.00mm x 90.00mm) | - | 1.457" (37.00mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9RZ90SV4YGAMOTOR INDUCT 90MM 100V 90W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 200VAC | 1200 RPM | 77.9 / 550 | 90W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | 0.472" (12.00mm) | 1.457" (37.00mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|

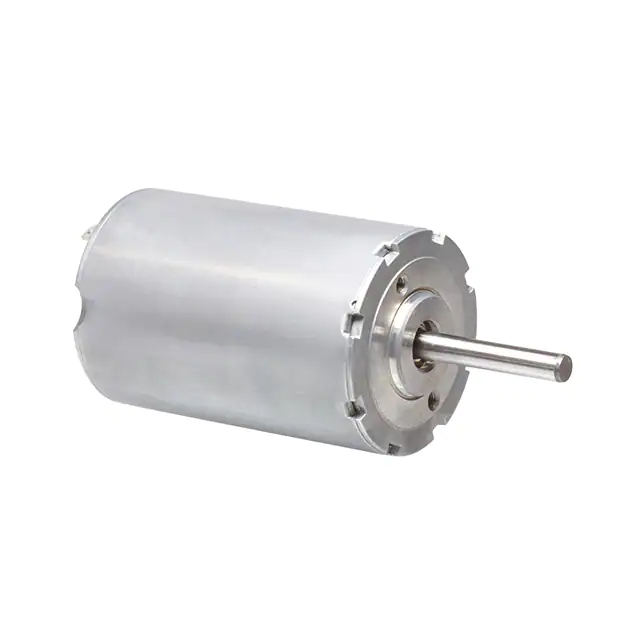

BLDC40S40ASTANDARD MOTOR 4050 RPM 24V |
0 |
|
规格书 |
40S | Bulk | Active | DC Motor | Standard | Brushless (BLDC) | 24VDC | 4050 RPM | 36.26 / 256 | 109W | - | Round - 1.575" Dia (40.00mm) | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.102" (28.00mm) | Solder Tab | - | - | - | -20°C ~ 45°C |
|
|
M9RZ60GB4LMOTOR INDUCT 90MM 100V 60W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 100VAC | 1600 RPM | 50.98 / 360 | 60W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | - | 0.807" (20.50mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9RZ60SB4LSMOTOR INDUCT 90MM 100V 60W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 100VAC | - | - | 60W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | 0.472" (12.00mm) | 1.457" (37.00mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9RZ60SB4YSMOTOR INDUCT 90MM 100V 60W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 200VAC | - | - | 60W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | 0.472" (12.00mm) | 1.457" (37.00mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M8RX25GB4YGAMOTOR INDUCT 80MM 100V 25W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 200VAC | 1550 RPM | 21.24 / 150 | 25W | - | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | - | 0.445" (11.30mm) | 3.701" (94.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9MZ90SB4YSSTANDARD MOTOR 1650 RPM 200V |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 200VAC | 1650 RPM | 73.64 / 520 | 90W | - | Square - 3.543" x 3.543" (90.00mm x 90.00mm) | 0.433" (11.00mm) | 1.457" (37.00mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9RZ60GB4YMOTOR INDUCT 90MM 100V 60W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 200VAC | 1600 RPM | 50.98 / 360 | 60W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | - | 0.807" (20.50mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9RZ90SV4LGAMOTOR INDUCT 90MM 100V 90W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 100VAC | 1200 RPM | 77.9 / 550 | 90W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | 0.472" (12.00mm) | 1.457" (37.00mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9MX40SB4YGAMOTOR INDUCT 90MM 100V 40W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 200, 220VAC | 1675 RPM | 32.57 / 230 | 40W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | 0.394" (10.00mm) | 1.457" (37.00mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9RZ90GV4YGAMOTOR INDUCT 90MM 100V 90W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 200VAC | 1200 RPM | 77.9 / 550 | 90W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | - | 0.807" (20.50mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9RZ90GV4LGAMOTOR INDUCT 90MM 100V 90W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 100VAC | 1200 RPM | 77.9 / 550 | 90W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | - | 0.807" (20.50mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M91Z90SV4DGAMOTOR INDUCT 90MM 100V 90W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 110, 115VAC | 1200 RPM | 76.47 / 540 | 90W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | 0.472" (12.00mm) | 1.457" (37.00mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
|
|
M9RZ90SV4GGAMOTOR INDUCT 90MM 100V 90W |
0 |
|
规格书 |
- | Box | Active | AC Motor | Standard | - | 220, 230VAC | 1200 RPM | 77.9 / 550 | 90W | - | Square - 3.540" x 3.540" (90.00mm x 90.00mm) | 0.472" (12.00mm) | 1.457" (37.00mm) | 4.094" (104.00mm) | Wire Leads | - | - | - | -10°C ~ 40°C |
