磁性导线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线规 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 长度 - 近似值 | 额定值 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

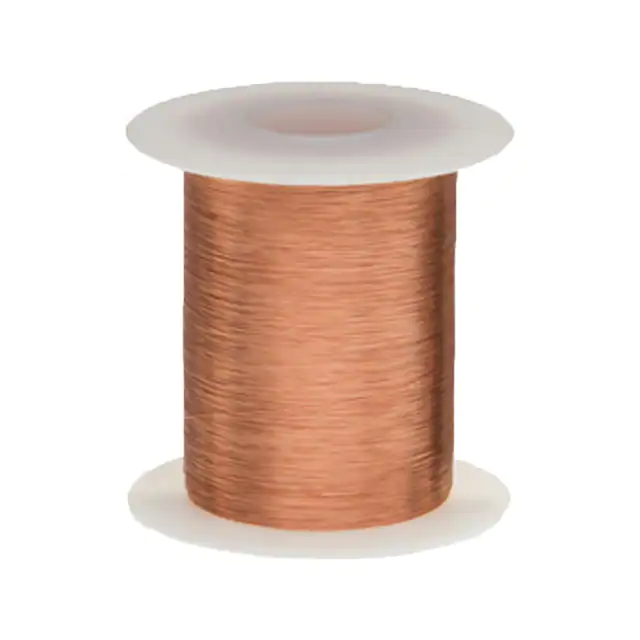

40SNSP.2540SNSP.25 40 AWG MAGNET WIRE, EN |
5 |
|
规格书 |
- | Bag | Active | 40 AWG | Copper, Annealed Bare | Polyurethane (PU) | - | 8304.0' (2531m) | MW 79-C | 0.25 lbs (113.4 g) |
|
600214-3MW35-C HY 14AWG 3KG MAX/V 4500 |
0 |
|
规格书 |
- | Bag | Active | 14 AWG | Copper, Annealed Bare | Polyamide | 0.068" (1.73mm) | 531.5' (162.0m) | MW 35-C HY | 6.6 lbs (3 kg) |
|
|
600222-15MW35-C HY 22AWG 15KG MAX/V 3600 |
0 |
|
规格书 |
- | Spool | Obsolete | 22 AWG | Copper, Annealed Bare | Polyamide | 0.028" (0.71mm) | 17047.2' (5196m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
|
600224-15MW35-C HY 24AWG 15KG MAX/V 3500 |
0 |
|
规格书 |
- | Spool | Obsolete | 24 AWG | Copper, Annealed Bare | Polyamide | 0.023" (0.58mm) | 26993.1' (8227.5m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
|
600228-15MW35-C HY 28AWG 15KG MAX/V 3200 |
0 |
|
规格书 |
- | Spool | Active | 28 AWG | Copper, Annealed Bare | Polyamide | 0.015" (0.38mm) | 68828.7' (20979m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
|
600230-15MW35-C HY 30AWG 15KG MAX/V 3000 |
0 |
|
规格书 |
- | Spool | Active | 30 AWG | Copper, Annealed Bare | Polyamide | 0.012" (0.31mm) | 109247' (33298.5m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
|
600226-15MW35-C HY 26AWG 15KG MAX/V 3300 |
0 |
|
规格书 |
- | Spool | Active | 26 AWG | Copper, Annealed Bare | Polyamide | 0.018" (0.46mm) | 43184' (13162.5m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
|
600232-15MW35-C HY 32AWG 15KG MAX/V 2600 |
0 |
|
规格书 |
- | Spool | Active | 32 AWG | Copper, Annealed Bare | Polyamide | 0.010" (0.25mm) | 171038.4' (52132.5m) | MW 35-C HY | 33.1 lbs (15 kg) |
|
|
600237-30MW35-C HY 37AWG 30KG/66.1LBS |
0 |
|
规格书 |
- | Spool | Obsolete | 37 AWG | Copper, Annealed Bare | Polyamide | 0.006" (0.16mm) | 1084738.0' (330612m) | MW 35-C HY | 66 lbs (29.9 kg) |
|
|
600238-30MW35-C HY 38AWG 30KG/66.1LBS |
0 |
|
规格书 |
- | Spool | Obsolete | 38 AWG | Copper, Annealed Bare | Polyamide | 0.005" (0.13mm) | 1354987.4' (412980m) | MW 35-C HY | 66 lbs (29.9 kg) |
|
|
600234-10MW35-C HY 34AWG 15KG MAX/V 2500 |
0 |
|
规格书 |
- | Spool | Active | 34 AWG | Copper, Annealed Bare | Polyamide | 0.008" (0.20mm) | 183549.9' (55946m) | MW 35-C HY | 22 lbs (10 kg) |
|

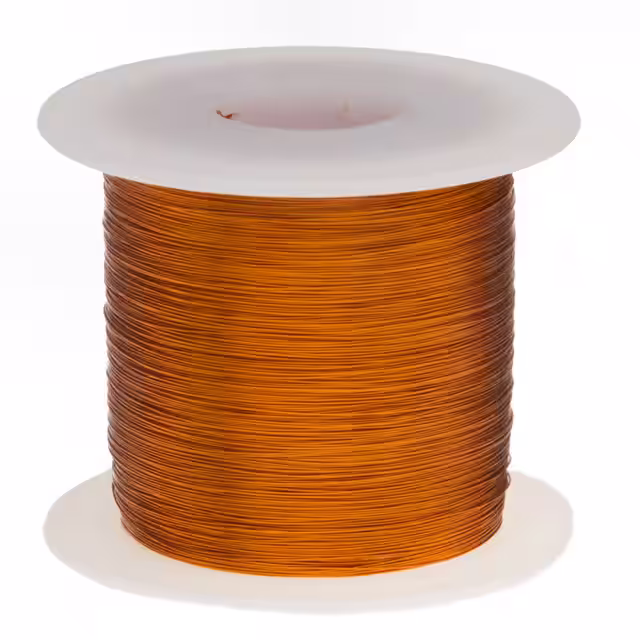

42S200P42S200P MAGNET WIRE, ENAMELED CO |
0 |
|
规格书 |
- | Bag | Active | 42 AWG | Copper, Annealed Bare | Polyester | - | 51313.0' (15640m) | MW 35-C | 1.0 lbs (453.6 g) |
|

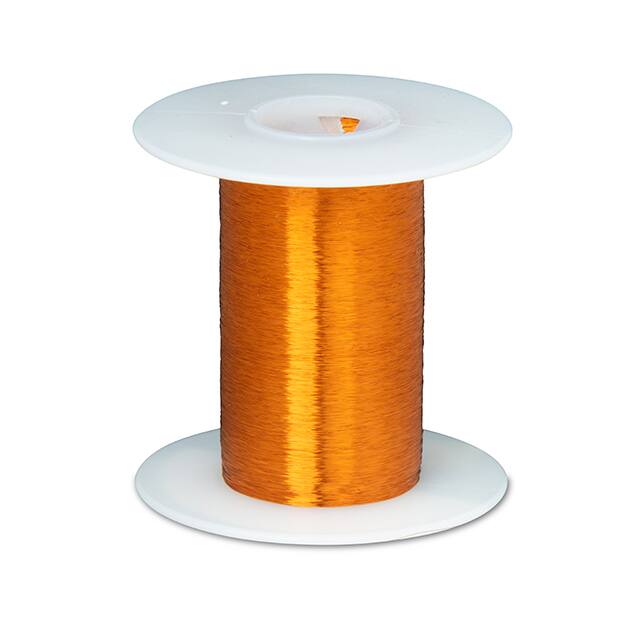

42S200P.542S200P.5 MAGNET WIRE, ENAMELED |
0 |
|
规格书 |
- | Bag | Active | 42 AWG | Copper, Annealed Bare | Polyester | - | 25656.0' (7820m) | MW 35-C | 0.5 lbs (226.8 g) |
|
42S2002.5MAGNET WIRE, 200C, 42 AWG, 2.5 L |
0 |
|
规格书 |
- | Bag | Active | 42 AWG | Copper, Annealed Bare | Polyester | - | 128283.0' (39101m) | MW 35-C | 2.5 lbs (1.1 kg) |
|
44S2002.5MAGNET WIRE, 200C, 44 AWG, 2.5 L |
0 |
|
规格书 |
- | Bag | Active | 44 AWG | Copper, Annealed Bare | Polyester | - | 199495.0' (60806m) | MW 35-C | 2.5 lbs (1.1 kg) |
|
42S200P.12542S200P.125 MAGNET WIRE, ENAMELE |
0 |
|
规格书 |
- | Bag | Active | 42 AWG | Copper, Annealed Bare | Polyester | - | 6414.0' (1955m) | MW 35-C | 0.13 lbs (56.7 g) |
|
42S200P.2542S200P.25 MAGNET WIRE, ENAMELED |
0 |
|
规格书 |
- | Bag | Active | 42 AWG | Copper, Annealed Bare | Polyester | - | 12828.0' (3910m) | MW 35-C | 0.25 lbs (113.4 g) |
