图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 颜色 | 配置 | 镜片颜色 | 镜片透明度 | 毫坎德拉等级 | 透镜样式 | 透镜尺寸 | 电压 - 正向 (Vf)(典型值) | 电流 - 测试 | 视角 | 安装类型 | 波长 - 主波长 | 波长 - 峰值 | 特性 | 等级 | 认证 | 供应商设备封装 | 尺寸 / 尺寸 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
TLBD1100B(T11)LED BLUE SMD Toshiba Semiconductor and Storage |
0 |
|
![]() 规格书 |
- | 2-PLCC | Tape & Reel (TR) | Obsolete | Blue | Standard | - | - | 70mcd | Round with Flat Top | 2.40mm Dia | 3.3V | 20mA | - | Surface Mount | 470nm | 468nm | - | - | - | SMD | 3.20mm L x 2.80mm W |
![]() |
TLBA1100B(T11)LED BLUE SMD Toshiba Semiconductor and Storage |
0 |
|
![]() 规格书 |
- | 2-PLCC | Tape & Reel (TR) | Obsolete | Blue | Standard | - | - | 7mcd | Round with Flat Top | 2.40mm Dia | 3.7V | 10mA | - | Surface Mount | 465nm | 428nm | - | - | - | SMD | 3.20mm L x 2.80mm W |
![]() |

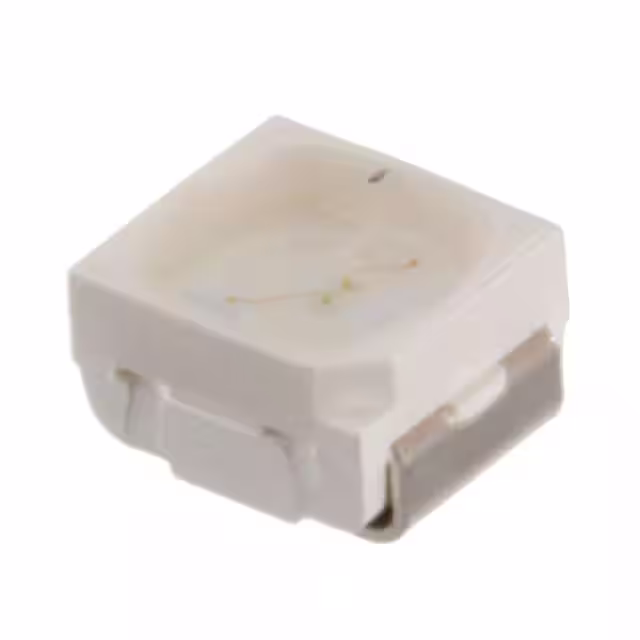

TLBF1100C(T11(OLED BLUE SMD Toshiba Semiconductor and Storage |
0 |
|
![]() 规格书 |
- | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Blue | Standard | - | - | 300mcd | Oval with Flat Top | - | 3.2V | 20mA | - | Surface Mount | 470nm | 468nm | - | - | - | SMD | 3.20mm L x 2.90mm W |
![]() |
TLBF1108(T11(OLED BLUE SMD Toshiba Semiconductor and Storage |
0 |
|
![]() 规格书 |
- | 4-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Blue | Standard | - | - | 560mcd | Oval with Flat Top | - | 3.5V | 40mA | - | Surface Mount | 470nm | 468nm | - | - | - | - | 3.20mm L x 2.90mm W |
|

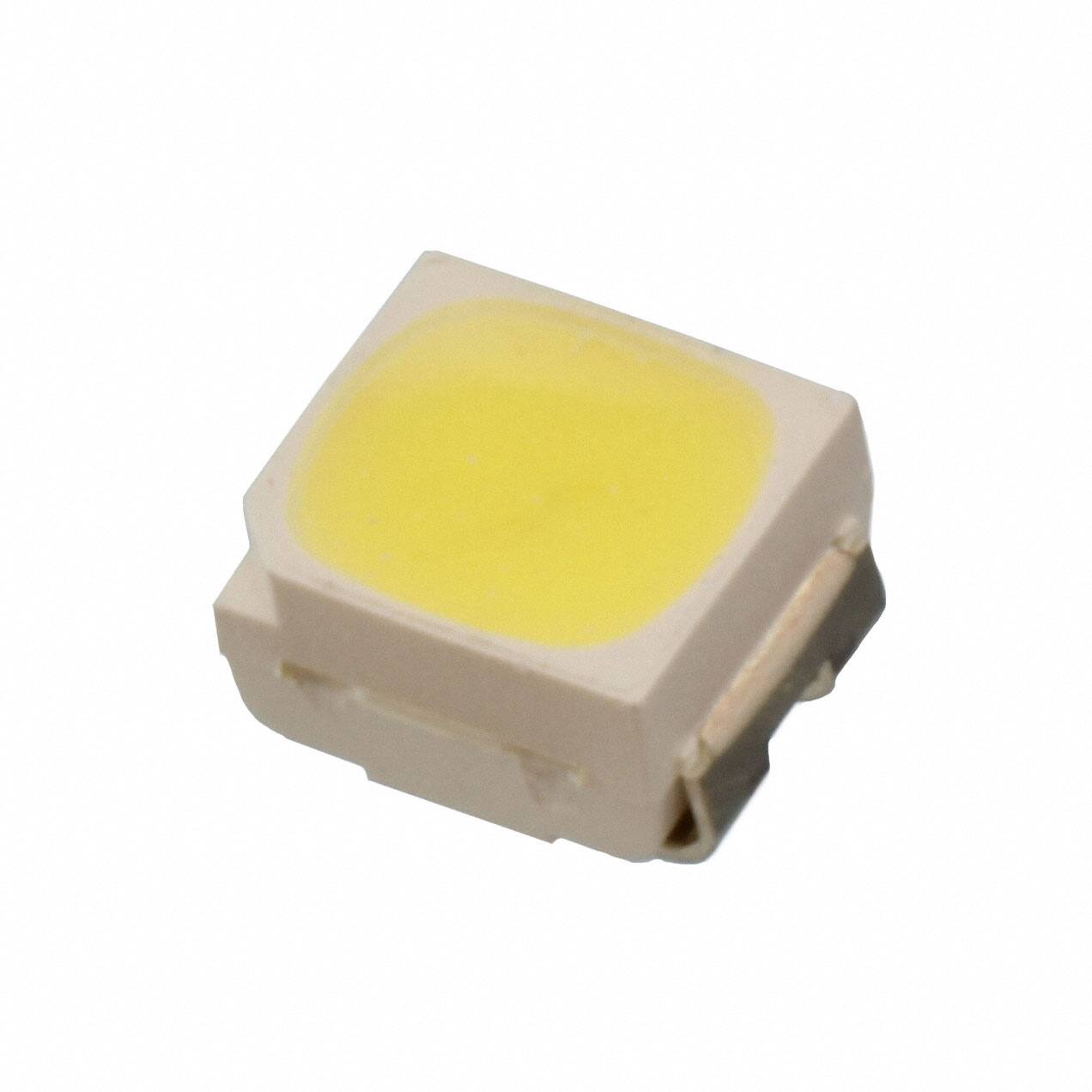

TLWNF1108(T11(OLED WHITE SMD Toshiba Semiconductor and Storage |
0 |
|
![]() 规格书 |
- | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | White | Standard | - | - | 3200mcd | Oval with Flat Top | - | 3.5V | 40mA | - | Surface Mount | - | - | - | - | - | SMD | 3.20mm L x 2.90mm W |
![]() |
TLWLF1108(T11(OLED WARM WHITE SMD Toshiba Semiconductor and Storage |
0 |
|
![]() 规格书 |
- | 4-SMD, J-Lead | Tape & Reel (TR) | Obsolete | White, Warm | Standard | - | - | 2500mcd | Oval with Flat Top | - | 3.5V | 40mA | - | Surface Mount | - | - | - | - | - | - | 3.20mm L x 2.90mm W |
![]() |
TLWF1109(T11(OLED WHITE SMD Toshiba Semiconductor and Storage |
0 |
|
![]() 规格书 |
- | 4-SMD, J-Lead | Tape & Reel (TR) | Obsolete | White | Standard | - | - | 3200mcd | Oval with Flat Top | - | 3.5V | 40mA | - | Surface Mount | - | - | - | - | - | - | 3.20mm L x 2.90mm W |
![]() |
TLWNF1109(T11(OLED WHITE SMD Toshiba Semiconductor and Storage |
0 |
|
![]() 规格书 |
- | 4-SMD, J-Lead | Tape & Reel (TR) | Obsolete | White | Standard | - | - | 3200mcd | Oval with Flat Top | - | 3.5V | 40mA | - | Surface Mount | - | - | - | - | - | - | 3.20mm L x 2.90mm W |
|

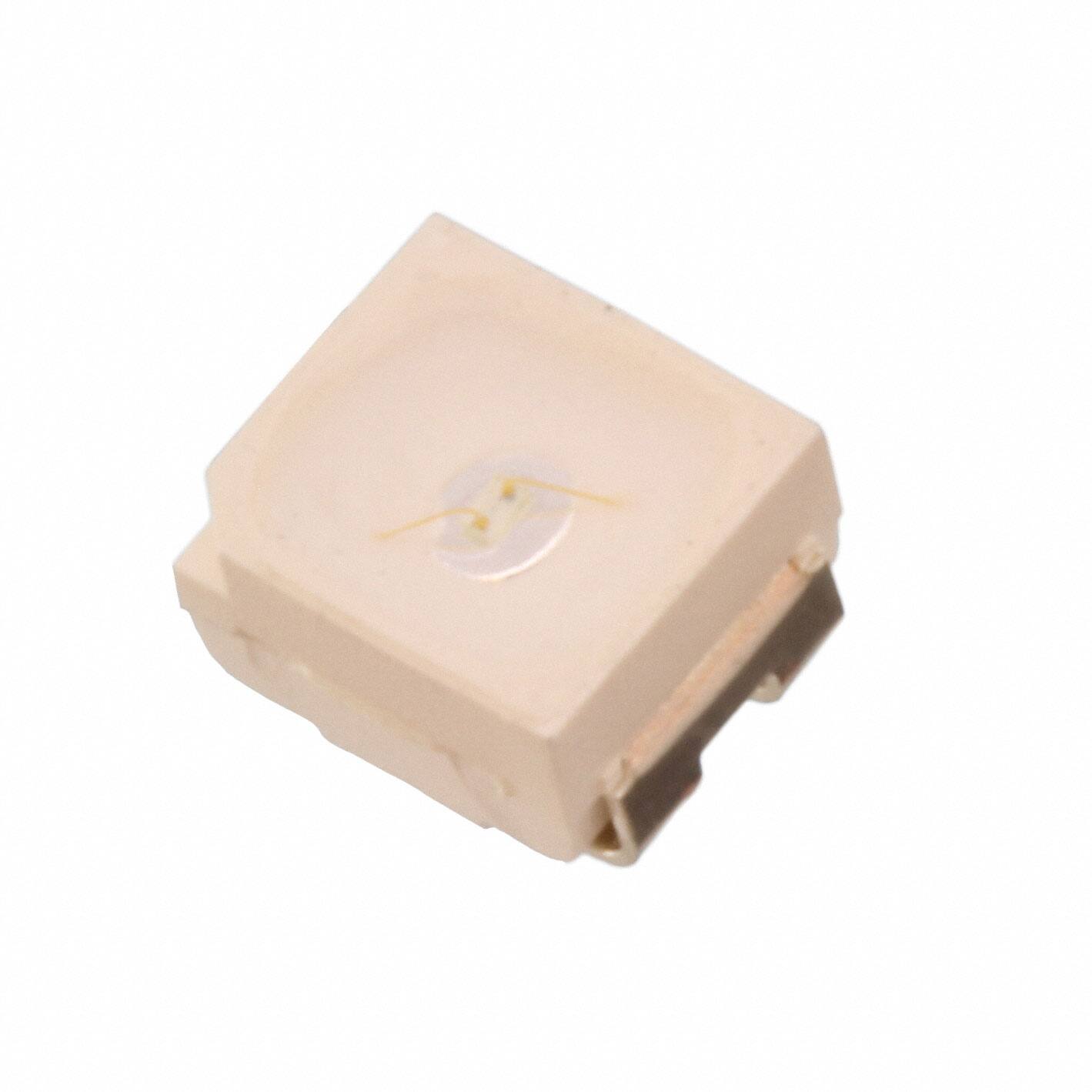

TLEGF1108(T11(OLED GREEN SMD Toshiba Semiconductor and Storage |
0 |
|
![]() 规格书 |
- | 4-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Green | Standard | - | - | 2000mcd | Oval with Flat Top | - | 3.5V | 40mA | - | Surface Mount | 528nm | 518nm | - | - | - | - | 3.20mm L x 2.90mm W |
|

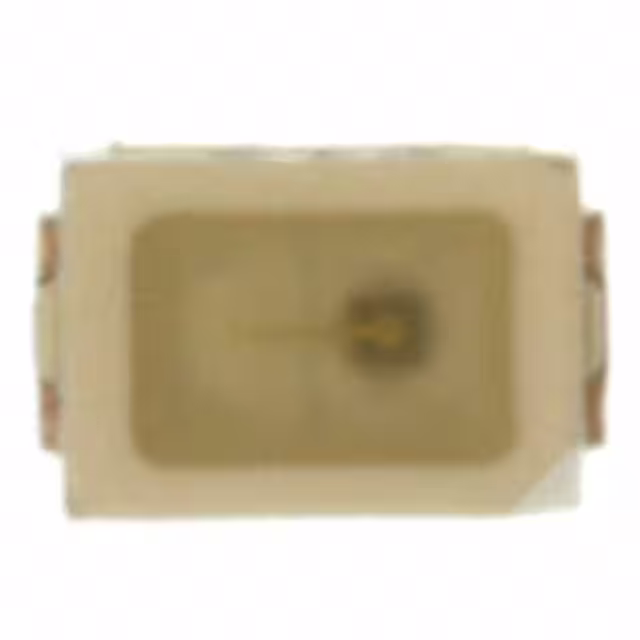

TLEGD1060(T18)LED GREEN 2MINIPLCC SMD Toshiba Semiconductor and Storage |
0 |
|
![]() 规格书 |
- | 2-Mini PLCC | Tape & Reel (TR) | Obsolete | Green | Standard | - | - | 150mcd | Rectangle with Flat Top | - | 3.3V | 20mA | - | Surface Mount | 528nm | 518nm | - | - | - | 2-MiniPLCC | 2.00mm L x 1.40mm W |
