LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AB-FA02430-19712-8A1LED MOD AB-FA WH LNR STRP 3000K American Bright Optoelectronics Corporation |
1 |
|
规格书 |
AB-FA | Bag | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 760lm | 330mA | 25°C | 24V | 96 lm/W | - | 80 | 120° | IP20 | 5000.00mm L x 10.00mm W | 1.60mm | - | Flat |
|
AB-GES-C08115W403T2LED ENG AB-GES NEUT WH RND 4000K American Bright Optoelectronics Corporation |
0 |
|
规格书 |
AB-GES | Bag | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1300lm (Typ) | - | 25°C | 120VAC | - | - | 80 | - | - | 80.00mm Dia | - | - | Flat |
|
AB-FC02430-19712-8A1LED MOD AB-FC WH LNR STRP 3000K American Bright Optoelectronics Corporation |
0 |
|
规格书 |
AB-FC | Bag | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 760lm | 330mA | - | 24V | 96 lm/W | - | 80 | 120° | IP65 | 5000.00mm L x 10.00mm W | 2.50mm | - | Flat |
|
AB-FD01240-19712-8A1LED MOD AB-FD WH LNR STRP 4000K American Bright Optoelectronics Corporation |
1 |
|
规格书 |
AB-FD | Bag | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 720lm | 660mA | - | 12V | 91 lm/W | - | 80 | 120° | IP68 | 5000.00mm L x 12.50mm W | 6.50mm | - | Flat |
|
|
AB-FD02430-19712-8A1LED MOD AB-FD WH LNR STRP 3000K American Bright Optoelectronics Corporation |
0 |
|
规格书 |
AB-FD | Bag | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 720lm | 330mA | - | 24V | 91 lm/W | - | 80 | 120° | IP68 | 5000.00mm L x 12.50mm W | 6.50mm | - | Flat |
|

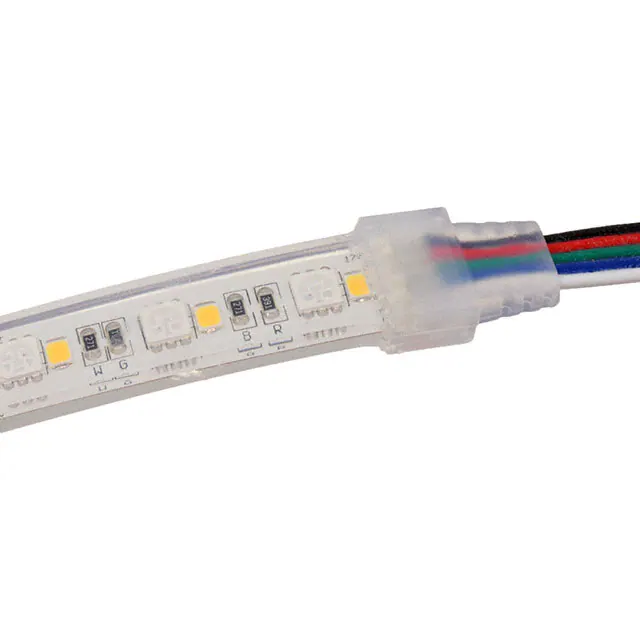

AB-FD01208-19712-8A1LED MOD AB-FD RGBW LNR STRIP American Bright Optoelectronics Corporation |
0 |
|
规格书 |
AB-FD | Bag | Active | LED Module | Red, Green, Blue, White (RGBW) | - | 625nm Red, 528nm Green, 470nm Blue | Linear Light Strip, Flexible | 81lm Red, 223lm Green, 50lm Blue, 334lm White | 1.18A Red, 1.18A Green, 1.18A Blue, 1.18A White | - | 12V | 6 lm/W Red, 16 lm/W Green, 4 lm/W Blue, 24 lm/W White | - | 80 | 120° | IP68 | 5000.00mm L x 14.50mm W | 6.50mm | - | Flat |
|
AB-FB01240-19712-8A1LED MOD AB-FB WH LNR STRP 4000K American Bright Optoelectronics Corporation |
0 |
|
规格书 |
AB-FB | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip, Flexible | 840lm | 870mA | - | 12V | 80 lm/W | - | 80 | 120° | IP68 | 5000.00mm L x 15.00mm W | 14.00mm | - | Flat |
|
AB-FF01250-19712-8A1LED MOD AB-FF LNR STRIP American Bright Optoelectronics Corporation |
0 |
|
规格书 |
AB-FF | Tray | Active | LED Module | - | - | - | Linear Light Strip, Flexible | - | - | - | - | - | - | - | 90° | IP68 | 5000.00mm L x 22.00mm W | 11.80mm | - | Flat |
|
|
AB-FB01230-19712-8A1LED MOD AB-FB WH LNR STRP 3000K American Bright Optoelectronics Corporation |
0 |
|
规格书 |
AB-FB | Tray | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip, Flexible | 702lm | 870mA | - | 12V | 67 lm/W | - | 80 | 120° | IP68 | 5000.00mm L x 15.00mm W | 14.00mm | - | Flat |
|

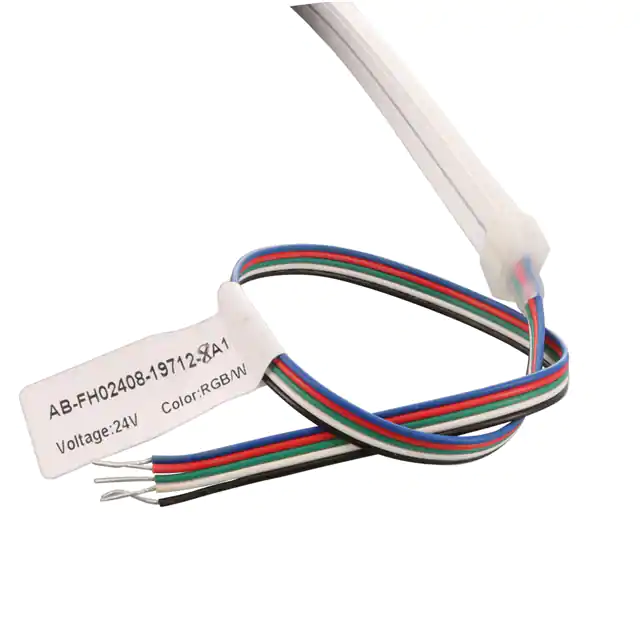

AB-FH02408-19712-8A1LED MOD AB-FH RGBW LNR STRIP American Bright Optoelectronics Corporation |
0 |
|
规格书 |
AB-FH | Bag | Active | LED Module | Red, Green, Blue, White (RGBW) | - | - | Linear Light Strip, Flexible | - | - | 25°C | 24V | - | - | 80 | - | IP68 | 5000.00mm L x 12.00mm W | 6.00mm | - | Flat |
