上传BOM
LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LPH1-02C24-4080-00LED MOD XHP70.2 WH LNR STR 4000K New Energy |
0 |
|
规格书 |
XHP70.2 | Tray | Active | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 3660lm (Typ) | 1.05A | 85°C | 22.4V | 156 lm/W | 2.4A | 80 | - | - | 93.98mm L x 32.99mm W | - | - | Domed |
|
|
LPH1-02C24-5770-00LED MOD XHP70.2 LNR STRP 5700K New Energy |
0 |
|
规格书 |
XHP70.2 | Tray | Active | LED Module | White, Cool | 5700K | - | Linear Light Strip | 3660lm (Typ) | 1.05A | 85°C | 22.4V | 156 lm/W | 2.4A | 70 | - | - | 93.98mm L x 32.99mm W | - | - | Domed |
|
LSS1-04C22-3070-00LED MOD XHP50.2 WM WHT SQ 3000K New Energy |
0 |
|
规格书 |
XHP50.2 | Tray | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Square | 4160lm (Typ) | 700mA | 85°C | 44.8V | 132 lm/W | 1.5A | 70 | - | - | 70.00mm L x 70.00mm W | - | - | Domed |
|
|
LSS1-04C22-2780-00LED MOD XHP50.2 WM WHT SQ 2700K New Energy |
0 |
|
规格书 |
XHP50.2 | Tray | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3600lm (Typ) | 700mA | 85°C | 44.8V | 115 lm/W | 1.5A | 80 | - | - | 70.00mm L x 70.00mm W | - | - | Domed |
|

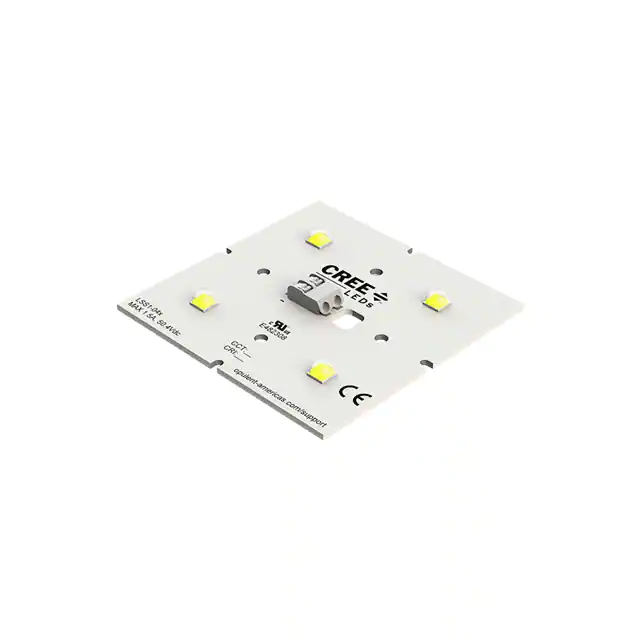

LSS1-04C22-2790-00LED MOD XHP50.2 WM WHT SQ 2700K New Energy |
0 |
|
规格书 |
XHP50.2 | Tray | Active | LED Module | White, Warm | 2700K | - | Square | - | 700mA | 85°C | - | - | - | 90 | - | - | 70.00mm L x 70.00mm W | - | - | Domed |
|
|
LSS1-04C22-3080-00LED MOD XHP50.2 WM WHT SQ 3000K New Energy |
0 |
|
规格书 |
XHP50.2 | Tray | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Square | 4160lm | 700mA | 85°C | 44.8V | 132 lm/W | 1.5A | 80 | - | - | 170.18mm L x 32.99mm W | 1.52mm | - | Domed |
|
LSR4-04C48-2790-00L2 BOARD, XHP35.2, 2X2 SMALL, WH New Energy |
0 |
|
规格书 |
XHP35.2 | Tray | Active | LED Module | White, Warm | 2700K | - | Square | 1640lm (Typ) | 1.05A | 85°C | 44.8V | 105 lm/W | 1.05A | 90 | - | IP67 | 37.99mm L x 37.99mm W | - | - | Flat |
|
|
LPH1-02C24-5780-00LED MODULE 5700K LINEAR New Energy |
0 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSH1-04C22-2780-00LED MOD XHP50.2 WH LNR STR 2700K New Energy |
0 |
|
规格书 |
XHP50.2 | Tray | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 3600lm (Typ) | 700mA | 85°C | 44.8V | 115 lm/W | 1.5A | 80 | - | - | 170.18mm L x 32.99mm W | - | - | Domed |
|
|
LSH1-04C22-2790-00LED MOD XHP50.2 WH LNR STR 2700K New Energy |
0 |
|
规格书 |
XHP50.2 | Tray | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 3600lm | 700mA | 85°C | 44.8V | 115 lm/W | 1.5A | 90 | - | - | 170.18mm L x 32.99mm W | 1.52mm | - | Domed |
