LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

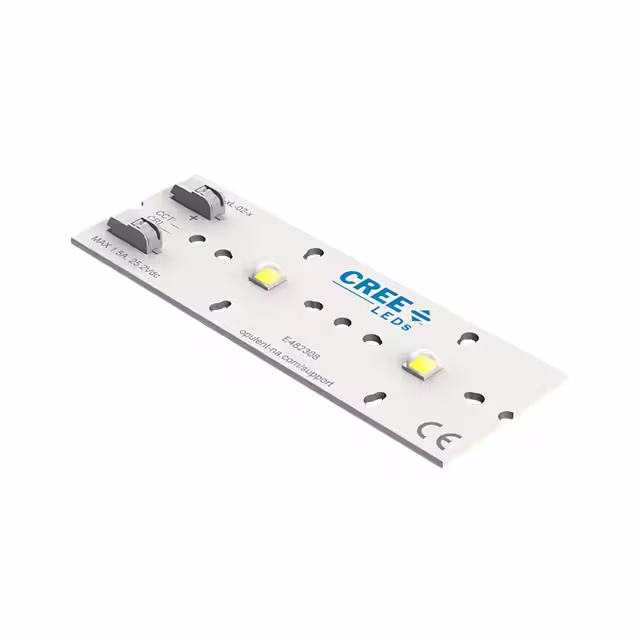

XHP50A-0L-02-0D0HH227GLED MOD XHP50A WH LNR STRP 2700K New Energy |
0 |
|
规格书 |
XHP50A | Tray | Not For New Designs | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Linear Light Strip | 1800lm (Typ) | 700mA | 85°C | 23V | 112 lm/W | 1.5A | 80 | - | - | 93.98mm L x 33.02mm W | - | - | Domed |
|
|
XHP50A-0L-02-0D0BH430ELED MOD XHP50A WH LNR STRP 3000K New Energy |
0 |
|
规格书 |
XHP50A | Tray | Not For New Designs | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Linear Light Strip | 1940lm (Typ) | 700mA | 85°C | 23V | 121 lm/W | 1.5A | 70 | - | - | 93.98mm L x 33.02mm W | - | - | Domed |
|
|
XHP50A-0L-02-0D0HH430GLED MOD XHP50 LNR LGT STRIP New Energy |
0 |
|
规格书 |
XHP50 | Tray | Not For New Designs | LED Module | - | - | - | Linear Light Strip | - | 700mA | 85°C | - | - | - | 80 | - | - | - | - | - | Domed |
|
|
XHP50A-0L-02-0D0UF427GLED MOD XHP50 LNR LGT STRIP New Energy |
0 |
|
规格书 |
XHP50 | Tray | Not For New Designs | LED Module | - | - | - | Linear Light Strip | - | 700mA | 85°C | - | - | - | 90 | - | - | - | - | - | Domed |
|
LSR1-04C32-2780-00LED MOD XP-G3 WM WH RECT 2700K New Energy |
0 |
|
规格书 |
XP-G3 | Tray | Active | LED Module | White, Warm | 2700K 5-Step MacAdam Ellipse | - | Rectangle | 556lm | 350mA | 85°C | 10.92V | 145 lm/W | 2A | 80 | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
LSR1-04C32-3070-00LED MOD XP-G3 WM WHT RECT 3000K New Energy |
0 |
|
规格书 |
XP-G3 | Tray | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | 624lm | 350mA | 85°C | 10.92V | 163 lm/W | 2A | 70 | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
LSR1-04C32-3080-00LED MOD XP-G3 WM WHT RECT 3000K New Energy |
0 |
|
规格书 |
XP-G3 | Tray | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | 556lm | 350mA | 85°C | 10.92V | 145 lm/W | 2A | 80 | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
LSR1-04C32-5080-00LED MOD XP-G3 CL WHT RECT 5000K New Energy |
0 |
|
规格书 |
XP-G3 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 624lm | 350mA | 85°C | 10.92V | 163 lm/W | 2A | 80 | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
LSR1-04C32-5770-00LED MOD XP-G3 CL WHT RECT 5700K New Energy |
0 |
|
规格书 |
XP-G3 | Tray | Active | LED Module | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Rectangle | 656lm | 350mA | 85°C | 10.92V | 171 lm/W | 2A | 70 | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
LSR1-04C32-5780-00LED MOD XP-G3 CL WHT RECT 5000K New Energy |
0 |
|
规格书 |
XP-G3 | Tray | Active | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | 624lm | 350mA | 85°C | 10.92V | 163 lm/W | 2A | 80 | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
