LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LE A P2W 01-SXTX-1-0-F00-T01LED MOD OSRAM OSTAR AMBER RECT |
0 |
|
规格书 |
OSRAM OSTAR | Tray | Obsolete | LED Module | Amber | - | 617nm (612nm ~ 624nm) | Rectangle | 2700lm (Typ) | 12A | 25°C | 3.35V | 67 lm/W | - | - | 120° | - | 27.00mm L x 15.50mm W | 2.10mm | - | Flat |
|

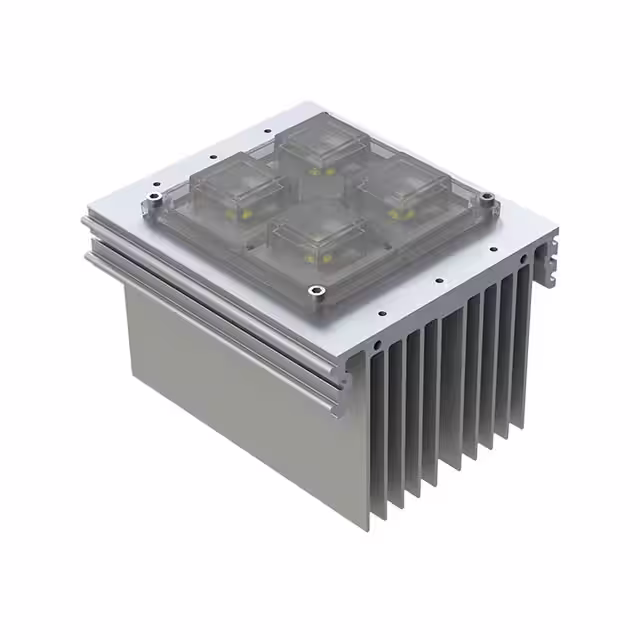

MP22T1-C24-5070-DWC-1-00LED MOD XHP70.2 CL WHT SQ 5000K |
0 |
|
规格书 |
XHP70.2 | Tray | Active | LED Module | White, Cool | 5000K | - | Square | 5050lm (Typ) | 700mA | 25°C | 44.6V | 162 lm/W | - | 70 | - | IP67 | 127.00mm L x 127.00mm W | 96.52mm | - | Flat |
|
|
MP26T1-C19-2780-T2-2-00LED MOD XHP35 WM WH RECT 2700K |
0 |
|
规格书 |
XHP35 | Bulk | Active | LED Module | White, Warm | 2700K | - | Rectangle | - | - | 25°C | - | - | - | 80 | - | IP67 | 203.20mm L x 111.00mm W | 93.98mm | - | Domed |
|
|
MP26T1-C19-4080-DWC-2-00LED MOD XHP35 WHT RECT 4000K |
0 |
|
规格书 |
XHP35 | Bulk | Active | LED Module | White, Neutral | 4000K | - | Rectangle | - | - | 25°C | - | - | - | 80 | - | IP67 | 203.20mm L x 111.00mm W | 93.98mm | - | Domed |
|
|
MP26T1-C19-4080-ME-1-00LED MOD XHP35 WHT RECT 4000K |
0 |
|
规格书 |
XHP35 | Bulk | Active | LED Module | White, Neutral | 4000K | - | Rectangle | - | - | 25°C | - | - | - | 80 | - | IP67 | 203.20mm L x 111.00mm W | 93.98mm | - | Domed |
|

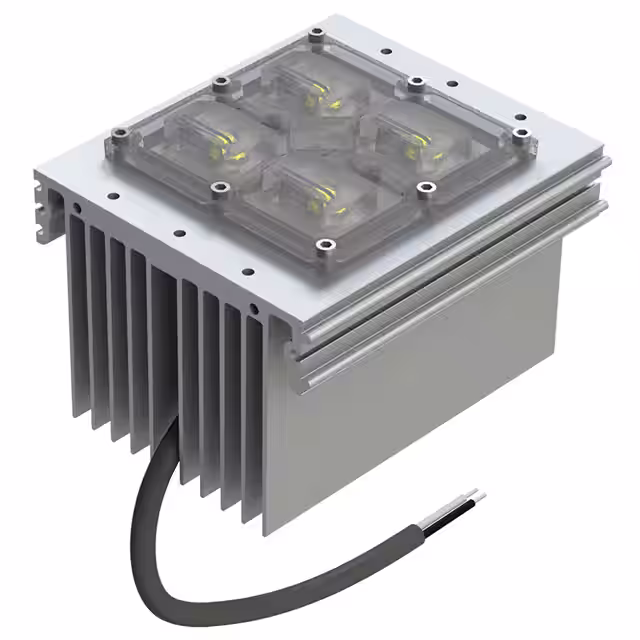

MS22T1-C22-5770-M-1-00LED MOD XHP50.2 CL WHT SQ 5700K |
0 |
|
规格书 |
XHP50.2 | Bulk | Active | LED Module | White, Cool | 5700K | - | Square | 4500lm (Typ) | 700mA | 25°C | 45.5V | 141 lm/W | - | 70 | - | IP67 | 127.00mm L x 127.00mm W | 96.27mm | - | Domed |
|

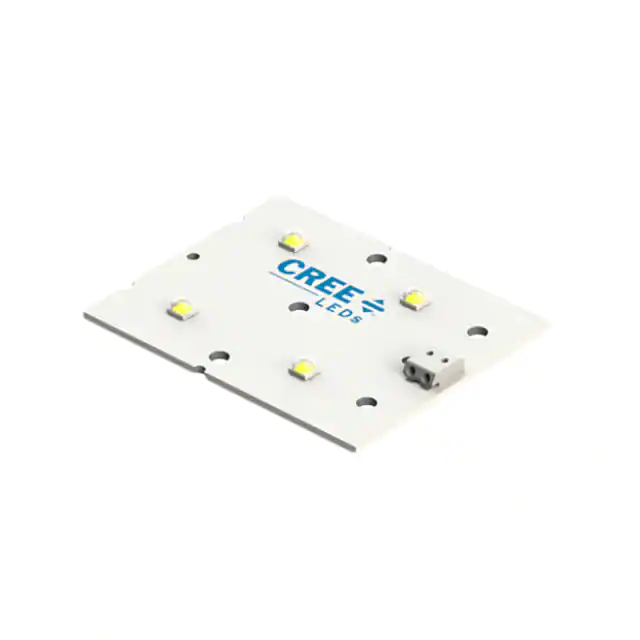

XHP35A-0R-04-0D0HD230ELED MOD XHP35A WM WH RECT 3000K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | - | 350mA | 85°C | 45.2V | - | 1.05A | - | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-04-0D0HD440ELED MOD XHP35A WHT RECT 4000K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | - | 350mA | 85°C | 45.2V | - | 1.05A | - | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-04-0D0HD450ELED MOD XHP35A CL WH RECT 5000K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | - | 350mA | 85°C | 45.2V | - | 1.05A | - | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-04-0D0UB427ELED MOD XHP35A WM WH RECT 2700K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 2700K 5-Step MacAdam Ellipse | - | Rectangle | - | 350mA | 85°C | 45.2V | - | 1.05A | - | - | - | 59.59mm L x 45.01mm W | 1.52mm | - | Flat |
|

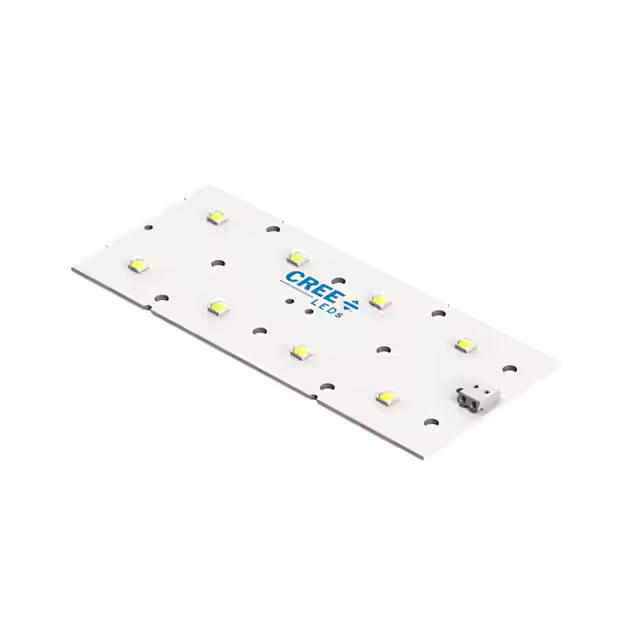

XHP35A-0R-08-0D0HD230ELED MOD XHP35A WM WH RECT 3000K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | - | 700mA | 85°C | 45.2V | - | 2.1A | - | - | - | 110.39mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-08-0D0HD440ELED MOD XHP35A WHT RECT 4000K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | - | 700mA | 85°C | 45.2V | - | 2.1A | - | - | - | 110.39mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-08-0D0HD450ELED MOD XHP35A CL WH RECT 5000K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | - | 700mA | 85°C | 45.2V | - | 2.1A | - | - | - | 110.39mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-08-0D0HD457ELED MOD XHP35A CL WH RECT 5700K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Rectangle | - | 700mA | 85°C | 45.2V | - | 2.1A | - | - | - | 110.39mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-08-0D0UB427ELED MOD XHP35A WM WH RECT 2700K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 2700K 5-Step MacAdam Ellipse | - | Rectangle | - | 700mA | 85°C | 45.2V | - | 2.1A | - | - | - | 110.39mm L x 45.01mm W | 1.52mm | - | Flat |
|

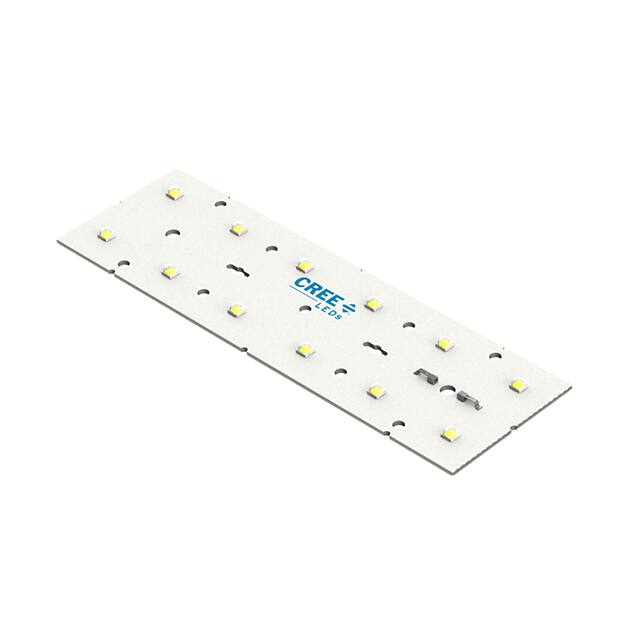

XHP35A-0R-12-0D0HD230ELED MOD XHP35A WM WH RECT 3000K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Rectangle | - | 1.05A | 85°C | 45.2V | - | 3.15A | - | - | - | 146.61mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-12-0D0HD440ELED MOD XHP35A WHT RECT 4000K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Neutral | 4000K 5-Step MacAdam Ellipse | - | Rectangle | - | 1.05A | 85°C | 45.2V | - | 3.15A | - | - | - | 146.61mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-12-0D0HD450ELED MOD XHP35A CL WH RECT 5000K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Rectangle | - | 1.05A | 85°C | 45.2V | - | 3.15A | - | - | - | 146.61mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-12-0D0HD457ELED MOD XHP35A CL WH RECT 5700K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Cool | 5700K 5-Step MacAdam Ellipse | - | Rectangle | - | 1.05A | 85°C | 45.2V | - | 3.15A | - | - | - | 146.61mm L x 45.01mm W | 1.52mm | - | Flat |
|
|
XHP35A-0R-12-0D0UB427ELED MOD XHP35A WM WH RECT 2700K |
0 |
|
规格书 |
XHP35A | Tray | Obsolete | LED Module | White, Warm | 2700K 5-Step MacAdam Ellipse | - | Rectangle | - | 1.05A | 85°C | 45.2V | - | 3.15A | - | - | - | 146.61mm L x 45.01mm W | 1.52mm | - | Flat |
