LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

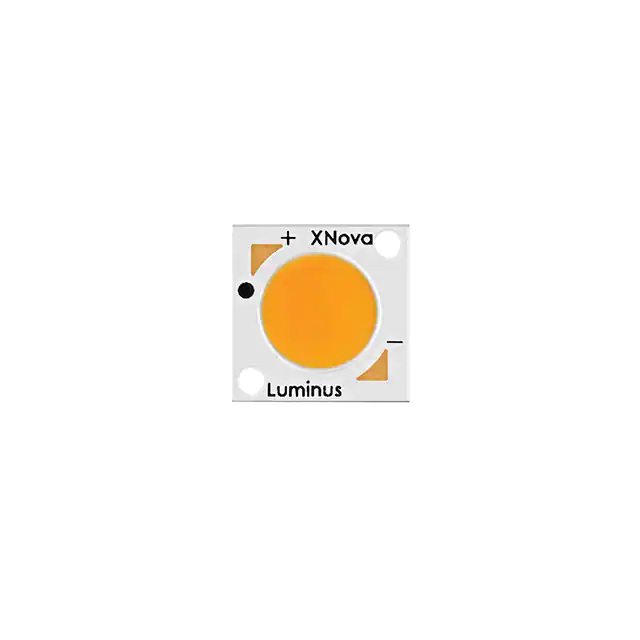

CXM-7-40-90-9-AA00-F2-3LED COB CXM-7 NEUT WHT SQU 4000K Luminus Devices Inc. |
0 |
|
规格书 |
CXM-7 | Tray | Not For New Designs | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 600lm (Typ) | 640mA | 85°C | 8.8V | 107 lm/W | 1.4A | 90 | 120° | - | 13.00mm L x 13.00mm W | 1.37mm | 7.50mm Dia | Flat |
|
|
CXM-7-50-80-12-AA00-F2-5LED COB CXM-7 COOL WHT SQU 5000K Luminus Devices Inc. |
0 |
|
- |
CXM-7 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 710lm (Typ) | - | 85°C | 12V | - | - | 80 | 120° | - | 13.00mm L x 13.00mm W | 1.37mm | 7.50mm Dia | Flat |
|
|
CXM-7-50-80-18-AA00-F2-5LED COB CXM-7 COOL WHT SQU 5000K Luminus Devices Inc. |
0 |
|
规格书 |
CXM-7 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 710lm (Typ) | 320mA | 85°C | 17.5V | 127 lm/W | 700mA | 80 | 120° | - | 13.00mm L x 13.00mm W | 1.37mm | 7.50mm Dia | Flat |
|
|
CXM-7-50-80-9-AA00-F2-5LED COB CXM-7 COOL WHT SQU 5000K Luminus Devices Inc. |
0 |
|
规格书 |
CXM-7 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 710lm (Typ) | 640mA | 85°C | 9V | 123 lm/W | 350mA | 80 | 120° | - | 13.00mm L x 13.00mm W | 1.37mm | 7.50mm Dia | Flat |
|
|
CXM-7-65-80-18-AA00-F2-5LED COB CXM-7 COOL WHT SQU 6500K Luminus Devices Inc. |
0 |
|
规格书 |
CXM-7 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 710lm (Typ) | 320mA | 85°C | 17.5V | 127 lm/W | 700mA | 80 | 120° | - | 13.00mm L x 13.00mm W | 1.37mm | 7.50mm Dia | Flat |
|
|
CXM-7-65-80-36-AA00-F2-5LED COB CXM-7 COOL WHT SQU 6500K Luminus Devices Inc. |
0 |
|
规格书 |
CXM-7 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 710lm (Typ) | 160mA | 85°C | 35V | 127 lm/W | 350mA | 80 | 120° | - | 13.00mm L x 13.00mm W | 1.37mm | 7.50mm Dia | Flat |
|
|
CXM-7-65-80-9-AA00-F2-5LED COB CXM-7 COOL WHT SQU 6500K Luminus Devices Inc. |
0 |
|
规格书 |
CXM-7 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 6500K 5-Step MacAdam Ellipse | - | Square | 710lm (Typ) | 640mA | 85°C | 8.8V | 126 lm/W | 1.4A | 80 | 120° | - | 13.00mm L x 13.00mm W | 1.37mm | 7.50mm Dia | Flat |
|
|
CXM-7-50-90-36-AA00-F2-5LED COB CXM-7 COOL WHT SQU 5000K Luminus Devices Inc. |
0 |
|
规格书 |
CXM-7 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | 605lm (Typ) | 160mA | 85°C | 35V | 108 lm/W | 350mA | 90 | 120° | - | 13.00mm L x 13.00mm W | 1.37mm | 7.50mm Dia | Flat |
|
CHM-6-50-90-36-AA00-F2-3LED COB CHM6 COOL WHT RECT 5000K Luminus Devices Inc. |
0 |
|
规格书 |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Rectangle | 585lm (Typ) | 160mA | 85°C | 35V | 104 lm/W | 320mA | 90 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CXM-7-50-90-18-AA00-F2-5LED COB CXM-7 COOL WHT SQU 5000K Luminus Devices Inc. |
0 |
|
规格书 |
CXM-7 | Tray | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 5-Step MacAdam Ellipse | - | Square | - | 320mA | 85°C | 17.5V | - | 640mA | 90 | 120° | - | 13.00mm L x 13.00mm W | 1.37mm | 7.50mm Dia | Flat |
