LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXM-4-30-90-18-AC44-F5-3GENERATION 4 STANDARD COB PRODUC Luminus Devices Inc. |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CXM-4-35-95-36-TE50-F6-3LUX SERIES COB Luminus Devices Inc. |
0 |
|
规格书 |
CXM-4 Gen5 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 470lm (Typ) | 120mA | 85°C | 33.3V | 118 lm/W | 220mA | 95 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|
|
CHM-4-27-90-18-BH42-F5-3GENERATION 4 HIGH DENSITY PRODUC Luminus Devices Inc. |
0 |
|
规格书 |
CHM-6 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 615lm (Typ) | 400mA | 85°C | 17.6V | 87 lm/W | 1A | 90 | 120° | - | 13.50mm L x 13.50mm W | 1.37mm | 4.50mm Dia | Flat |
|

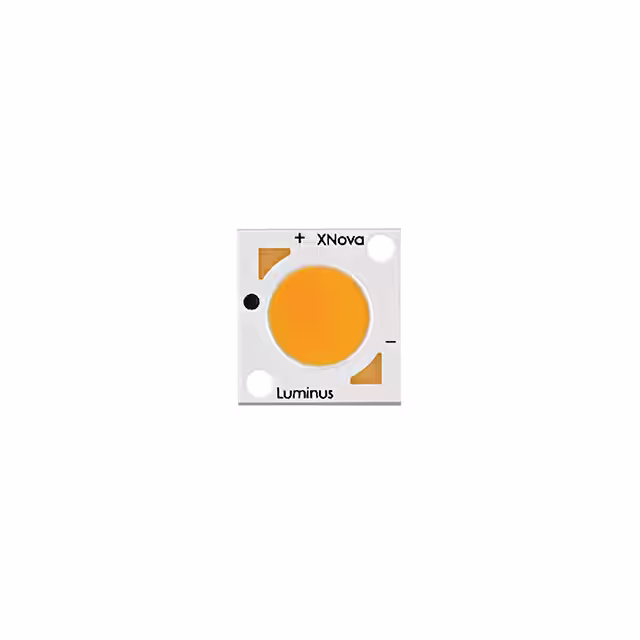

CHM-6-27-80-36-AA00-F2-3LED COB CHM6 WARM WHT RECT 2700K Luminus Devices Inc. |
0 |
|
规格书 |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 580lm (Typ) | 160mA | 85°C | 35V | 104 lm/W | 320mA | 80 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-27-80-9-AA00-F2-3LED COB CHM6 WARM WHT RECT 2700K Luminus Devices Inc. |
0 |
|
规格书 |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 580lm (Typ) | 640mA | 85°C | 9V | 104 lm/W | 1.28A | 80 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-27-90-36-AA00-F2-3LED COB CHM6 WARM WHT RECT 2700K Luminus Devices Inc. |
0 |
|
规格书 |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 450lm (Typ) | 160mA | 85°C | 35V | 80 lm/W | 320mA | 90 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-27-90-9-AA00-F2-3LED COB CHM6 WARM WHT RECT 2700K Luminus Devices Inc. |
0 |
|
规格书 |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 450lm (Typ) | 640mA | 85°C | 9V | 78 lm/W | 1.28A | 90 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-30-80-9-AA00-F2-3LED COB CHM6 WM WHT RECT 3000K Luminus Devices Inc. |
0 |
|
规格书 |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 615lm (Typ) | 640mA | 85°C | 9V | 107 lm/W | 1.28A | 80 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-30-90-36-AA00-F2-3LED COB CHM6 WM WHT RECT 3000K Luminus Devices Inc. |
0 |
|
规格书 |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 520lm (Typ) | 160mA | 85°C | 35V | 93 lm/W | 320mA | 90 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
|
|
CHM-6-30-90-9-AA00-F2-3LED COB CHM6 WM WHT RECT 3000K Luminus Devices Inc. |
0 |
|
规格书 |
CHM-6 | Tray | Not For New Designs | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 520lm (Typ) | 640mA | 85°C | 9V | 90 lm/W | 1.28A | 90 | 120° | - | 12.00mm L x 13.00mm W | 1.37mm | 6.30mm Dia | Flat |
