上传BOM
LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMJE3V12W1P3-CALED ENG ACRICH2 WHT ROUND 5000K |
0 |
|
规格书 |
Acrich2 | Tray | Obsolete | LED Engine | White, Cool | 5000K | - | Round | 1360lm (Typ) | - | 25°C | - | 100 lm/W | - | 80 | 120° | - | 50.00mm Dia | 2.50mm | - | Flat |
|
|
SMJE3V08W1P3-HALED ENG ACRICH2 WM WH RND 2700K |
0 |
|
规格书 |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 2700K | - | Round | 650lm (Typ) | - | 25°C | - | 67 lm/W | - | 80 | 120° | - | 46.00mm Dia | 2.50mm | - | Flat |
|
SMJE2V08W1P3-HALED ENG ACRICH2 WM WH RND 2700K |
0 |
|
规格书 |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 2700K | - | Round | 650lm (Typ) | - | 25°C | - | 67 lm/W | - | 80 | 120° | - | 46.00mm Dia | 2.50mm | - | Flat |
|
|
SMJE2V08W1P3-CALED ENG ACRICH2 WHT ROUND 5000K |
0 |
|
规格书 |
Acrich2 | Tray | Obsolete | LED Engine | White, Cool | 5000K | - | Round | 910lm (Typ) | - | 25°C | - | 100 lm/W | - | 80 | 120° | - | 46.00mm Dia | 2.50mm | - | Flat |
|
|
SMJE3V04W1P3-HALED ENG ACRICH2 WM WH RND 2700K |
0 |
|
规格书 |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 2700K | - | Round | 330lm (Typ) | - | 25°C | - | 67 lm/W | - | 80 | 120° | - | 33.00mm Dia | 2.50mm | - | Flat |
|
SMJE2V04W1P3-CALED ENG ACRICH2 WHT ROUND 5000K |
0 |
|
规格书 |
Acrich2 | Tray | Obsolete | LED Engine | White, Cool | 5000K | - | Round | 420lm (Typ) | - | 25°C | - | 100 lm/W | - | 80 | 120° | - | 33.00mm Dia | 2.50mm | - | Flat |
|

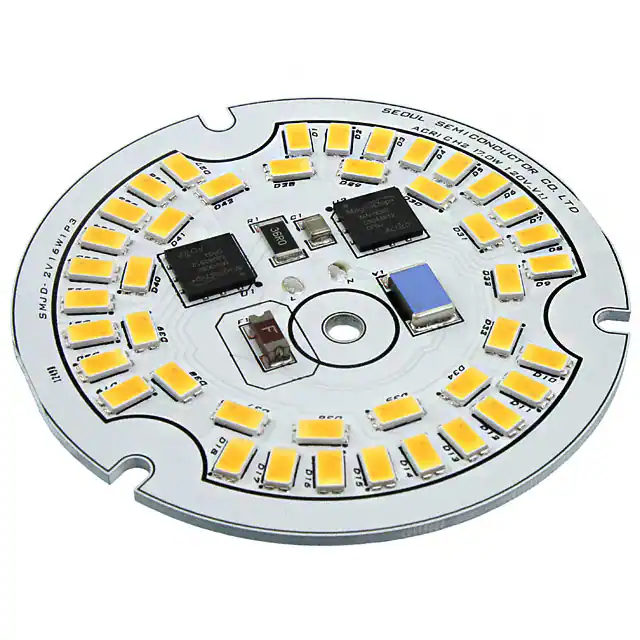

SMJD2V16W1P3-GALED ENG ACRICH2 WM WH RND 3000K |
0 |
|
规格书 |
Acrich2 | Tray | Obsolete | LED Engine | White, Warm | 3000K | - | Round | 1300lm (Typ) | - | 25°C | - | 67 lm/W | - | 80 | 120° | - | 70.00mm Dia | - | - | Flat |
|

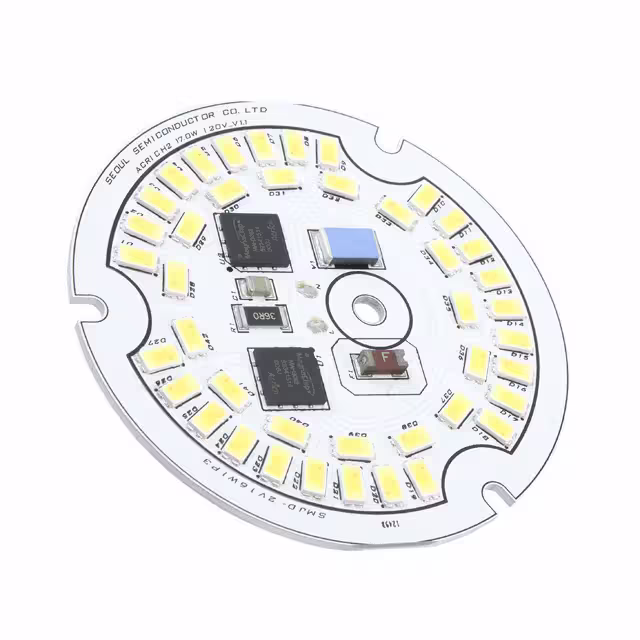

SMJD2V16W1P3-CALED ENG ACRICH2 WHT ROUND 5000K |
0 |
|
规格书 |
Acrich2 | Tray | Obsolete | LED Engine | White, Cool | 5000K | - | Round | 1780lm (Typ) | - | 25°C | - | 100 lm/W | - | 80 | 120° | - | 70.00mm Dia | - | - | Flat |
|

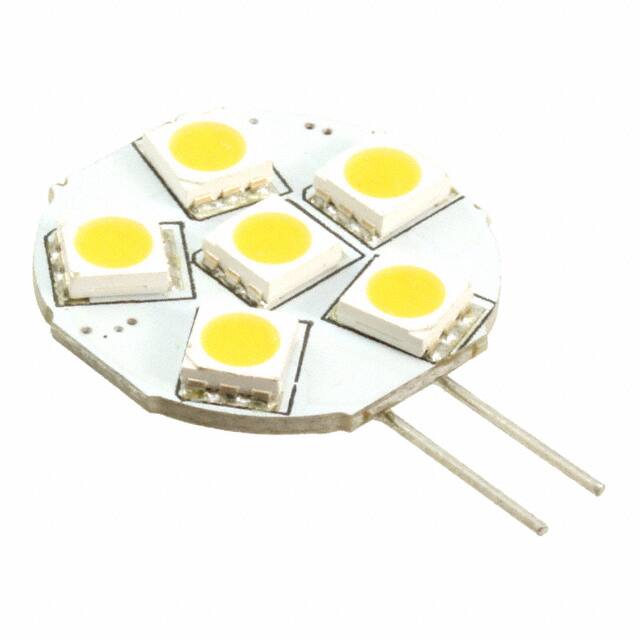

Z-G4-WWLED ENG WARM WHT ROUND 3600K |
0 |
|
规格书 |
- | - | Obsolete | LED Engine | White, Warm | 3600K | - | Round | 50lm (Typ) | 170mA | 25°C | 12V | 25 lm/W | 170mA | - | - | - | 23.00mm Dia | - | - | Flat |
|
BXRA-40E2200-B-03LED COB ES NEUT WHT RECT 4000K |
0 |
|
规格书 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 2750lm (Typ) | 700mA | 25°C | 37V | 106 lm/W | 750mA | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - | Domed |
|
BXRA-40E7500-J-03LED COB RS NEUT WHT SQUARE 4000K |
0 |
|
规格书 |
RS | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9010lm (Typ) | 2.8A | 25°C | 29.4V | 109 lm/W | 3.5A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-40E4500-H-03LED COB RS NEUT WHT SQUARE 4000K |
0 |
|
规格书 |
RS | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 5700lm (Typ) | 2.1A | 25°C | 23.5V | 116 lm/W | 2.8A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-40E1350-B-03LED COB ES NEUT WHT RECT 4000K |
0 |
|
规格书 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Rectangle | 1690lm (Typ) | 500mA | 25°C | 29.6V | 114 lm/W | 750mA | 80 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - | Domed |
|
|
BXRA-30G2000-B-03LED COB ES WARM WHT RECT 3000K |
0 |
|
规格书 |
ES | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 2000lm (Typ) | 700mA | 25°C | 37V | 77 lm/W | 750mA | 90 | 120° | - | 22.80mm L x 25.80mm W | 3.00mm | - | Domed |
|
|
BXRA-30E7000-J-03LED COB RS WARM WHT SQU 3000K |
0 |
|
规格书 |
RS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8050lm (Typ) | 2.8A | 25°C | 29.4V | 98 lm/W | 3.5A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-35E7000-J-03LED COB RS WARM WHT SQUARE 3500K |
0 |
|
规格书 |
RS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 8530lm (Typ) | 2.8A | 25°C | 29.4V | 104 lm/W | 3.5A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-35E4000-H-03LED COB RS WARM WHT SQUARE 3500K |
0 |
|
规格书 |
RS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 5340lm (Typ) | 2.1A | 25°C | 23.5V | 108 lm/W | 2.8A | 80 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
|
BXRA-30G4000-H-03LED COB RS WARM WHT SQU 3000K |
0 |
|
规格书 |
RS | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4260lm (Typ) | 2.1A | 25°C | 23.5V | 86 lm/W | 2.8A | 90 | 120° | - | 45.60mm L x 50.80mm W | 3.00mm | - | Domed |
|
BXRA-30G0740-A-03LED COB ES WH STARBRD 3000K |
0 |
|
规格书 |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 780lm (Typ) | 350mA | 25°C | 27.3V | 82 lm/W | 350mA | 90 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
|
|
BXRA-40E0810-A-03LED COB ES STAR WH STARBRD 4000K |
0 |
|
规格书 |
ES STAR | Tube | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1030lm (Typ) | 350mA | 25°C | 27.3V | 108 lm/W | 350mA | 80 | 120° | - | 19.90mm L x 19.90mm W | 3.00mm | - | Domed |
