上传BOM
LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFT-90-WDS-X11-UA502LED MOD CFT90W CL WH RECT 5600K |
0 |
|
规格书 |
CFT-90-W | Tray | Active | LED Module | White, Cool | 5600K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 22.5A | 90°C | 3.5V | 48 lm/W | 27A | 65 (Typ) | 120° | With Connector | 28.00mm L x 26.75mm W | 3.93mm | 3.00mm L x 3.00mm W | Flat |
|
CBT-140-WCS-L16-UA121LED MOD CBT-140 WHT RECT 8500K |
0 |
|
规格书 |
CBT-140 | Tray | Active | LED Module | White, Cool | 6020K ~ 8500K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 21A | 85°C | 3.6V | 50 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
AB-FF024BL-19712-XA1LED MOD AB-FF BLUE LNR STRIP |
0 |
|
规格书 |
AB-FF | Tray | Active | LED Module | Blue | - | 470nm (465nm ~ 475nm) | Linear Light Strip, Flexible | 166lm | 430mA | - | 24V | 16 lm/W | - | - | 90° | IP68 | 5000.00mm L x 22.00mm W | 11.80mm | - | Flat |
|
MTLR-EZ500-460LED MOD BLUE ROUND 460NM |
0 |
|
规格书 |
- | - | Active | LED Module | Blue | - | 460nm | Round | 390mW (330mW ~ 450mW) | 75mA | 25°C | 8V | - | 75mA | - | - | - | 4.19mm Dia | 0.97mm | - | Flat |
|
|
MTLR-EZ500-450LED MOD BLUE ROUND 450NM |
0 |
|
规格书 |
- | - | Active | LED Module | Blue | - | 450nm | Round | 390mW (330mW ~ 450mW) | 75mA | 25°C | 8V | - | 75mA | - | - | - | 4.19mm Dia | 0.97mm | - | Flat |
|
|
MTLR-EZ500-470LED MOD BLUE ROUND 470NM |
0 |
|
规格书 |
- | - | Active | LED Module | Blue | - | 470nm | Round | 330mW (270mW ~ 390mW) | 75mA | 25°C | 8V | - | 75mA | - | - | - | 4.19mm Dia | 0.97mm | - | Flat |
|
|
MTLR-EZ500-527LED MOD GREEN ROUND 527NM |
0 |
|
规格书 |
- | - | Active | LED Module | Green | - | 527nm | Round | 135mW (90mW ~ 180mW) | 75mA | 25°C | 8V | - | 75mA | - | - | - | 4.19mm Dia | 0.97mm | - | Flat |
|
MTLR-WZ700-NLED MOD NEUT WHT ROUND 5000K |
0 |
|
规格书 |
- | - | Active | LED Module | White, Neutral | 3700K ~ 5000K | - | Round | 48lm (40lm ~ 56lm) | 75mA | 25°C | 8V | 80 lm/W | 75mA | - | - | - | 5.21mm Dia | 0.97mm | - | Flat |
|
|
MTLR-WZ700-WLED MOD WARM WHT ROUND 3700K |
0 |
|
规格书 |
- | - | Active | LED Module | White, Warm | 2600K ~ 3700K | - | Round | 43lm (33lm ~ 52lm) | 75mA | 25°C | 8V | 72 lm/W | 75mA | - | - | - | 5.21mm Dia | 0.97mm | - | Flat |
|
PT-120-G-L11-MPKLED MOD PT-120 GREEN RECT |
0 |
|
规格书 |
PT-120 | Tray | Active | LED Module | Green | - | 525nm | Rectangle | 5013lm (4200lm ~ 5825lm) | 18A | 40°C | 5.2V | 54 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 2.60mm L x 4.60mm W | Flat |
|
|
CBT-140-WCS-L16-UB120LED MOD CBT-140 COOL WHT RECT |
0 |
|
规格书 |
CBT-140 | Tray | Active | LED Module | White, Cool | - | - | Rectangle | 4093lm (3955lm ~ 4230lm) | 21A | 85°C | 3.6V | 54 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|
CFT-90-WDS-X11-VB501CFT-90-WDS-X11-VB501 |
0 |
|
- |
CFT-90-W | Tray | Active | Chip On Board (COB) | White | - | - | Rectangle | 4703lm (4545lm ~ 4860lm) | 22.5A | 90°C | 3.5V | 60 lm/W | 27A | 65 (Typ) | 120° | - | 42.00mm L x 28.00mm W | 5.70mm | 3.00mm L x 3.00mm W | Flat |
|
|
CFT-90-WCS-X11-VB601CFT-90-WCS-X11-VB601 |
0 |
|
- |
CFT-90-W | Tray | Active | Chip On Board (COB) | White, Cool | - | - | Rectangle | 4703lm (4545lm ~ 4860lm) | 22.5A | 90°C | 3.5V | 60 lm/W | 27A | 70 (Typ) | 120° | - | 42.00mm L x 28.00mm W | 5.70mm | 3.00mm L x 3.00mm W | Flat |
|
|
CXB3590-0000-000R0UCD50GLED COB XLAMP COOL WHT SQU 5000K |
0 |
|
规格书 |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 1.2A | 85°C | 72V | 145 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0UCD57GLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
规格书 |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 1.2A | 85°C | 72V | 145 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CBT-140-WCS-L16-UA122LED MOD CBT-140 WHT RECT 7040K |
0 |
|
规格书 |
CBT-140 | Tray | Active | LED Module | White, Cool | 6020K ~ 7040K | - | Rectangle | 3818lm (3680lm ~ 3955lm) | 21A | 85°C | 3.6V | 50 lm/W | 28A | 75 (Typ) | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 4.25mm Dia | Flat |
|

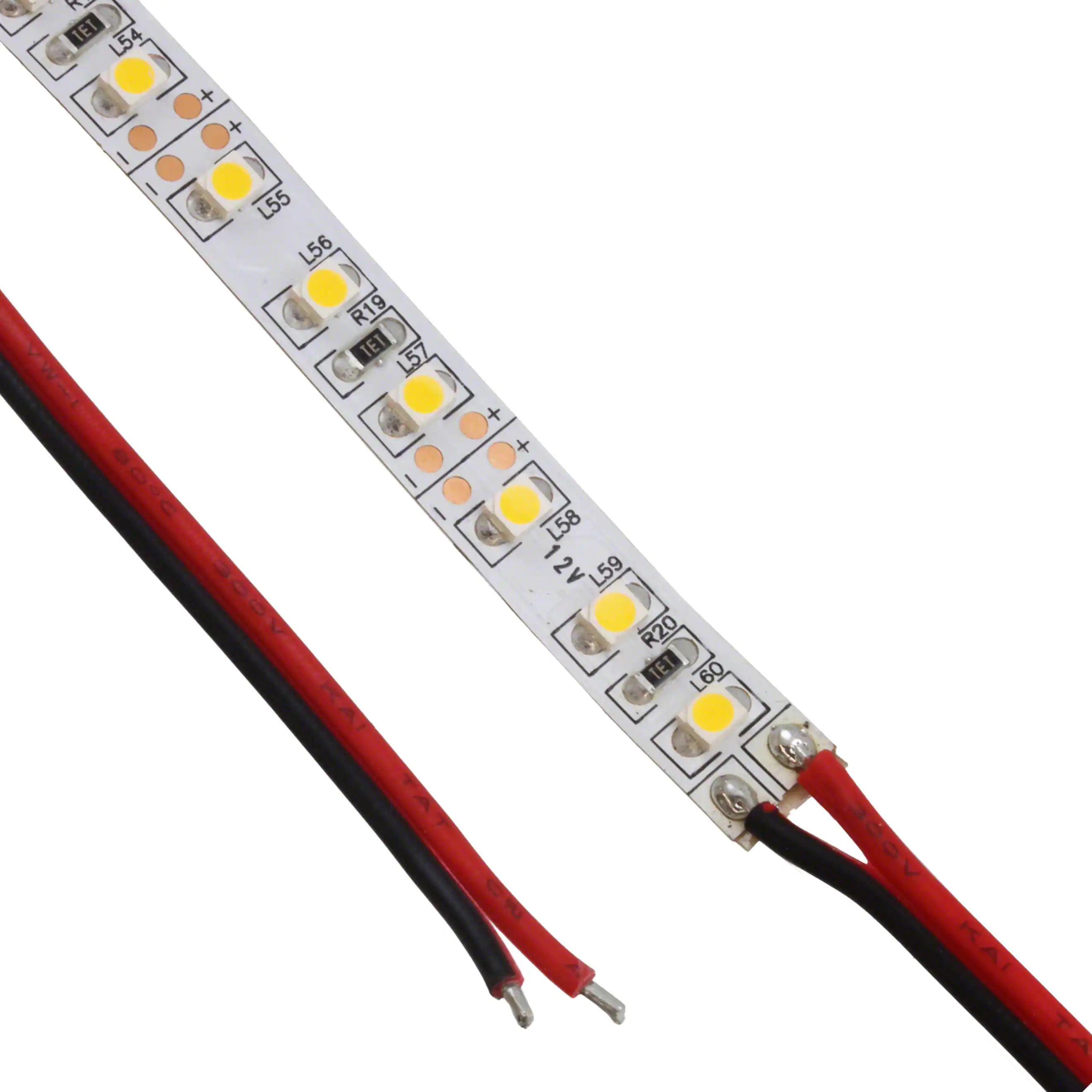

ZFS-85000HD-WWLED ENG WM WHT LNR STRP 3500K 5M |
0 |
|
规格书 |
- | Bulk | Active | LED Engine | White, Warm | 3500K | - | Linear Light Strip, Flexible | 1650lm (Typ) | 4.4A | 25°C | 12V | 31 lm/W | - | - | 120° | - | 5000.00mm L x 8.00mm W | 2.50mm | - | Flat |
|
PT-120-B-L11-EPFLED MOD PT-120 BLUE RECT |
0 |
|
规格书 |
PT-120 | Tray | Active | LED Module | Blue | - | 462nm | Rectangle | 1050lm (880lm ~ 1220lm) | 18A | 40°C | 3.9V | 15 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.70mm | 2.60mm L x 4.60mm W | Flat |
|
PT-121-B-L11-EPFLED MOD PT-121 BLUE RECT |
0 |
|
规格书 |
PT-121 | Tray | Active | LED Module | Blue | - | 462nm | Rectangle | 1050lm (880lm ~ 1220lm) | 18A | 40°C | 3.9V | 15 lm/W | 27A | - | - | With Connector | 28.00mm L x 42.00mm W | 5.61mm | 3.00mm L x 4.00mm W | Flat |
|
|
CFT-90-WDS-X11-UB502LED MOD CFT90W CL WH RECT 5600K |
0 |
|
规格书 |
CFT-90-W | Tray | Active | LED Module | White, Cool | 5600K | - | Rectangle | 4093lm (3955lm ~ 4230lm) | 22.5A | 90°C | 3.5V | 52 lm/W | 27A | 65 (Typ) | 120° | With Connector | 28.00mm L x 26.75mm W | 3.93mm | 3.00mm L x 3.00mm W | Flat |
