LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-30G1KH0-D-73VERO 29D WARM WHITE LED ARRAY |
0 |
|
规格书 |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 10233lm (Typ) | 2.1A | 85°C | 36.6V | 133 lm/W | 4.2A | 90 | 120° | Dimming | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-57E10K1-D-83VERO 29D COOL WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Round | 11444lm (Typ) | 1.7A | 25°C | 36.4V | 185 lm/W | 5.5A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-30G1KH0-B-73VERO 29B WARM WHITE LED ARRAY |
0 |
|
规格书 |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 12131lm (Typ) | 1.8A | 85°C | 51V | 132 lm/W | 3.6A | 90 | 120° | Dimming | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-30E10K0-D-82VERO 29D WARM WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 2700K 2-Step MacAdam Ellipse | - | Round | 11444lm (Typ) | 1.3A | 25°C | 36.4V | 127 lm/W | 4.2A | 70 | 120° | - | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-30E10K0-B-82VERO 29B WARM WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Round | 13012lm (Typ) | 1.4A | 25°C | 50.2V | 185 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-40G10K0-D-82VERO 29D NEUTRAL WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Round | 9828lm (Typ) | 1.7A | 85°C | 35.7V | 146 lm/W | 5.5A | 90 | 120° | Dimming | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|
|
BXRC-27H10K0-D-83VERO 29D WARM WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 2700K 2-Step MacAdam Ellipse | - | Round | 7876lm (Typ) | 1.3A | 25°C | 36.4V | 127 lm/W | 4.2A | 70 | 120° | - | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
|

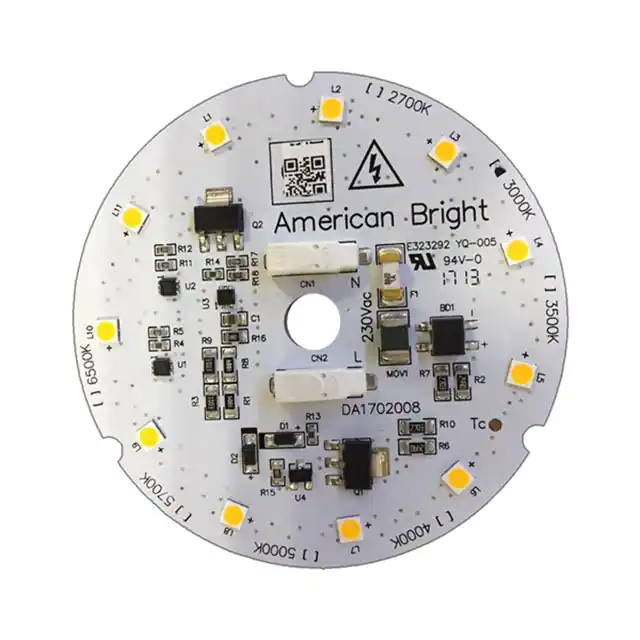

AB-GES-C06212W303T2LED ENG AB-GES WH ROUND 3000K |
0 |
|
规格书 |
AB-GES | Tray | Active | LED Engine | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 1100lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 65.00mm Dia | - | - | Flat |
|
|
AB-GES-C06212W403T2LED ENG AB-GES NEUT WH RND 4000K |
0 |
|
规格书 |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Round | 1180lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 65.00mm Dia | - | - | Flat |
|
|
AB-GES-C06212W503T2LED ENG AB-GES COOL WH RND 5000K |
0 |
|
规格书 |
AB-GES | Tray | Active | LED Engine | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 1050lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 65.00mm Dia | - | - | Flat |
|

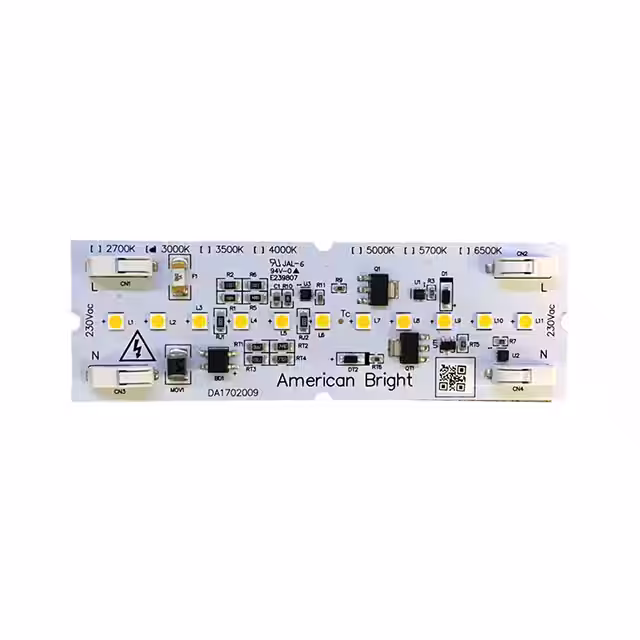

AB-GES-L10206W404T1LED ENG AB-GES WH LNR STRP 4000K |
0 |
|
规格书 |
AB-GES | Tray | Active | LED Engine | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 630lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 100.00mm L x 32.00mm W | - | - | Flat |
|
|
AB-GES-L10206W504T1LED ENG AB-GES WH LNR STRP 5000K |
0 |
|
规格书 |
AB-GES | Tray | Active | LED Engine | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 630lm (Typ) | - | 25°C | 230VAC | - | - | 80 | - | - | 100.00mm L x 32.00mm W | - | - | Flat |
|
|
L22-TG2N06VLED MOD CL WH STARBOARD 5000K |
0 |
|
规格书 |
- | Tray | Obsolete | LED Module | White, Cool | 5000K | - | Starboard | 750lm (Typ) | - | - | 6V | - | - | - | - | - | 19.90mm Dia | 6.50mm | - | Domed |
|
|
BXRC-65E10K1-D-83-SEVERO SE 29D COOL WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Round | 10395lm (Typ) | 1.7A | 85°C | 35.7V | 171 lm/W | 5.5A | 80 | 120° | Dimming | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-27H10K0-B-83-SEVERO SE 29B WARM WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Round | 8040lm (Typ) | 1.4A | 85°C | 50.2V | 117 lm/W | 4.75A | 97 (Typ) | 120° | Dimming | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-30C10K1-D-83-SEVERO SE 29D WARM WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 11953lm (Typ) | 1.3A | 25°C | 66.7V | 193 lm/W | 4.75A | 70 | 120° | - | 49.20mm Dia | 3.50mm | 29.10mm Dia | Flat |
|
|
BXRC-50G10K1-D-83-SEVERO SE 29D COOL WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Round | 9246lm (Typ) | 1.7A | 85°C | 35.7V | 152 lm/W | 5.5A | 90 | 120° | Dimming | 49.20mm Dia | 3.60mm | 29.10mm Dia | Flat |
|
|
BXRC-30C10K1-D-74-SEVERO SE 29D WARM WHITE LED ARRAY |
0 |
|
规格书 |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Round | 12436lm (Typ) | 2.1A | 85°C | 36.6V | 162 lm/W | 4.2A | 70 | 120° | Dimming | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
BXRC-27E10K0-D-82-SEVERO SE 29D WARM WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 10744lm (Typ) | 1.3A | 25°C | 66.7V | 174 lm/W | 4.75A | 80 | 120° | - | 49.20mm Dia | 3.50mm | 29.10mm Dia | Flat |
|
|
BXRC-27G1KH0-B-82-SEVERO SE 29B WARM WHITE LED ARRAY |
0 |
|
规格书 |
Gen 8 Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Round | 10513lm (Typ) | 1.3A | 25°C | 66.7V | 150 lm/W | 4.75A | 90 | 120° | - | 49.20mm Dia | 3.50mm | 29.10mm Dia | Flat |
