隔离器 - 栅极驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
FOD8383R2VOPTOISO 5KV 1CH GATE DVR 5SOP |
1,000 |
|
规格书 |
- | 6-SOIC (0.362", 9.20mm Width), 5 Leads | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 35ns, 25ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 5-SOP | IEC/EN/DIN, UL |
|
1ED020I12FXUMA2DGT ISO 4.5KV 1CH GT DVR DSO16 |
1,000 |
|
规格书 |
EiceDRIVER™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | Magnetic Coupling | 1 | 4500Vrms | - | - | - | 60ns, 60ns | 2A, 2A | - | - | - | 13V ~ 20V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | PG-DSO-16-15 | - |
|
FOD8332R2VOPTOISO 4.243KV 1CH GT DVR 16SO |
4,632 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2.5A, 2.5A | 3A | 1.45V | 25 mA | 3V ~ 15V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | IEC/EN/DIN, UL |
|
|
FOD8318R2OPTOISO 4.243KV 1CH GT DVR 16SO |
750 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 500ns, 500ns | 300ns | 34ns, 34ns | 2.5A, 2.5A | 3A | - | - | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | UL |
|
|
FOD8333R2OPTOISO 4.243KV 1CH GT DVR 16SO |
583 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 2.5A, 2.5A | 3A | 1.45V | 25 mA | 3V ~ 15V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | UL |
|
ADUM3223CRZ-RL7DGTL ISO 3KV 2CH GATE DVR 16SOIC |
1,000 |
|
规格书 |
iCoupler® | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 3000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 11.5V ~ 18V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, UR, VDE |
|
MAX22702DAWA+DGTL ISO 5KV 1CH GATE DVR 8SOIC |
137 |
|
规格书 |
- | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 300kV/µs (Typ) | 36ns, 36ns | 2ns | 3.6ns, 1.8ns (Max) | 2.35A, 3.7A | - | - | - | 6V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, cUL, UL, VDE |
|
|
MAX22701EAWA+DGTL ISO 5KV 1CH GATE DVR 8SOIC |
74 |
|
规格书 |
- | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 300kV/µs (Typ) | 36ns, 36ns | 2ns | 3.6ns, 2.5ns (Max) | 2.35A, 1.9A | - | - | - | 13V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, cUL, UL, VDE |
|
|
ISO5852SQDWRQ1DGTL ISO 5.7KV 1CH GT DVR 16SOIC |
1,640 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 100kV/µs | 110ns, 110ns | - | 18ns, 20ns | 1.5A, 3.4A | 2.7A, 5.5A | - | - | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, TUV, UL, VDE |
|
|
FOD8334OPTOISO 4.243KV 1CH GT DVR 16SO |
1,000 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 4243Vrms | 35kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 3A, 3A | 4A | 1.45V | 25 mA | 3V ~ 15V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | UL |
|
|
ACFJ-3262T-000EAUTOMOTIVE OPTOCOUPLER, LF |
1,360 |
|
规格书 |
- | 24-SOIC (0.295", 7.50mm Width), 18 Leads | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 95ns, 95ns | 20ns | 7ns, 7ns | 6A, 6A | 10A | 1.55V | 20 mA | 10V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SO | CSA, IEC/EN, UL |
|
|
1EDI3051ASXUMA1ISOLATED_HVGD |
480 |
|
规格书 |
- | 36-BFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 8000Vpk | 150kV/µs | 120ns, 120ns | 20ns | 35ns, 45ns (Max) | 20A, 20A | 20A | - | - | 4.55V ~ 5.5V, 14V ~ 21.5V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-36-85 | IEC/EN/DIN, UL |
|
|
NCV57256DR2GDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,500 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 100kV/µs | 80ns, 80ns | 20ns | 12ns, 10ns | 3.5A, 3.5A | 3.5A, 6.5A | - | - | 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | VDE |
|
|
NCV57255DR2GDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,400 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 100kV/µs | 80ns, 80ns | 20ns | 12ns, 10ns | 3.5A, 3.5A | 3.5A, 6.5A | - | - | 32V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | VDE |
|
|
NCD57255DR2GDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,458 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 100kV/µs | 80ns, 80ns | 20ns | 12ns, 10ns | 3.5A, 3.5A | 3.5A, 6.5A | - | - | 32V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | VDE |
|
|
NCD57256DR2GDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,046 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 100kV/µs | 80ns, 80ns | 20ns | 12ns, 10ns | 3.5A, 3.5A | 3.5A, 6.5A | - | - | 32V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | VDE |
|
|
TLP5222(TP,EOPTOISO 5KV 1CH GATE DVR 16SO |
1,380 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 250ns, 250ns | 50ns | 58ns, 57ns | 2A, 2A | 2.5A | 1.67V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 16-SO | CQC, CSA, cUL, UL, VDE |
|
|
TLP5222(D4-TP,EOPTOISO 5KV 1CH GATE DVR 16SO |
1,369 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 250ns, 250ns | 50ns | 58ns, 57ns | 2A, 2A | 2.5A | 1.67V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 16-SO | CQC, CSA, cUL, UL, VDE |
|
|
ACPL-336J-500EOPTOISO 5KV 1CH GATE DVR 16SO |
1,631 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 220ns, 250ns | 120ns | 80ns, 45ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|

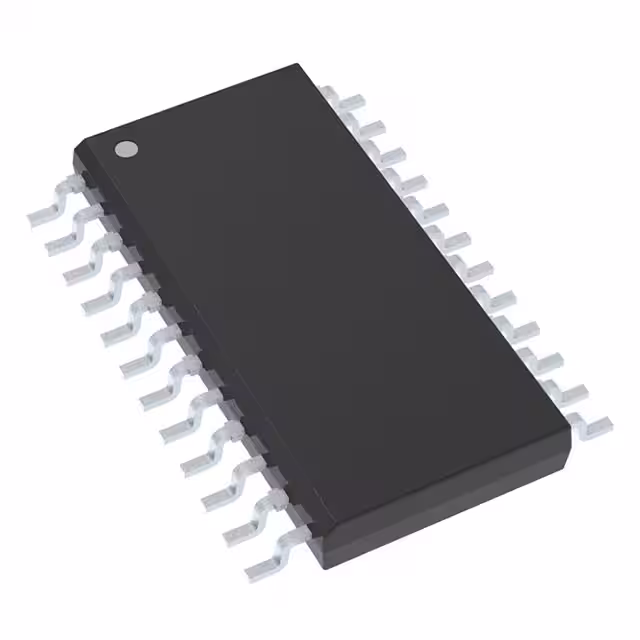

STGAP1BSTRSNGL ISOLATED GATE DRIVER 24SO |
981 |
|
规格书 |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 24-SO | - |
