隔离器 - 栅极驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACFJ-3531T-500EAUTOMOTIVE OPTOCOUPLER, LF Broadcom Limited |
0 |
|
规格书 |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 100ns | 15ns, 15ns | 1.5A, 1.5A | 1.5A | 1.55V | 20 mA | 17.4V ~ 19.2V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CSA, IEC/EN/DIN, UR, VDE |
|
ACPL-31JT-500EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
0 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 250ns, 250ns | 100ns | 60ns, 50ns | - | 2.5A | 1.55V | 20 mA | 12V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
.jpg)
|
HCNW3120OPTOISO 5KV 1CH GATE DVR 8DIP Broadcom Limited |
0 |
|
规格书 |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
HCNW3120#300OPTOISO 5KV 1CH GATE DVR 8DIP GW Broadcom Limited |
0 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|
|
ACPL-335J-000EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
0 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 250ns, 250ns | 100ns | 60ns, 50ns | - | 2.5A | 1.55V | 20 mA | 12V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|

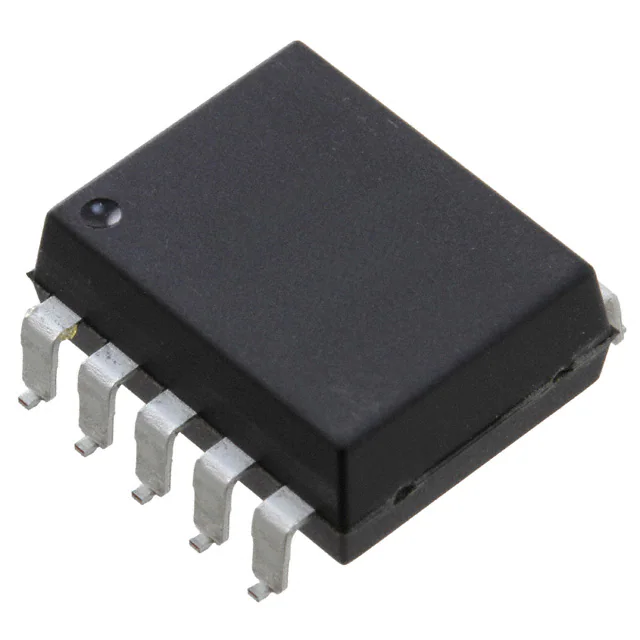

ACNV3130-300EOPTOISO 7.5KV 1CH GT DVR 10DIP Broadcom Limited |
0 |
|
规格书 |
- | 10-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 10-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|
|
ACNT-H343-500EOPTOISO 7.5KV 1CH GATE DVR 8SO Broadcom Limited |
0 |
|
规格书 |
- | 8-SOIC (0.535", 13.60mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 7500Vrms | 100kV/µs | 150ns, 150ns | 80ns | 26ns, 7.5ns | 4A, 4A | 5A, 5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-SO Stretched | CSA, IEC/EN/DIN, UR |
|
|
ACPL-302J-500EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
0 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 250ns | 140ns | 70ns, 35ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 18V ~ 22V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
ACPL-36JV-000EOPTOISO 3.75KV 1CH GATE DVR 16SO Broadcom Limited |
0 |
|
规格书 |
R²Coupler™ | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | - | - | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 105°C | Surface Mount | 16-SO | - |
|
|
ACPL-3130-500EOPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Limited |
0 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
