隔离器 - 栅极驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACFL-3161T-000EAUTOMOTIVE OPTOCOUPLER, LF Broadcom Limited |
0 |
|
规格书 |
- | 12-BSOP (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 95ns, 95ns | 25ns | 7ns, 7ns | 6A, 6A | 10A | 1.55V | 20 mA | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 12-SO Stretched | CSA, IEC/EN/DIN, UR, VDE |
|
HCPL-3180OPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
0 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP | CSA, UR |
|
|
ACFJ-332B-000EGATE DRIVE OPTOCOUPLER,IEC+LF Broadcom Limited |
0 |
|
规格书 |
- | 24-SOIC (0.295", 7.50mm Width), 20 Leads | Tube | Active | Optical Coupling | 2 | 5000Vrms | 150kV/µs | 65ns, 65ns | 22ns | 10ns, 10ns | 2.5A, 2.4A | 4A | - | - | 10V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 24-SO | cUR, UR |
|
|
ACFJ-332BT-000EAUTOMOTIVE OPTOCOUPLER, LF Broadcom Limited |
0 |
|
规格书 |
- | 24-SOIC (0.295", 7.50mm Width), 20 Leads | Tube | Active | Optical Coupling | 2 | 5000Vrms | 150kV/µs | 65ns, 65ns | 22ns | 10ns, 10ns | 2.5A, 2.4A | 4A | - | - | 10V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SO | cUL, UL |
|
|
ACPL-338J-000EPLASTIC OPTOCOUPLER LEADFREE Broadcom Limited |
0 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 135ns, 135ns | 30ns | 20ns, 10ns | 2A, 2A | 3A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, IEC/EN/DIN, UR, VDE |
|
|
ACPL-334J-000EPLASTIC OPTOCOUPLER LEADFREE Broadcom Limited |
0 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 135ns, 135ns | 30ns | 20ns, 10ns | 2A, 2A | 3A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, IEC/EN/DIN, UR, VDE |
|
|
ACFJ-3531T-000EAUTOMOTIVE OPTOCOUPLER, LF Broadcom Limited |
0 |
|
规格书 |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 100ns | 15ns, 15ns | 1.5A, 1.5A | 1.5A | 1.55V | 20 mA | 17.4V ~ 19.2V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CSA, IEC/EN/DIN, UR, VDE |
|

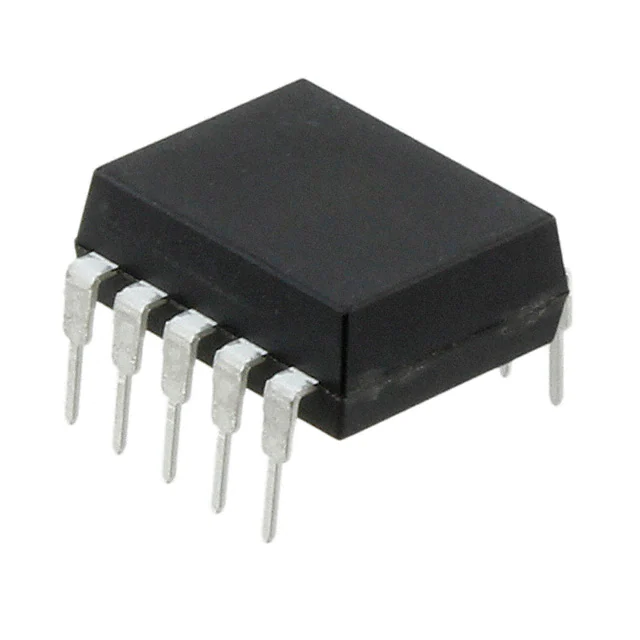

ACNV3130-000EOPTOISO 7.5KV 1CH GATE DVR 10DIP Broadcom Limited |
0 |
|
规格书 |
- | 10-DIP (0.512", 13.01mm) | Tube | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Through Hole | 10-DIP | CSA, IEC/EN/DIN, UR |
|
HCPL-3020-300EOPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Limited |
0 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
HCPL-0302-060EOPTOISO 3.75KV 1CH GATE DVR 8SO Broadcom Limited |
0 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO | CSA, IEC/EN/DIN, UR |
