隔离器 - 栅极驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STGAP2GSNCTRDIGITAL ISO 4KV 1CH GATE DVR 8SO STMicroelectronics |
1,355 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 4000Vrms | 100V/ns | 50ns, 50ns | 8ns | 30ns, 30ns | 3A, 3A | 3A | - | - | 3.1V ~ 5.5V | - | - | -40°C ~ 150°C | Surface Mount | 8-SO | VDE |
|
|
STGAP2SICSANCTRDGTL ISO 2.83KV 1CH GATE DVR 8SO STMicroelectronics |
2,758 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 2830Vrms | 100V/ns | - | 20ns | 30ns, 30ns | - | 4A | - | - | 3.1V ~ 5.25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|
|
STGAP2GSCTRDIGITAL ISO 5KV 1CH GATE DVR 8SO STMicroelectronics |
401 |
|
规格书 |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 50ns, 50ns | 8ns | 30ns, 30ns | 3A, 3A | 3A | - | - | 3.1V ~ 5.5V | - | - | -40°C ~ 150°C | Surface Mount | 8-SO | VDE |
|
|
STGAP2SICSACTRDGTL ISO 3.53KV 1CH GATE DVR 8SO STMicroelectronics |
1,235 |
|
规格书 |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3530Vrms | 100V/ns | - | 20ns | 30ns, 30ns | - | 4A | - | - | 3.1V ~ 5.25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|
|
STGAP2SICSNCTRDGTL ISO 4.8KV 1CH GATE DVR 8SO STMicroelectronics |
2,429 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 4800Vpk | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, - | - | - | - | 3.1V ~ 5.5V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 8-SO | UL, VDE |
|
|
STGAP2SICSNCDIGITAL ISO 4KV 1CH GATE DVR 8SO STMicroelectronics |
1,000 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Capacitive Coupling | 1 | 4000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, - | 4A | - | - | 3.1V ~ 5.5V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 8-SO | UL, VDE |
|
|
STGAP2SICSTRDIGITAL ISO 5KV 1CH GATE DVR 8SO STMicroelectronics |
950 |
|
规格书 |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|
|
STGAP2SICSCTRDIGITAL ISO 5KV 1CH GATE DVR 8SO STMicroelectronics |
855 |
|
规格书 |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | 90ns, 90ns | 20ns | 30ns, 30ns | 4A, 4A | 4A | - | - | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO | UL |
|
STGAP1BSTRSNGL ISOLATED GATE DRIVER 24SO STMicroelectronics |
981 |
|
规格书 |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 24-SO | - |
|

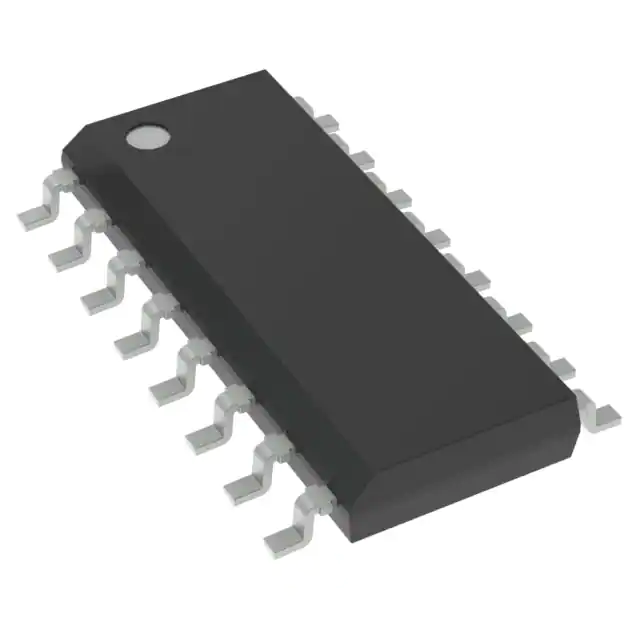

STGAP2DMTRDGTL ISO 1.7KV 2CH GATE DVR 16SO STMicroelectronics |
0 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 2 | 1700VDC | 100V/ns | 100ns, 100ns | 20ns | 30ns, 30ns | 4A, 4A | - | - | - | 3V ~ 5.5V | - | - | -40°C ~ 150°C (TJ) | Surface Mount | 16-SO | - |
