隔离器 - 栅极驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI82398AD4-IS3DGT ISO 3.25KV 2CH GT DVR 14SOIC Skyworks Solutions Inc. |
138 |
|
规格书 |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 135ns, 95ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UR, VDE |
|
SI8274DB1-IS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC Skyworks Solutions Inc. |
3,747 |
|
规格书 |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | RF Coupling | 2 | 2500Vrms | 150kV/µs | 75ns, 60ns | 19ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 9.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI823H4AD-IS3DGTL ISO 5KV 1CH GATE DVR 14SOIC Skyworks Solutions Inc. |
138 |
|
规格书 |
Si823Hx | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H1CD-IS3DGTL ISO 5KV 1CH GATE DVR 14SOIC Skyworks Solutions Inc. |
130 |
|
规格书 |
Si823Hx | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H3CD-IS3DGTL ISO 5KV 1CH GATE DVR 14SOIC Skyworks Solutions Inc. |
128 |
|
规格书 |
Si823Hx | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 116ns, 116ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H1AD-IS3DGTL ISO 5KV 1CH GATE DVR 14SOIC Skyworks Solutions Inc. |
1,098 |
|
规格书 |
Si823Hx | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82521BD-IS3DGTL ISO 5KV 1CH GATE DVR 14SOIC Skyworks Solutions Inc. |
138 |
|
规格书 |
Si8252x | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI82394CD-IS3DGT ISO 3.25KV 2CH GT DVR 14SOIC Skyworks Solutions Inc. |
178 |
|
规格书 |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 55ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 12.8V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UR, VDE |
|
|
SI82397AD-IS3DGT ISO 3.25KV 2CH GT DVR 14SOIC Skyworks Solutions Inc. |
136 |
|
规格书 |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UR, VDE |
.jpg)
|

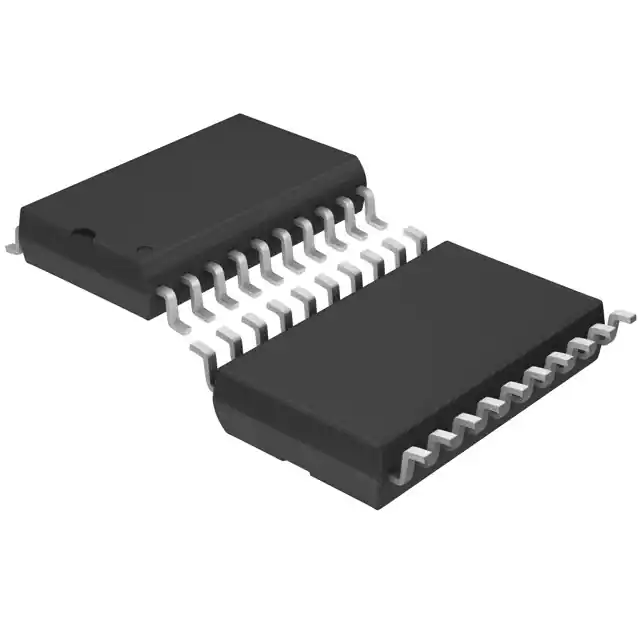

SI8281CC-ISRDGTL ISO 5KV 1CH GATE DVR 20SOIC Skyworks Solutions Inc. |
3,680 |
|
规格书 |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | 2.8V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC | CQC, CSA, UL, VDE |
