隔离器 - 栅极驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC21550ADWRUCC21550ADWR |
1,816 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 125V/ns | 45ns, 45ns | 5ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 6.5V ~ 25V | - | - | -40°C ~ 150°C | Surface Mount | 16-SOIC | UL, VDE |
|
|
UCC21551CDWKR4-A, 6-A 5-KVRMS DUAL-CHANNEL IS |
812 |
|
规格书 |
- | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5000Vrms | 125V/ns | 45ns, 45ns | 6ns | 8ns, 8ns | 4A, 6A | 4A, 6A | - | - | 13.5V ~ 25V | - | - | -40°C ~ 150°C | Surface Mount | 14-SOIC | IEC/EN/DIN, UL, VDE |
|
SI8234BB-D-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
17,311 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 9.4V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8275GB-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
2,392 |
|
规格书 |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
SI8273BB-IS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC |
11,152 |
|
规格书 |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 9.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8275GBD-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
550 |
|
规格书 |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8273GBD-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
524 |
|
规格书 |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
1EDI3021ASXUMA1DGT ISO 5.7KV 1CH GT DVR DSO20 |
1,254 |
|
规格书 |
EiceDRIVER™ | 20-BFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 150kV/µs | 120ns, 120ns | 20ns | 55ns, 45ns (Max) | 20A, 20A | 12A | - | - | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-20-91 | UL, VDE |
|
SI8235AB-D-IMRDGTL ISO 2.5KV 2CH GT DVR 14LGA |
10,385 |
|
规格书 |
- | 14-VFLGA | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 20kV/µs | 60ns, 60ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-LGA (5x5) | CQC, CSA, UR, VDE |
|
|
ISO5851DWRDGTL ISO 5.7KV 1CH GT DVR 16SOIC |
13,659 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 100kV/µs | 110ns, 110ns | - | 20ns, 20ns | 1.5A, 3.4A | 2.7A, 5.5A | - | - | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
1EDI3030ASXUMA1DGT ISO 5.7KV 1CH GT DVR DSO20 |
623 |
|
规格书 |
EiceDRIVER™ | 20-BFSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5700Vrms | 150kV/µs | 120ns, 120ns | 20ns | 55ns, 45ns (Max) | 12A, 12A | 12A | - | - | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 150°C | Surface Mount | PG-DSO-20-91 | UL, VDE |
|

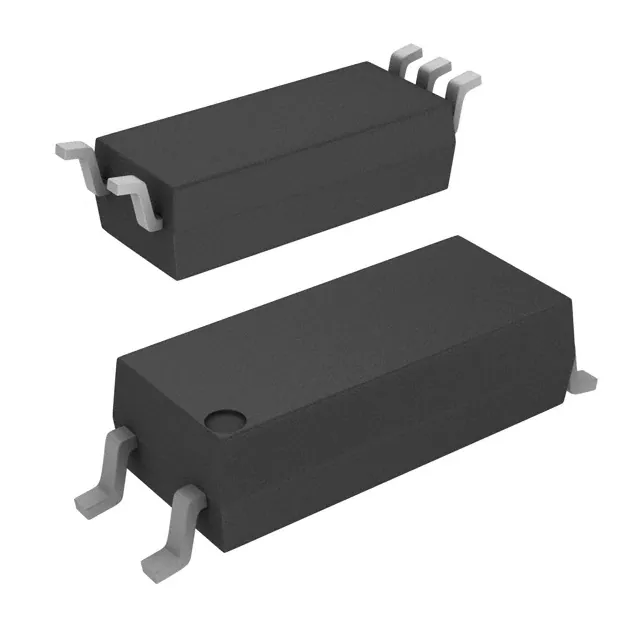

FOD8320R2OPTOISO 5KV 1CH GATE DVR 5SOP |
2,000 |
|
规格书 |
- | 6-SOIC (0.362", 9.20mm Width), 5 Leads | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 16V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 5-SOP | UL |
|
ACPL-331J-000EOPTOISO 5KV 1CH GATE DVR 16SO |
4,901 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 1A, 1A | 1.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
ACPL-330J-000EOPTOISO 5KV 1CH GATE DVR 16SO |
980 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 1A, 1A | 1.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
UCC21717QDWRQ1DGTL ISO 5.7KV 1CH GT DVR 16SOIC |
3,880 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150V/ns | 130ns, 130ns | 30ns | 33ns, 27ns | -, 4A | 10A | - | - | 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | VDE |
|
|
UCC21738QDWRQ1AUTOMOTIVE 10-A SINGLE-CHANNEL I |
1,777 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 150V/µs | 130ns, 130ns | 30ns | 33ns, 27ns | 120mA, 120mA | 10A | - | - | 13V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | IEC/EN/DIN, UL, VDE |
|
UCC21530BQDWKRQ1DGTL ISO 5.7KV 2CH GT DVR 14SOIC |
1,869 |
|
- |
Functional Safety (FuSa) | 14-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 5700Vrms | 100V/ns | 30ns, 30ns | 6ns | 6ns, 7ns | 4A, 6A | 4A, 6A | - | - | 14.7V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
ACPL-331J-500EOPTOISO 5KV 1CH GATE DVR 16SO |
837 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 250ns, 250ns | 100ns | 50ns, 50ns | 1A, 1A | 1.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
TPSI3052SQDWZRQ1DGTL ISO 5KV 1CH GATE DVR 8SOIC |
289 |
|
规格书 |
- | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100V/ns | - | - | - | 1.5A, 3A | 1.5A, 3A | - | 37 mA | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | UL, VDE |
|
NCD57001DWR2GDGTL ISO 5KV 1CH GATE DVR 16SOIC |
1,448 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 100kV/µs | 90ns, 90ns | 15ns | 10ns, 15ns | - | 7.8A, 7.1A | - | 10 mA | 0V ~ 24V | - | - | -40°C ~ 125°C (TJ) | Surface Mount | 16-SOIC | UL, VDE |
