上传BOM
联锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HS1T-VD7Y4ZSM-GINTERLOCK SWITCH |
0 |
|
规格书 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS1T-VG44ZSM-GINTERLOCK SWITCH SPR |
0 |
|
规格书 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS1T-VA44ZSM-GINTERLOCK SWITCH SPR |
0 |
|
规格书 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS5E-KVA003-2CINTERLOCK NON-LOCKING DPST |
0 |
|
- |
HS5E-K | Bulk | Active | Non-Locking | DPST-NO/NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | CE, cURus, TUV |
|
|
HS5E-KVD003-2AINTERLOCK NON-LOCKING DPST |
0 |
|
- |
HS5E-K | Bulk | Active | Non-Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | CE, cURus, TUV |
|
|
HS5E-KVD003-2BINTERLOCK NON-LOCKING DPST |
0 |
|
- |
HS5E-K | Bulk | Active | Non-Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | CE, cURus, TUV |
|
|
HS5E-KVD003-2CINTERLOCK NON-LOCKING DPST |
0 |
|
- |
HS5E-K | Bulk | Active | Non-Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 143kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 70°C | IP65 - Dust Tight, Water Resistant | CE, cURus, TUV |
|
|
3SE66163CA01MAG SW,LH HINGE,1NO/1NC/1NC,M8 6 |
0 |
|
- |
SIRIUS 3SE66 | Box | Active | Magnetic | 3PST-2NC/1NO | 400mA (DC) | 30VDC | - | - | Non-Contact | Connector | - | - | - | M8 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, EAC, RCM, UKCA, UL |
|
|
3SE66263CA01MAG SW,RH HINGE,1NO/1NC/1NC,M8 6 |
0 |
|
- |
SIRIUS 3SE66 | Box | Active | Magnetic | 3PST-2NC/1NO | 400mA (DC) | 30VDC | - | - | Non-Contact | Connector | - | - | - | M8 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, EAC, RCM, UKCA, UL |
|
|
3SE66173CA01MAG SW,LH HINGE,2NC/1NC,M8 6P |
0 |
|
- |
SIRIUS 3SE66 | Box | Active | Magnetic | 3PST-NC | 400mA (DC) | 30VDC | - | - | Non-Contact | Connector | - | - | - | M8 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, EAC, RCM, UKCA, UL |
|
|
GKBA6N8SAFETY LIMIT SWITCH-HEAVY DUTY |
0 |
|
规格书 |
GK | Bulk | Active | Non-Locking | DPST-NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
|
GKBA1P8SAFETY LIMIT SWITCH-HEAVY DUTY |
0 |
|
规格书 |
GK | Bulk | Discontinued at Digi-Key | Non-Locking | DPST-NO/NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
|
GKBA30LXSAFETY LIMIT SWITCH-HEAVY DUTY |
0 |
|
规格书 |
GK | Bulk | Active | Non-Locking | 4PST-NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
|
GKBC36LXSAFETY LIMIT SWITCH-HEAVY DUTY |
0 |
|
规格书 |
GK | Bulk | Active | Non-Locking | 4PST-3NC/1NO (BBM) | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
|
HS1T-XH44ZLSM-GINTERLOCK SWITCH SPR |
0 |
|
规格书 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MA-11AP10C3INTERLOCK MAGNETIC SPST |
0 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 2A (AC) | 230VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

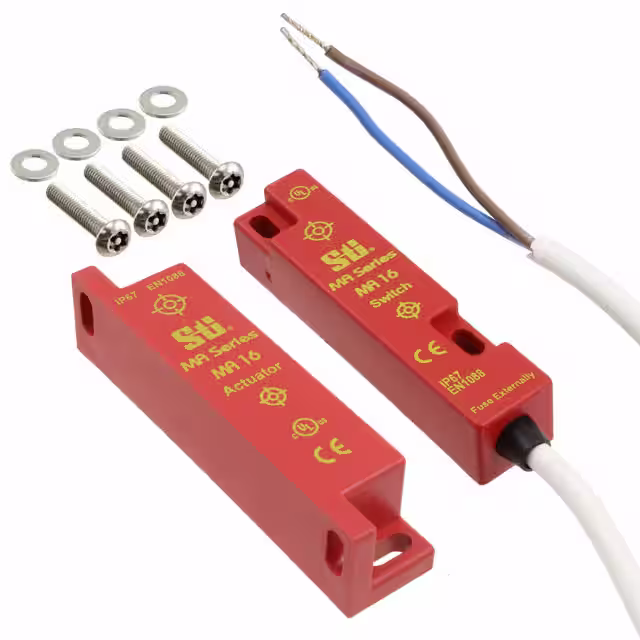

MA16DP10C6INTERLOCK MAGNETIC SPST |
0 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 1A (DC) | 30VDC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
MA-35DS21C12INTERLOCK MAGNETIC 3PST |
0 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 1A (DC) | 30VDC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
MA-35DS21CCINTERLOCK MAGNETIC 3PST |
0 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 1A (DC) | 30VDC | - | - | Non-Contact | Connector (Micro AC) | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
D4NL-1EFA-BINTERLOCK SOLENOID RELEASE 3PST |
0 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + DPST-NO/NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
