联锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC88CH1O1CLT1LSAFETY MAGNETIC SENSOR WITH LED, |
0 |
|
- |
MC88C | Bulk | Active | Magnetic | DPST-NO/NC | 250mA (AC/DC) | 24VAC/DC | - | - | Non-Contact | Cable with Connector (M12) | - | - | - | M12 | -25°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
MC88CH1O1CRT1LSAFETY MAGNETIC SENSOR WITH LED, |
0 |
|
- |
MC88C | Bulk | Active | Magnetic | DPST-NO/NC | 250mA (AC/DC) | 24VAC/DC | - | - | Non-Contact | Cable with Connector (M12) | - | - | - | M12 | -25°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
XCSDMR591L01M12SAFETY INTER, MAG, CYL, WITH M12 |
0 |
|
规格书 |
XCSD | Bulk | Active | Magnetic | DPST-NO/NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable with Connector (M12) | - | - | - | M12 | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
SMS02S1INTERLOCK MAGNETIC DPST |
0 |
|
- |
SMS | Box | Obsolete | Magnetic | DPST-NO/NC | 100mA (AC), 250mA (DC) | - | 120VAC, 50VDC | - | Non-Contact | Wire Leads | - | 20mm | 30mm | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | - |
|

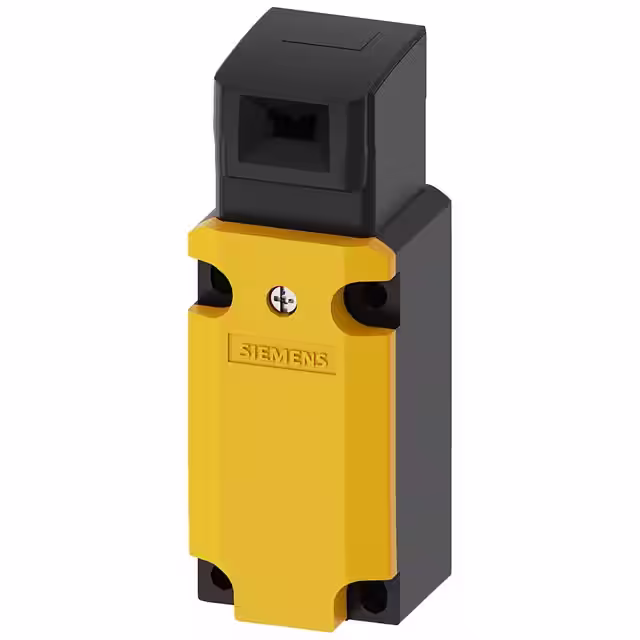

3SE51320QV20INTERLOCK NON-LOCKING 3PST |
0 |
|
规格书 |
SIRIUS | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 3A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CCC, CE, CSA, EAC, UL |
|
|
641.0433.350INTERLOCK MAGNETIC SPST |
0 |
|
- |
- | Bulk | Active | Magnetic | SPST-NO | 1.5A (AC/DC) | 250VAC/DC | - | - | Non-Contact | Cable Leads | - | 22mm | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | - |
|
|
GKMA19LIMIT SWITCH-MINIATURE SAFETY |
0 |
|
- |
GKM | Bulk | Active | Non-Locking | DPST-NO/NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | - |
|
XCSDMP5015INTERLOCK MAGNETIC 3PST |
0 |
|
规格书 |
XCSDMP | Box | Active | Magnetic | 3PST-2NO/1NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|
|
XCSDMP70110INTERLOCK MAGNETIC 3PST |
0 |
|
规格书 |
XCSDMP | Box | Active | Magnetic | 3PST-2NC/1NO | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66 - Dust Tight, Waterproof | CSA, UL |
|
|
3SE52341RV401AF3INTERLOCK SW,TOP&SIDE ENTRY,1NO+ |
0 |
|
规格书 |
3SE5 | Box | Active | Non-Locking | DPST-NO/NC | 3A (DC) | 24VDC | - | - | Panel Disconnect | Connector (M12) | - | - | - | M12 | -25°C ~ 60°C | IP65 - Dust Tight, Water Resistant | CCC, CE, CSA, EAC, UKCA, UL |
|
|
MC88CH2O1CLA2LSAFETY MAGNETIC SENSOR WITH LED, |
0 |
|
- |
MC88C | Bulk | Active | Magnetic | 3PST-2NO/1NC | 250mA (AC/DC) | 24VAC/DC | - | - | Non-Contact | Cable Leads | Cable Length 2m | - | - | - | -25°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
MC88CH2O1CRA2LSAFETY MAGNETIC SENSOR WITH LED, |
0 |
|
- |
MC88C | Bulk | Active | Magnetic | 3PST-2NO/1NC | 250mA (AC/DC) | 24VAC/DC | - | - | Non-Contact | Cable Leads | Cable Length 2m | - | - | - | -25°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
HS1P-241-GINTERLOCK SWITCH SAFETY PLUG TYP |
0 |
|
规格书 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HS1P-241-RINTERLOCK SWITCH SAFETY PLUG TYP |
0 |
|
规格书 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCSA702EXINTERLOCK KEY LOCKING 3PST |
0 |
|
规格书 |
XCSA | Box | Active | Key Locking | 3PST-2NC/1NO | - | - | - | - | Panel Disconnect | Connector | - | - | - | M20 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | - |
|
|
6037264INTERLOCK SWITCH SAFETY |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

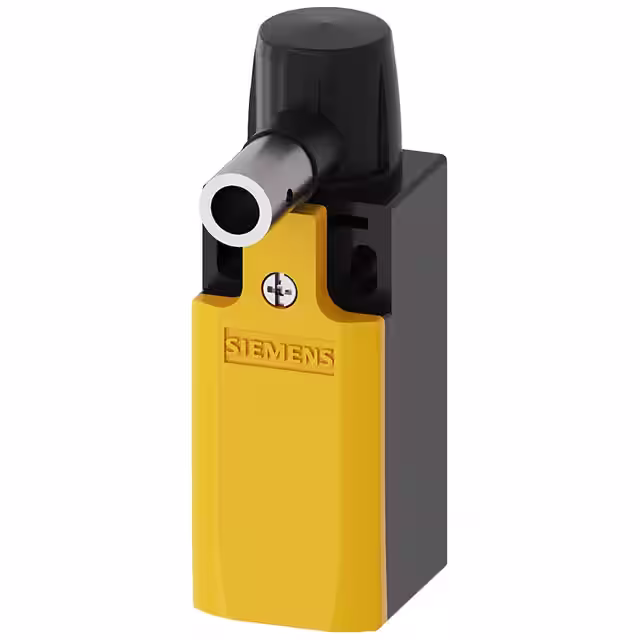

3SE52120LU21INTERLOCK HINGE 3PST |
0 |
|
规格书 |
SIRIUS | Box | Active | Hinge | 3PST-2NC/1NO | 6A (AC), 3A (DC) | 120VAC, 24VDC | - | - | Shaft | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CCC, CE, CSA, EAC, UL |
|

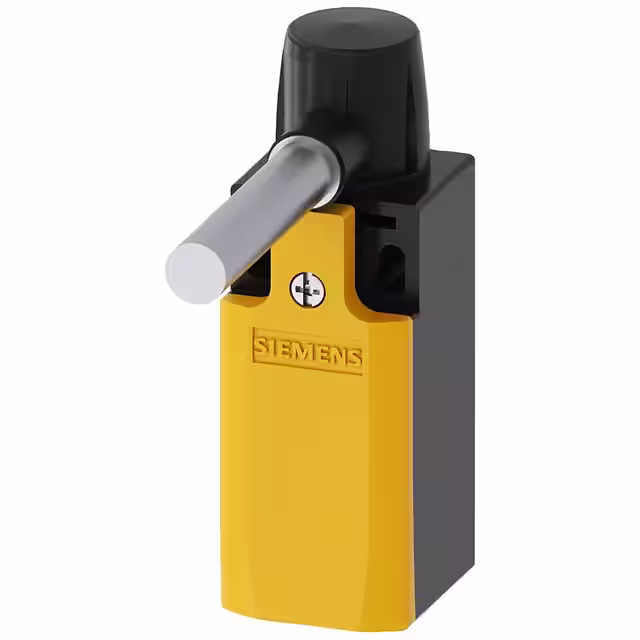

3SE52120LU22INTERLOCK HINGE 3PST |
0 |
|
规格书 |
SIRIUS | Box | Active | Hinge | 3PST-2NC/1NO | 6A (AC), 3A (DC) | 120VAC, 24VDC | - | - | Shaft | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CCC, CE, CSA, EAC, UL |
|
XCSA802INTERLOCK NON-LOCKING 3PST |
0 |
|
规格书 |
XCSA | Box | Active | Non-Locking | 3PST-NC | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
XCSDMP50110INTERLOCK MAGNETIC 3PST |
0 |
|
规格书 |
XCSDMP | Box | Active | Magnetic | 3PST-2NO/1NC | 100mA (DC) | 100VDC | - | - | Non-Contact | Cable Leads | - | 8mm | 20mm | - | -25°C ~ 85°C | IP66 - Dust Tight, Waterproof | CSA, UL |
