联锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSPL561INTERLOCK NON-LOCKING DPST |
0 |
|
规格书 |
XCSPL | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
T4012-011INTERLOCK NON-LOCKING DPST |
1 |
|
规格书 |
T4012 | Bulk | Obsolete | Non-Locking | DPST-NO/NC | 4A (AC/DC) | 230VAC, 24VDC | - | 3kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
XCSPA991INTERLOCK KEY LOCKING 3PST |
0 |
|
- |
XCSPA | Box | Active | Key Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | PG11 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
SMSA2P10INTERLOCK MAGNETIC SPST |
0 |
|
- |
SMS | Box | Active | Magnetic | SPST-NO | 250mA (AC) | - | 100VAC | - | Non-Contact | Wire Leads | - | 16mm | 20mm | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | - |
|
|
3SE52320QV40INTERLOCK SW,TOP&SIDE ENTRY,1NO+ |
0 |
|
规格书 |
3SE5 | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 3A (DC) | 125VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | CCC, CE, CSA, EAC, UKCA, UL |
|

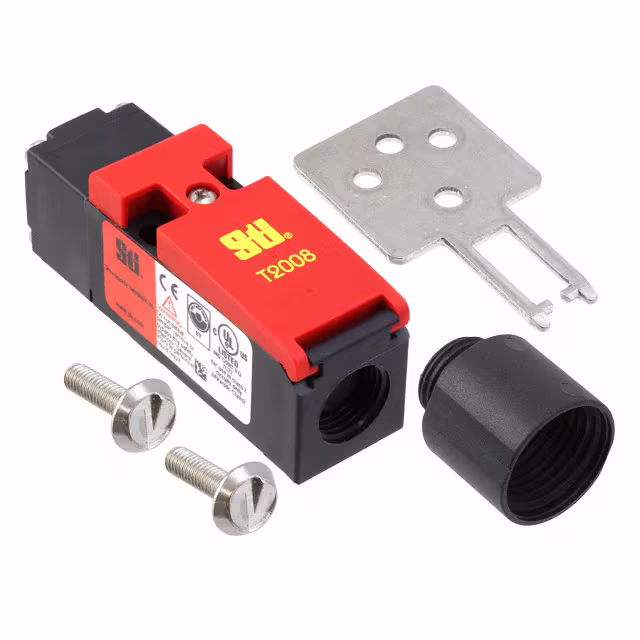

T2008-02TMINTERLOCK NON-LOCKING DPST |
0 |
|
- |
T2008 | Bulk | Obsolete | Non-Locking | DPST-NC | 4A (AC/DC) | 230VAC, 24VDC | - | 612gf | Panel Disconnect | Screw Terminal | - | - | - | M16 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
HS6B-03RR03-5-TK2236INTERLOCK NON-LOCKING 3PST |
0 |
|
- |
HS6B | Bulk | Active | Non-Locking | 3PST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
HS6B-12RR03-5-TK2236INTERLOCK NON-LOCKING 3PST |
0 |
|
- |
HS6B | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 2.5A (AC/DC) | 125VAC, 30VDC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
HS6B-03RR03-6-TK2236INTERLOCK NON-LOCKING 3PST |
0 |
|
- |
HS6B | Bulk | Active | Non-Locking | 3PST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
HS6B-12RR03-6-TK2236INTERLOCK NON-LOCKING 3PST |
0 |
|
- |
HS6B | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 2.5A (AC/DC) | 125VAC, 30VDC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
HS6B-02B03INTERLOCK NON-LOCKING DPST |
0 |
|
- |
HS6B | Bulk | Active | Non-Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
HS6B-11B03INTERLOCK NON-LOCKING DPST |
0 |
|
- |
HS6B | Bulk | Active | Non-Locking | DPST-NO/NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
XCSPR552INTERLOCK NON-LOCKING DPST |
0 |
|
规格书 |
Telemecanique XCS | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Shaft | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
SMSA2P02INTERLOCK MAGNETIC DPST |
0 |
|
- |
SMS | Box | Active | Magnetic | DPST-NO/NC | 250mA (AC) | - | 100VAC | - | Non-Contact | Wire Leads | - | 15mm | 20mm | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | - |
|
|
SMSA2P03INTERLOCK MAGNETIC 4PST |
0 |
|
- |
SMS | Box | Active | Magnetic | 4PST-2NO/2NC | 250mA (AC) | - | 100VAC | - | Non-Contact | Wire Leads | - | 16mm | 20mm | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE |
|
|
D4NH-1CBCINTERLOCK HINGE 3PST |
0 |
|
规格书 |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 10A (AC), 2.5A (DC) | 120VAC, 125VDC | - | - | Arm Lever | Screw Terminal | - | - | - | PG13.5 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
D4NH-1DBCINTERLOCK HINGE 3PST |
0 |
|
规格书 |
D4NH | Bulk | Active | Hinge | 3PST-NC | 10A (AC), 2.5A (DC) | 120VAC, 125VDC | - | - | Arm Lever | Screw Terminal | - | - | - | PG13.5 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
D4NH-1EASINTERLOCK HINGE DPST |
0 |
|
规格书 |
D4NH | Bulk | Active | Hinge | DPST-NO/NC (MBB) | 10A (AC), 2.5A (DC) | 120VAC, 125VDC | - | - | Shaft | Screw Terminal | - | - | - | PG13.5 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
D4NH-1EBCINTERLOCK HINGE DPST |
0 |
|
规格书 |
D4NH | Bulk | Active | Hinge | DPST-NO/NC (MBB) | 10A (AC), 2.5A (DC) | 120VAC, 125VDC | - | - | Arm Lever | Screw Terminal | - | - | - | PG13.5 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
D4NH-2EASINTERLOCK HINGE DPST |
0 |
|
规格书 |
D4NH | Bulk | Active | Hinge | DPST-NO/NC (MBB) | 10A (AC), 2.5A (DC) | 120VAC, 125VDC | - | - | Shaft | Screw Terminal | - | - | - | G1/2 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
