联锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA-16AP10C3INTERLOCK MAGNETIC SPST |
0 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 2A (AC) | 230VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4NL-4DFA-BINTERLOCK SOLENOID RELEASE DPST |
1 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Release | DPST-NC x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4NL-4CFA-BINTERLOCK SOLENOID RELEASE DPST |
1 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D40P-LPC-21-M12INTERLOCK MAGNETIC 3PST |
1 |
|
规格书 |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 8mm | 20mm | - | -25°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4NL-2HFG-BINTERLOCK SOLENOID LOCKING 3PST |
0 |
|
规格书 |
D4NL | Bulk | Active | Solenoid Locking | 3PST-NC + DPST-NC | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
MA16DP11C6INTERLOCK MAGNETIC DPST |
1 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 1A (DC) | 30VDC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
MA16AP10C6INTERLOCK MAGNETIC SPST |
1 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 2A (AC) | 230VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
XCSTE5311INTERLOCK SOLENOID LOCKING DPST |
1 |
|
规格书 |
XCSTE | Box | Active | Solenoid Locking | DPST-NO/NC | 3A (AC) | 120VAC, 125VDC | - | 1.5kgf | Panel Disconnect | Screw Terminal | - | - | - | PG11 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSTE7312INTERLOCK SOLENOID LOCKING DPST |
1 |
|
规格书 |
XCSTE | Box | Active | Solenoid Locking | DPST-NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
SI-LS42DMMGINTERLOCK SOLENOID LOCKING DPST |
1 |
|
规格书 |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
MA-2APC4INTERLOCK MAGNETIC DPST |
0 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 2A (AC) | 230VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4SL-N2HFA-DINTERLOCK SOLENOID RELEASE 3PST |
0 |
|
规格书 |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-NC + DPST-NC | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | - | 133kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
|
SI-LS42WMSHINTERLOCK SOLENOID RELEASE DPST |
0 |
|
规格书 |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 1A (AC) | 24VAC | 110/230VAC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
6022580INTERLOCK SOLENOID RELEASE 3PST |
0 |
|
规格书 |
i10 Lock | Bulk | Active | Solenoid Release | 3PST-2NC/1NO | 4A (AC/DC) | 230VAC, 24VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

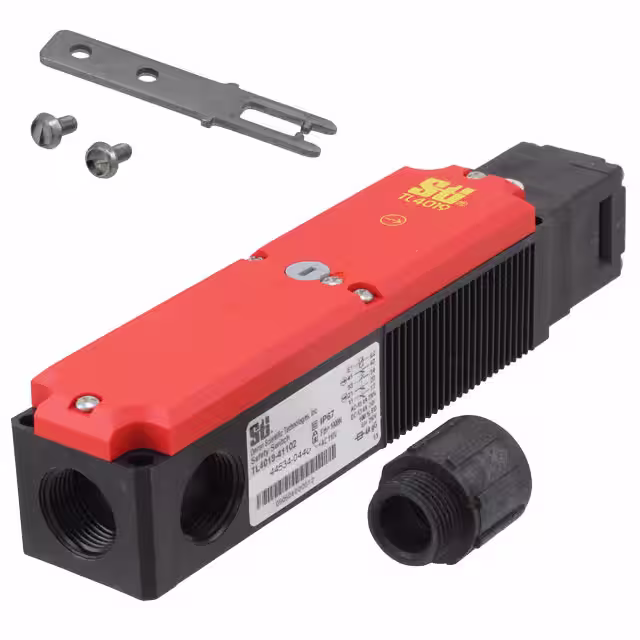

TL4019-20241INTERLOCK SOLENOID LOCKING 4PST |
1 |
|
规格书 |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
TL4019-30242INTERLOCK SOLENOID RELEASE 4PST |
1 |
|
规格书 |
TL4019 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
TL4019-30241INTERLOCK SOLENOID RELEASE 4PST |
0 |
|
规格书 |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
TL4019-41102TMINTERLOCK SOLENOID LOCKING 4PST |
0 |
|
规格书 |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 110VAC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
3SE53220SD21INTERLOCK SW,MECH LOCK_SOL UNLOC |
1 |
|
规格书 |
- | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 3A (DC) | 120VAC, 24VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 60°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CCC, CE, CSA, EAC |
|
|
D4BL-1CRAINTERLOCK SOLENOID RELEASE DPST |
1 |
|
规格书 |
D4BL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 3A (AC) | 250VAC | 24VDC | 71kgf | Panel Disconnect | Screw Terminal | - | - | - | PG13.5 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, CSA, UL |
