力传感器、称重传感器 - 工业级
| 图片 | 型号 | 库存 | 数量 | 规格书 | 封装/外壳 | 操作力 | 输出 | 传感器类型 | 精度 | 电压 - 电源 | 执行器类型 | 执行器样式/尺寸 | 包括内容 | 工作温度 | 补偿温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
060-0571-06SENSOR FORCE LOAD CELL 1000LBS |
1 |
|
- |
453.59kgf (1000lbs) | Voltage | Load Cell | ±0.1% | 15°C ~ 71°C | 10V | Diaphragm | Internal Thread, 38-24 UNF | Sensor | -54°C to 121°C | |
|
060-0238-05SENSOR FORCE LOAD CELL 500LBS |
1 |
|
- |
226.80kgf (500lbs) | Voltage | Load Cell | ±0.5% | 15°C ~ 71°C | 10V | Pushbutton | Round, 8.13mm | Sensor | -54°C to 121°C | |
|
060-2443-02SENSOR FORCE LOAD CELL 2.2LBS |
1 |
|
- |
1kgf (2.2lbs) | Voltage | Load Cell | ±0.7% | 15°C ~ 71°C | 5V | Pushbutton | Round, 2.29mm | Sensor | -54°C to 121°C | |
|
060-1432-08SENSOR FORCE LOAD CELL 500LBS |
1 |
|
- |
226.80kgf (500lbs) | Voltage | Load Cell | ±0.15% | 15°C ~ 71°C | 5V | Diaphragm | Stud, 1/4-28 UNF | Sensor | -54°C to 121°C | |
|

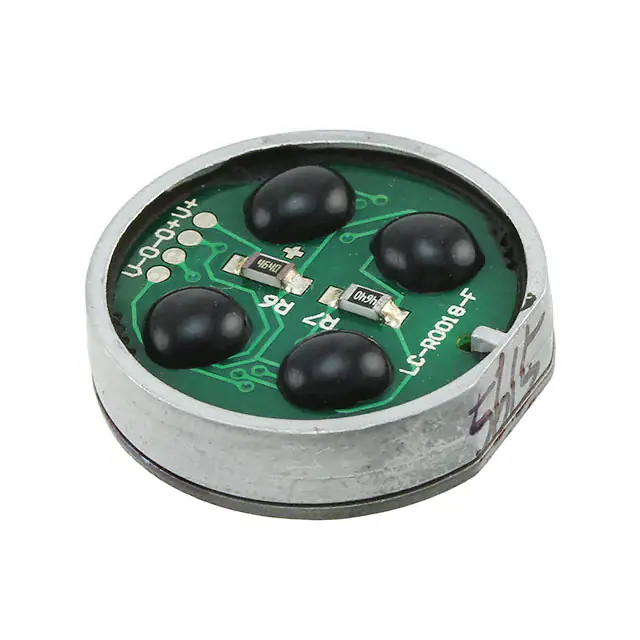

FX1900-0000-0025-LSENSOR TENSE LOAD CELL |
4 |
|
- |
11.34kgf (25lbs) | Voltage | Load Cell | ±1% | - | 5V | Pushbutton | - | Sensor | 0°C ~ 50°C | |
|
FX292X-040B-0050-LFORCE SENSOR |
5 |
|
- |
25.00kgf (55lbs) | Analog Voltage | Load Cell | ±1% | 0°C ~ 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
FX292X-040B-0025-LFORCE SENSOR |
5 |
|
- |
12.50kgf (28lbs) | Analog Voltage | Load Cell | ±1% | 0°C ~ 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
|
FX29K0-040B-0010-LFORCE SENSOR |
0 |
|
- |
5.00kgf (11lbs) | Digital | Load Cell | ±1% | 0°C ~ 50°C | 5.5V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
93515SS3G-250KG-C3 LOAD CELL |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | |
|
93516SS3G-500KG-C3 LOAD CELL |
0 |
|
- |
- | - | - | - | - | - | - | - | - | - | |
|
|
060-2443-06SENSOR FORCE LOAD CELL 10LBS |
1 |
|
- |
4.54kgf (10lbs) | Voltage | Load Cell | ±0.7% | 15°C ~ 71°C | 5V | Pushbutton | Round, 2.29mm | Sensor | -54°C to 121°C | |
|
|
060-2444-06SENSOR FORCE LOAD CELL 250LBS |
1 |
|
- |
113.4kgf (250lbs) | Voltage | Load Cell | ±0.7% | 15°C ~ 71°C | 5V | Pushbutton | Round, 3.05mm | Sensor | -54°C to 121°C | |
|
|
060-1432-07SENSOR FORCE LOAD CELL 1000LBS |
1 |
|
- |
453.59kgf (1000lbs) | Voltage | Load Cell | ±0.2% | 15°C ~ 71°C | 5V | Diaphragm | Stud, 1/4-28 UNF | Sensor | -54°C to 121°C | |
|

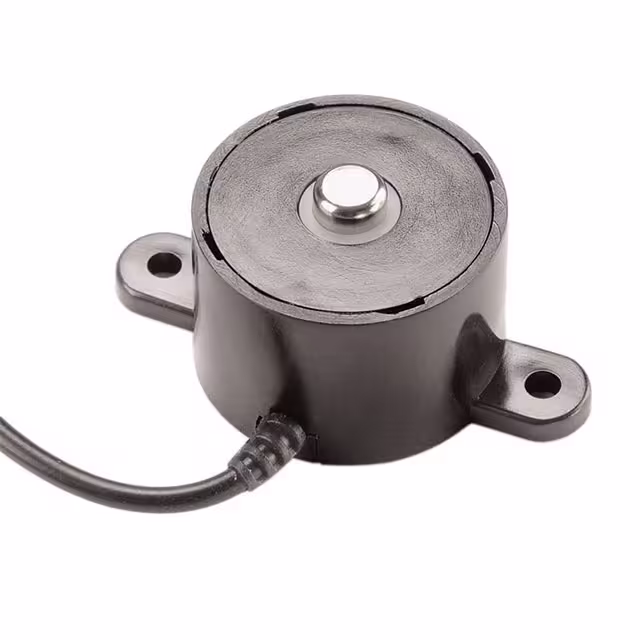

FC2131-0000-0005-LSENSOR FORCE LOAD CELL 5LBS |
0 |
|
- |
2.27kgf (5lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 3.3V ~ 5V | Pushbutton | Round, 5mm | Sensor | -40°C ~ 85°C | |
|

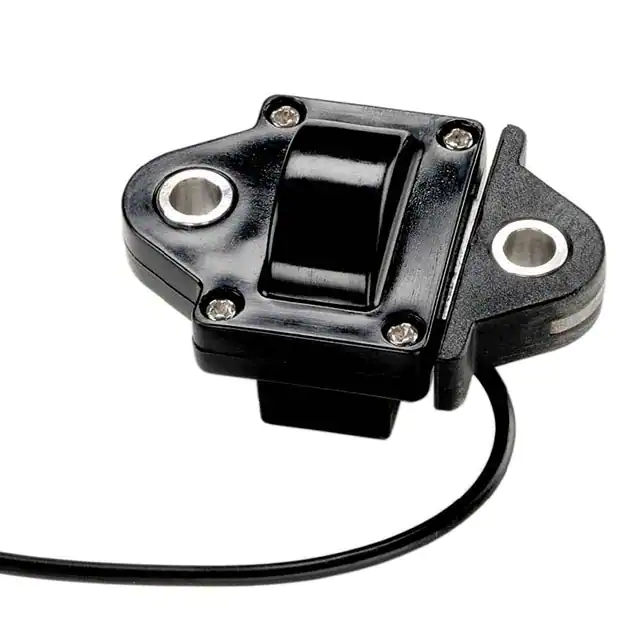

FT2431-0000-0010-LSENSOR FORCE LOAD CELL 10LBS |
0 |
|
- |
4.54kgf (10lbs) | 0.5 V ~ 4.5 V Ratiometric | Load Cell | ±1% | 0°C ~ 50°C | 5V | - | - | Sensor | -40°C ~ 85°C | |
|
|
FT2431-0000-0025-LSENSOR FORCE LOAD CELL 25LBS |
0 |
|
- |
11.34kgf (25lbs) | 0.5 V ~ 4.5 V Ratiometric | Load Cell | ±1% | 0°C ~ 50°C | 5V | - | - | Sensor | -40°C ~ 85°C | |
|
|
FT2431-0000-0050-LSENSOR FORCE LOAD CELL 50LBS |
0 |
|
- |
22.68kgf (50lbs) | 0.5 V ~ 4.5 V Ratiometric | Load Cell | ±1% | 0°C ~ 50°C | 5V | - | - | Sensor | -40°C ~ 85°C | |
|
|
FT2431-0000-0100-LSENSOR FORCE LOAD CELL 100LBS |
0 |
|
- |
45.36kgf (100lbs) | 0.5 V ~ 4.5 V Ratiometric | Load Cell | ±1% | 0°C ~ 50°C | 5V | - | - | Sensor | -40°C ~ 85°C | |
|
|
FC2131-0000-0002-LSENSOR FORCE LOAD CELL 2LBS |
0 |
|
- |
0.907kgf (2lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 3.3V ~ 5V | Pushbutton | Round, 5mm | Sensor | -40°C ~ 85°C | |
|
|
FC2131-0000-0010-LSENSOR FORCE LOAD CELL 10LBS |
0 |
|
- |
4.54kgf (10lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 3.3V ~ 5V | Pushbutton | Round, 5mm | Sensor | -40°C ~ 85°C |
