工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

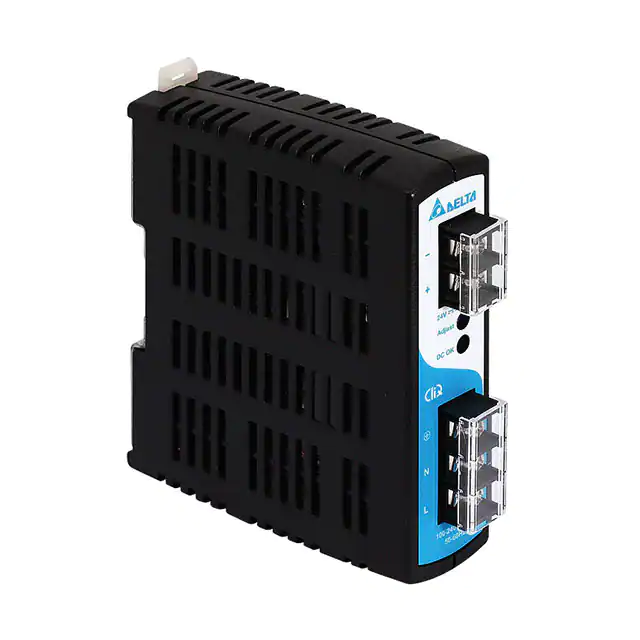

DRP024V060W1AZAC/DC DIN RAIL SUPPLY 24V 60W Delta Electronics |
516 |
|
规格书 |
CliQ (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 87% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 62368-1 |
|

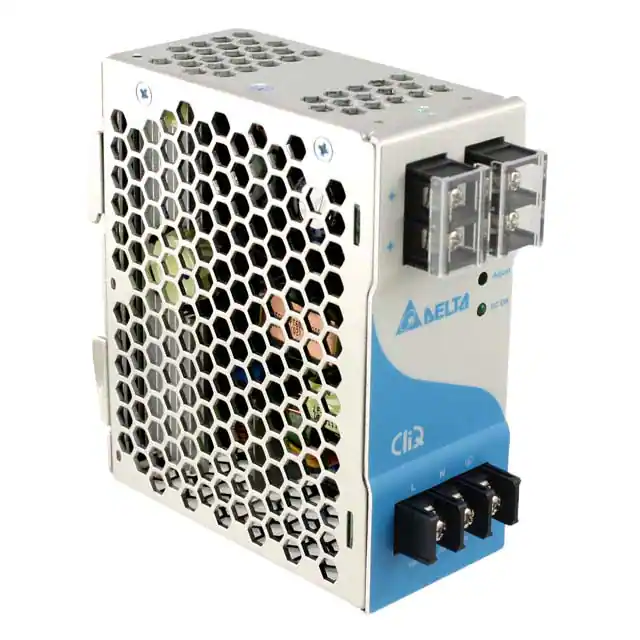

DRP012V030W1AZAC/DC DIN RAIL SUPPLY 12V 30W Delta Electronics |
223 |
|
规格书 |
CliQ (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | 4 kV | ITE (Commercial) | 85% | -20°C ~ 75°C (With Derating) | Adjustable Output, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2 |
|
DRP024V120W1AAAC/DC DIN RAIL SUPPLY 24V 120W Delta Electronics |
443 |
|
规格书 |
CliQ (120W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 84% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SEMI, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|

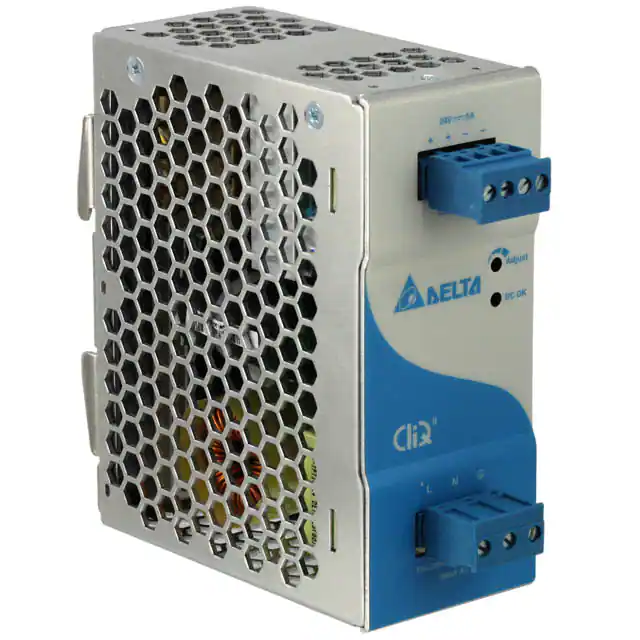

DRP024V120W1BAAC/DC DIN RAIL SUPPLY 24V 120W Delta Electronics |
170 |
|
规格书 |
CliQ II (120W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 90% | -20°C ~ 85°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|

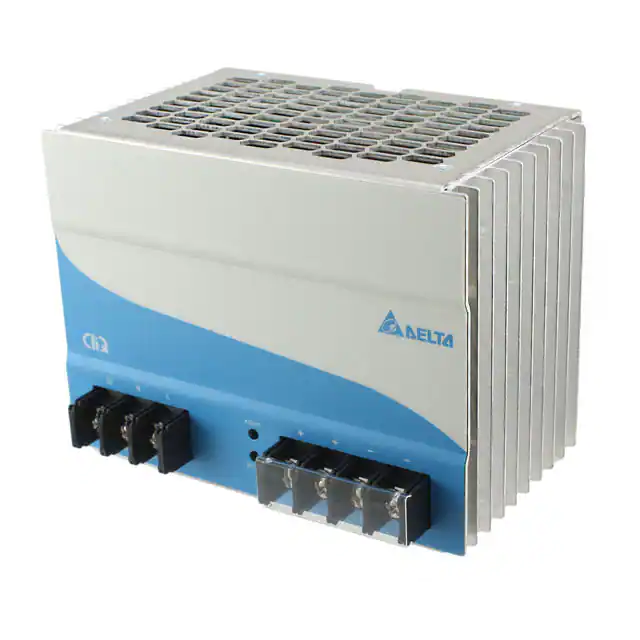

DRP024V480W1AAAC/DC DIN RAIL SUPPLY 24V 480W Delta Electronics |
254 |
|
规格书 |
CliQ (480W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 88% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SEMI, SIQ, UL | F47; 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|
DRL-24V240W1ENAC/DC DIN RAIL 24V 240W - LYTE2 Delta Electronics |
6 |
|
规格书 |
DRL (240W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial), Laboratory | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|

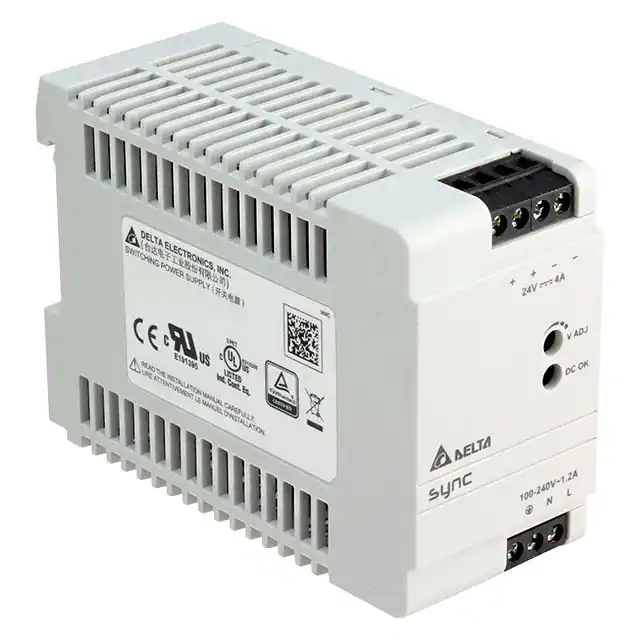

DRS-24V100W1NZAC/DC DIN RAIL SUPPLY 24V 100W Delta Electronics |
13 |
|
规格书 |
Sync (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 100W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB, CE, cULus, cURus, TUV | - |
|

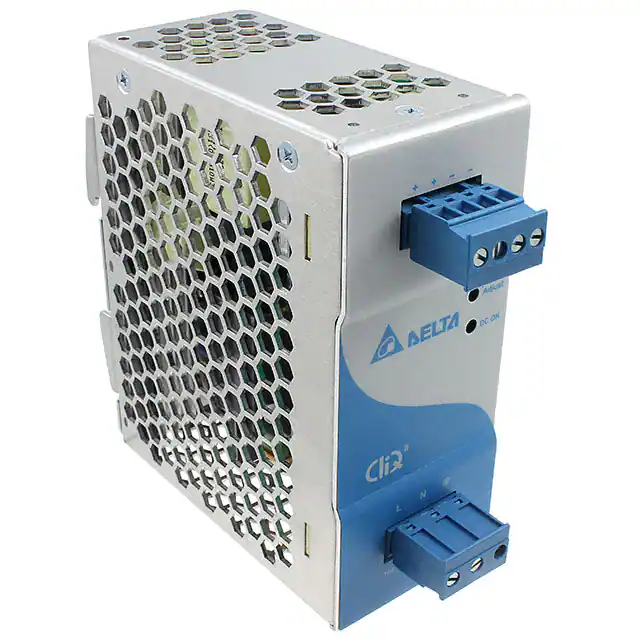

DRP024V120W1BNAC/DC DIN RAIL SUPPLY 24V 120W Delta Electronics |
22 |
|
规格书 |
CliQ II (120W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 90% | -20°C ~ 85°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|

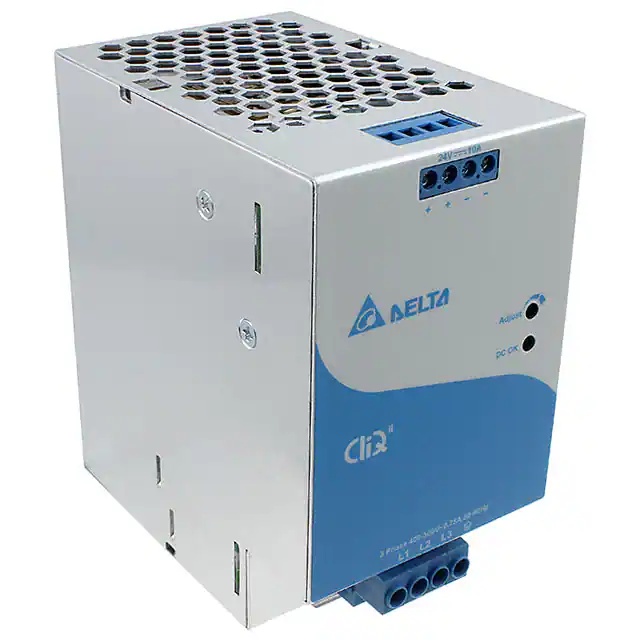

DRP024V240W3BNAC/DC DIN RAIL SUPPLY 24V 240W Delta Electronics |
6 |
|
规格书 |
CliQ II (240W) | Bulk | Active | AC | 1 | 320 ~ 600 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-6-1; 61000-6-2; 61204-3 |
|
|
DRM-24V960W3PNDIN-RAIL CLIQ-M 960W/24V 3 PH Delta Electronics |
16 |
|
规格书 |
CliQ M (960W) | Box | Active | AC | 1 | 320 ~ 575 VAC (3 Phase), 380 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 4.86 kV | Industrial, ITE (Commercial), Laboratory | 95.78% | -25°C ~ 70°C | Adjustable Output, PFC, Remote On/Off | CB, CE, cULus, cURus, EAC, SIQ, UKCA | 60950-1; 61010-1; 62368-1; UL 508 |
