工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

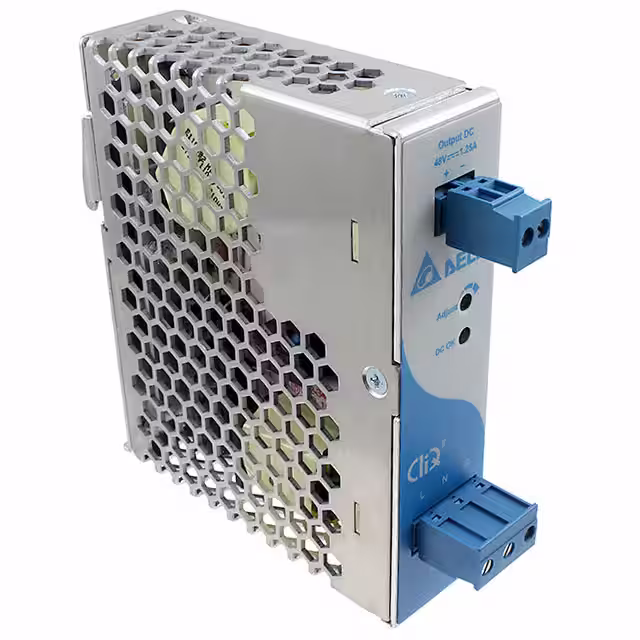

DRP048V060W1BNAC/DC DIN RAIL SUPPLY 48V 60W |
16 |
|
规格书 |
CliQ II (60W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.25A | 60W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|
787-1711AC/DC DIN RAIL SUPPLY 12V 48W |
9 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 125V | 375V | 12V | - | - | - | - | - | 4A | 48W | 4.242 kV | Household Appliances, ITE (Commercial) | 85% | -20°C ~ 60°C | Adjustable Output, IP20, PFC, Universal Input | EAC | 60335-1; 62368-1 |
|
TPC 055-112AC/DC DIN RAIL SUPPLY 12V 42W |
15 |
|
规格书 |
TPC (55W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 12V | - | - | - | - | - | 3.5A | 42W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, cCSAus, SIQ | - |
|
TPC 080-124AC/DC DIN RAIL SUPPLY 24V 79W |
9 |
|
规格书 |
TPC (80W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 3.3A | 79W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, cCSAus, SIQ | - |
|
TBL 060-112AC/DC DIN RAIL SUPPLY 12V 54W |
12 |
|
规格书 |
TBL (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4.5A | 54W | - | Industrial, ITE (Commercial) | 83% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, CSAus, cULus, cURus, SIQ | - |
|
TSPC 080-112AC/DC DIN RAIL SUPPLY 12V 79W |
9 |
|
规格书 |
TSPC (80W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 6.6A | 79W | - | Hazardous Locations, Industrial, ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE | - |
|
ECE60US03-SDAC/DC DIN RAIL SUPPLY 3.3V 33W |
9 |
|
规格书 |
ECE60 (60W) | Tray | Active | AC | 1 | 85 ~ 264 VAC | - | - | 3.3V | - | - | - | - | - | 10A | 33W | 3 kV | ITE (Commercial) | 79% | -40°C ~ 70°C (With Derating) | Universal Input | CB, TUV, UL | 62368-1 |
|
TSPC 080-124AC/DC DIN RAIL SUPPLY 24V 79W |
7 |
|
规格书 |
TSPC (80W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.3A | 79W | - | Hazardous Locations, Industrial, ITE (Commercial) | 93% | -25°C ~ 70°C (With Derating) | Adjustable Output | CB, CE | - |
|
TBL 090-112AC/DC DIN RAIL SUPPLY 12V 72W |
19 |
|
规格书 |
TBL (90W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 6A | 72W | - | Industrial, ITE (Commercial) | 84% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, CSAus, cULus, cURus, SIQ | - |
|
EC7BW18-72D24-EDRTDC/DC DIN RAIL SUPPLY +/-24V 20W |
8 |
|
规格书 |
EC7BW18 (20W) | Box | Active | DC | 2 | - | 10V | 160V | 24V | -24V | - | - | - | - | 417mA, 417mA | 20W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 100°C (With Derating) | Remote On/Off | CE | 50155; 62368-1 |
|
EC7BW18-72S15-EDRTDC/DC DIN RAIL SUPPLY 15V 20W |
5 |
|
规格书 |
EC7BW18 (20W) | Box | Active | DC | 1 | - | 10V | 160V | 15V | - | - | - | - | - | 1.33A | 20W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 100°C (With Derating) | Remote On/Off | CE | 50155; 62368-1 |
|
SPMA12301AC/DC DIN RAIL SUPPLY 12V 25W |
9 |
|
规格书 |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 12V | - | - | - | - | - | 2.1A | 25W | 4 kV | Industrial, ITE (Commercial) | 86% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE | 62368-1; UL 508 |
|
ECE80US36-SDAC/DC DIN RAIL SUPPLY 36V 80W |
4 |
|
规格书 |
ECE80 (80W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 36V | - | - | - | - | - | 2.22A | 80W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 70°C (With Derating) | Universal Input | CB, TUV, UL | 62368-1 |
|
TIB 080-148EXAC/DC DIN RAIL SUPPLY 48V 82W |
4 |
|
规格书 |
TIB 080EX (80W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.7A | 82W | 4.25 kV | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|
KHNA120F-24AC/DC DIN RAIL SUPPLY 24V 120W |
4 |
|
规格书 |
KHNA (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 92% | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | CE, cULus, cURus, TUV | 60950-1 |
|
SPMA24601AC/DC DIN RAIL SUPPLY 24V 60W |
10 |
|
规格书 |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | Industrial, ITE (Commercial) | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE | 62368-1; UL 508 |
|
TSP 090-148AC/DC DIN RAIL SUPPLY 48V 96W |
15 |
|
规格书 |
TSP (90-96W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2A | 96W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | CB, CE, cURus, SIQ | - |
|
TIB 120-148EXAC/DC DIN RAIL SUPPLY 48V 120W |
14 |
|
规格书 |
TIB 120EX (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.5A | 120W | 4.25 kV | Hazardous Locations, Industrial, ITE (Commercial) | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|
TBL 150-124AC/DC DIN RAIL SUPPLY 24V 150W |
18 |
|
规格书 |
TBL (150W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 6.25A | 150W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | CB, CE, CSAus, cULus, cURus, SIQ | - |
|
DRB120-24-3-A1AC/DC DIN RAIL SUPPLY 24V 120W |
3 |
|
规格书 |
DRB (120-240W) | Box | Active | AC | 1 | 350 ~ 575 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 3.51 kV | ITE (Commercial), Laboratory | 91.3% | -25°C ~ 55°C | Adjustable Output, PFC, Remote On/Off, Remote Sense | CE | 61010-1;60950-1;62368-1 |
