工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRL100-24-1/C2AC/DC DIN RAIL SUPPLY 24V 101W |
19 |
|
规格书 |
DRL (10-100W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 24V | - | - | - | - | - | 4.2A | 101W | 3 kV | Hazardous Locations, ITE (Commercial) | 90% | -20°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | CE | - |
|
78.12.1.230.2482POWER SUPPLY SWITCHING FOR OPTA |
7 |
|
规格书 |
78 | Box | Active | AC or DC | 1 | 110 ~ 240 VAC | 140V | 370V | 24V | - | - | - | - | - | 500mA | 12W | 3 kV | ITE (Commercial) | 85% | -20°C ~ 40°C | - | CE, cULus, EAC, ENEC, UKCA | - |
|
CSW65-28/DAC/DC DIN RAIL SUPPLY 28V 65W |
8 |
|
规格书 |
CSW65 (65W) | Box | Active | AC | 1 | 90 ~ 305 VAC | - | - | 28V | - | - | - | - | - | 2.33A | 65W | 3 kV | ITE (Commercial) | 89% | -10°C ~ 70°C (With Derating) | - | CE | - |
|
PS5R-VB05AC/DC DIN RAIL SUPPLY 5V 10W |
2 |
|
规格书 |
PS5R-V (10W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 370V | 5V | - | - | - | - | - | 2A | 10W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 77% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, TUV | 62368-1 |
|

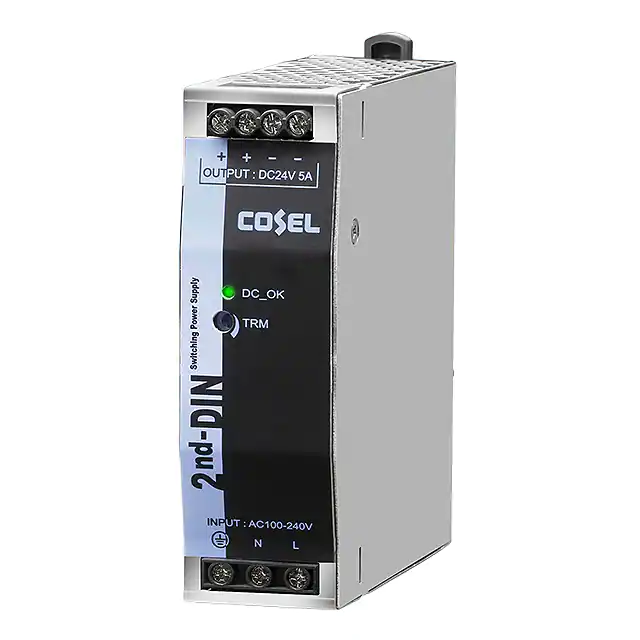

KLEA120F-24AC/DC DIN RAIL SUPPLY 24V 120W |
7 |
|
规格书 |
KLEA (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, cURus, TUV | - |
|
1140066AC/DC DIN RAIL SUPPLY 24V 96W |
11 |
|
规格书 |
Step | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 4A | 96W | - | Household Appliances, Laboratory | 94% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | cULus, UL | 60335-1; 61010-1 |
|
TPC 030-124AC/DC DIN RAIL SUPPLY 24V 30W |
20 |
|
规格书 |
TPC (30W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 1.25A | 30W | - | Industrial, ITE (Commercial) | 84% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, cCSAus, SIQ | - |
|
SVL224100AC/DC DIN RAIL SUPPLY 24V 50W |
16 |
|
规格书 |
SVL | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 2.1A | 50W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Universal Input | CE, cULus, cURus | - |
|
SPMA24151AC/DC DIN RAIL SUPPLY 24V 15W |
25 |
|
规格书 |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 24V | - | - | - | - | - | 630mA | 15W | 4 kV | Industrial, ITE (Commercial) | 85% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE | 62368-1; UL 508 |
|
DSP100-24/C2AC/DC DIN RAIL SUPPLY 24V 100W |
6 |
|
规格书 |
DSP (7.5-100W) | Bulk | Not For New Designs | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 3.8A | 100W | 3 kV | ITE (Commercial) | 89% | -25°C ~ 71°C (With Derating) | Adjustable Output, Universal Input | CE | - |
|
S8FS-G01515CDAC/DC DIN RAIL SUPPLY 15V 15W |
6 |
|
规格书 |
S8FS-G (15W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 1A | 15W | 3 kV | Industrial, ITE (Commercial) | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cURus, TUV, UL | - |
|
SVL412100AC/DC DIN RAIL SUPPLY 12V 48W |
10 |
|
规格书 |
SVL | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 12V | - | - | - | - | - | 4A | 48W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Universal Input | CE, cULus, cURus | - |
|
TBLC 50-124AC/DC DIN RAIL SUPPLY 24V 50W |
17 |
|
规格书 |
TBLC (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | 3 kV | Household Appliances, Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|
|
DRF-12V120W1GBAAC/DC DIN RAIL 12V 120W COATED |
8 |
|
规格书 |
DRF (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 12A | 144W | 4 kV | ITE (Commercial), Laboratory | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cURus, EAC, KC, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
SVL524100AC/DC DIN RAIL SUPPLY 24V 120W |
15 |
|
规格书 |
SVL | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Universal Input | CE, cULus, cURus | - |
|
TCL 024-124AC/DC DIN RAIL SUPPLY 24V 24W |
6 |
|
规格书 |
TCL (24W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 85V | 375V | 24V | - | - | - | - | - | 1A | 24W | 3 kV | Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | CB, CE, cCSAus, cULus, cURus | - |
|
859-805DC/DC DIN RAIL SUPPLY 12V |
13 |
|
规格书 |
- | Box | Active | DC | 1 | - | 15V | 30V | 12V | - | - | - | - | - | 500mA | - | - | Industrial | 85% | -25°C ~ 55°C | - | cULus | UL 508 |
|

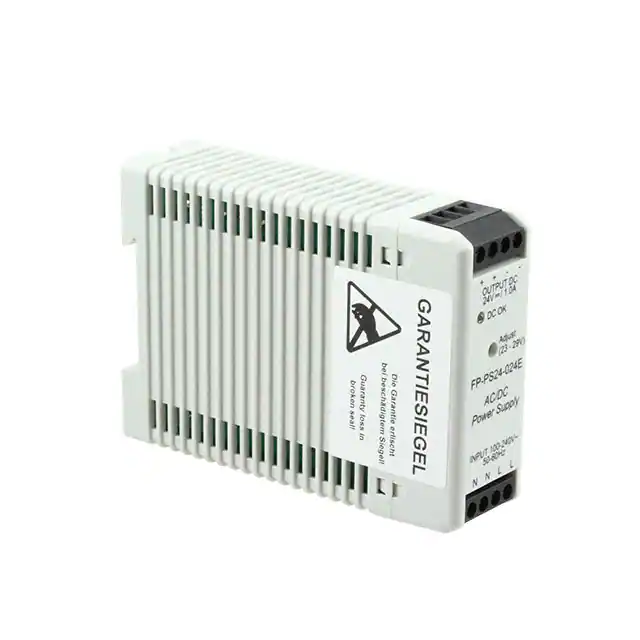

FP-PS24-024EAC/DC DIN RAIL SUPPLY 24V 24W |
25 |
|
规格书 |
FP-PS24 | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1A | 24W | - | ITE (Commercial) | 88% | -10°C ~ 70°C | - | CSA | - |
|
1469570000AC/DC DIN RAIL SUPPLY 12V 72W |
2 |
|
规格书 |
PRO ECO (72W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 80V | 370V | 12V | - | - | - | - | - | 6A | 72W | 3 kV | ITE (Commercial) | 85% | -25°C ~ 70°C | Adjustable Output, IP20, Universal Input | CE, cULus, EAC, TUV | - |
|
|
DRC-180APWR SUPP, BATT & COND |
0 |
|
规格书 |
DRC-180 (180W) | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 13.8V | - | - | - | - | - | 9A | 124W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | PFC, Universal Input | CB, CE, cURus, EAC | 62368-1 |
