工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2866271DC/DC DIN RAIL SUPPLY 24V 24W |
5 |
|
规格书 |
MINI (24W) | Box | Active | DC | 1 | - | 48V | 60V | 24V | - | - | - | - | - | 1A | 24W | - | ITE (Commercial) | 85% | -25°C ~ 70°C (With Derating) | - | cUL, EN, UL, VDE | - |
|
2466880000AC/DC DIN RAIL SUPPLY 24V 240W |
7 |
|
规格书 |
PRO TOP1 (240W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | - | - | - |
|
DSL240PS12-IAC/DC DIN RAIL SUPPLY 12V 192W |
25 |
|
规格书 |
DSL240 (240W) | Box | Active | AC | 1 | 88 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 16A | 192W | 3 kV | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | CE, cULus, TUV | 62368-1 |
|

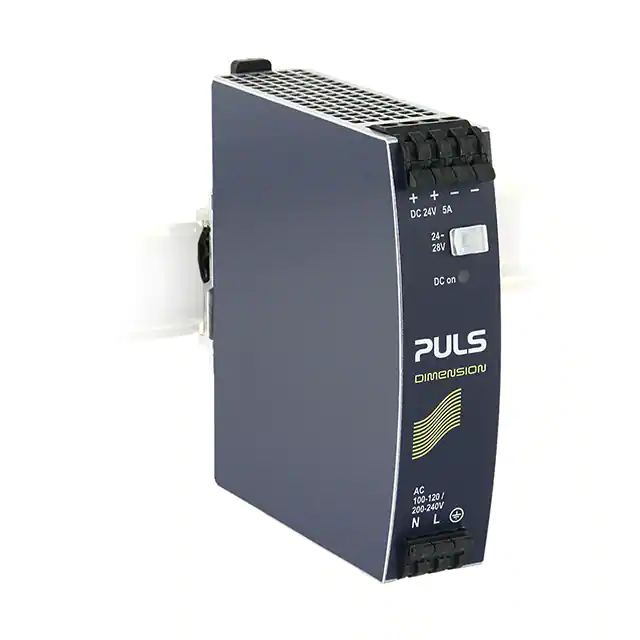

CS5.241-S1AC/DC DIN RAIL SUPPLY 24V 120W |
4 |
|
规格书 |
DIMENSION C (120W) | Box | Active | AC | 1 | 100 ~ 120 VAC, 200 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 500 V | ITE (Commercial) | 90.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
2787-2146AC/DC DIN RAIL SUPPLY 24V 240W |
18 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 130V | 240V | 24V | - | - | - | - | - | 10A | 240W | 3.51 kV | Laboratory | 95.2% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | CE, UL | 61010-1 |
|
1469510000AC/DC DIN RAIL SUPPLY 24V 480W |
17 |
|
规格书 |
PRO ECO (480W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CE, cULus | - |
|
ML100.200AC/DC DIN RAIL SUPPLY 24V 100W |
12 |
|
规格书 |
MiniLine (100W) | Box | Active | AC | 1 | 380 ~ 480 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 4.2A | 100W | - | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | ABS, DNV GL, EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
TSP 360-124AC/DC DIN RAIL SUPPLY 24V 360W |
25 |
|
规格书 |
TSP (360W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 15A | 360W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | CB, CE, cURus, SIQ | - |
|
2904608AC/DC DIN RAIL SUPPLY 12V |
22 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 12V | - | - | - | - | - | 15A | - | 4 kV | Hazardous Locations, Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | IP20 | CSA, UL | Class I Div 2; 508; 60950-1 |
|
S8FS-G30024CDAC/DC DIN RAIL SUPPLY 24V 300W |
22 |
|
规格书 |
S8FS-G (300W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 14A | 300W | 3 kV | ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cURus, TUV, UL | - |
|
DRF480-24-1AC/DC DIN RAIL SUPPLY 24V 480W |
21 |
|
规格书 |
DRF (120-480W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 125V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Universal Input | CE | - |
|
1478190000AC/DC DIN RAIL SUPPLY 24V 480W |
5 |
|
规格书 |
PRO MAX3 (480W) | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC | 450V | 800V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | Industrial, ITE (Commercial) | 91.5% | -25°C ~ 70°C | Adjustable Output, IP20 | CE, cULus, cuRus, EAC, TUV | - |
|

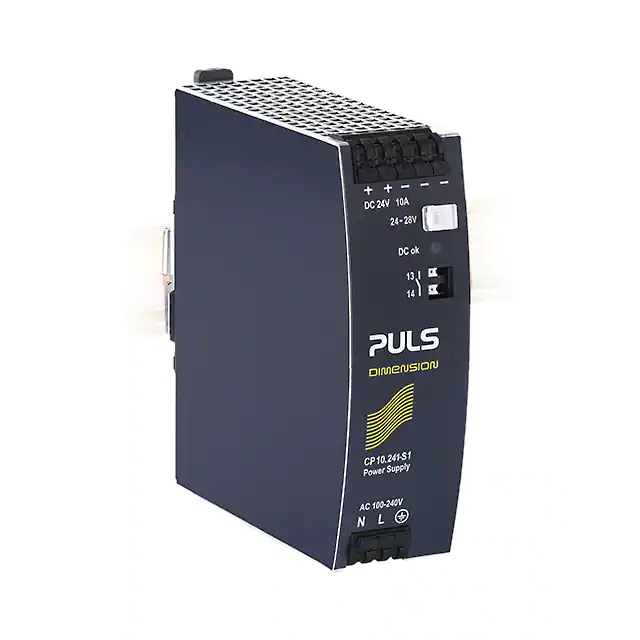

CP10.241-S1AC/DC DIN RAIL SUPPLY 24V 240W |
25 |
|
规格书 |
DIMENSION CP (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Hazardous Locations, ITE (Commercial) | 95.2% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

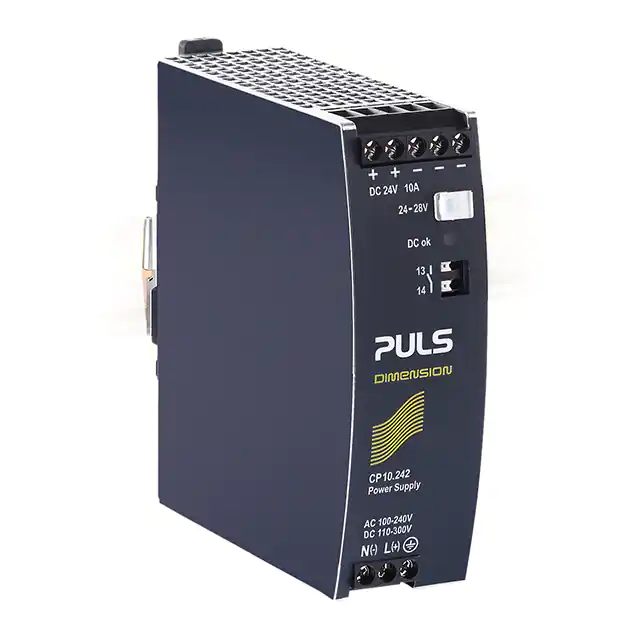

CP10.242AC/DC DIN RAIL SUPPLY 24V 240W |
14 |
|
规格书 |
DIMENSION CP (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Hazardous Locations, ITE (Commercial) | 95.2% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | ABS, ATEX, DNV GL, EAC, IEC, IECEx, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|

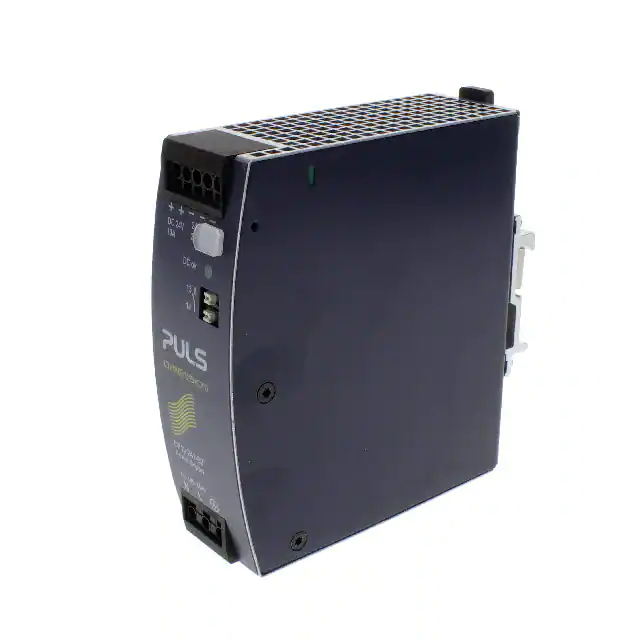

CP10.241-S2AC/DC DIN RAIL SUPPLY 24V 240W |
7 |
|
规格书 |
DIMENSION CP (240W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 10A | 240W | 500 V | Industrial, ITE (Commercial) | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 60950-1; 61010-2-201; 62368-1 |
|
2320034DC/DC DIN RAIL SUPPLY 24V 120W |
19 |
|
规格书 |
Quint | Bulk | Active | DC | 1 | - | 18V | 32V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 92% | -25°C ~ 60°C | - | cULus | - |
|
1159045PRIMARY-SWITCHED POWER SUPPLY UN |
15 |
|
规格书 |
- | Box | Active | AC | 1 | 320 ~ 550 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | 4 kV | Laboratory | 95.71% | -25°C ~ 70°C (With Derating) | PFC | CB, cULus | 61010-1 |
|
|
1252697PRIMARY-SWITCHED POWER SUPPLY UN |
11 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 264V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Laboratory | 93.49% | -25°C ~ 70°C (With Derating) | PFC, Universal Input | cULus | 61010-1 |
|

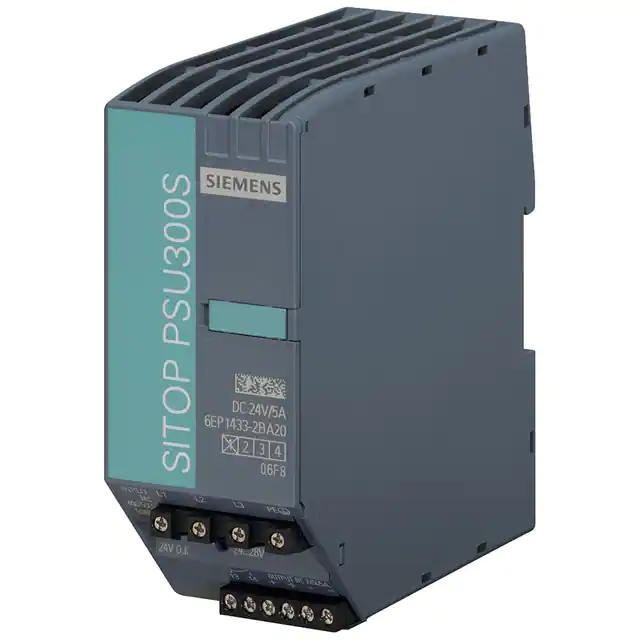

6EP14332BA20AC/DC DIN RAIL SUPPLY 24V 120W |
8 |
|
规格书 |
6EP1 | Bulk | Active | AC | 1 | 400 ~ 500 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 89.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
|
2910123QUINT4-PS/24DC/48DC/5/PT |
5 |
|
规格书 |
Quint4 | Bulk | Active | DC | 1 | - | 18V | 33.6V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | Laboratory | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC | CB, CSA, cULus, SIQ, UL | 61010-1 |
