工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLP120-24-1/EAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
规格书 |
DLP120 (120W) | Bulk | Obsolete | AC | 1 | 85 ~ 132 VAC, 170 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial) | 85% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CE | - |
|
DLP180-24-1/EAC/DC DIN RAIL SUPPLY 24V 180W |
0 |
|
规格书 |
DLP180 (180W) | Bulk | Obsolete | AC | 1 | 85 ~ 132 VAC, 170 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 7.5A | 180W | 3 kV | ITE (Commercial) | 87% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CE | - |
|
VDRS-40-12AC/DC DIN RAIL SUPPLY 12V 40W |
0 |
|
规格书 |
VDRS-40 (41W) | Box | Obsolete | AC | 1 | 88 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 3.4A | 40W | 3 kV | ITE (Commercial) | 84% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, TUV | - |
|
DRP012V015W1AZAC/DC DIN RAIL SUPPLY 12V 15W |
0 |
|
规格书 |
CliQ (15W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 1.25A | 15W | 4 kV | ITE (Commercial) | 84% | -20°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2 |
|

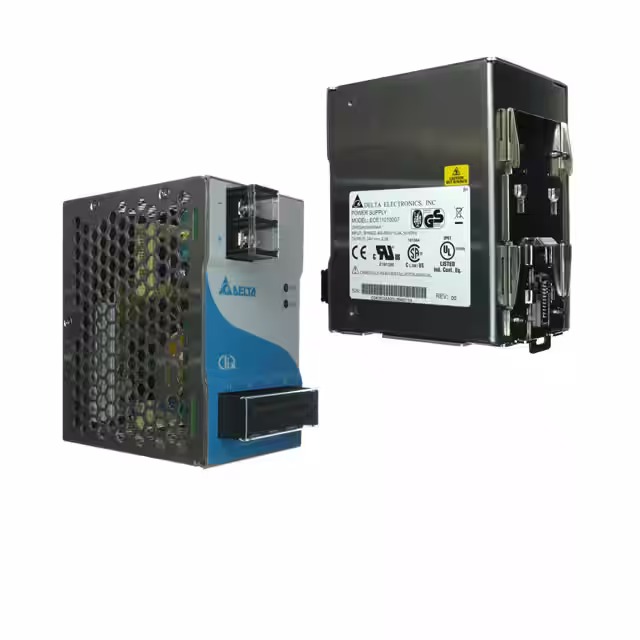

DRP024V060W3AAAC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
规格书 |
CliQ (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 86% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | cCSAus, CE, cULus, cURus | - |
|

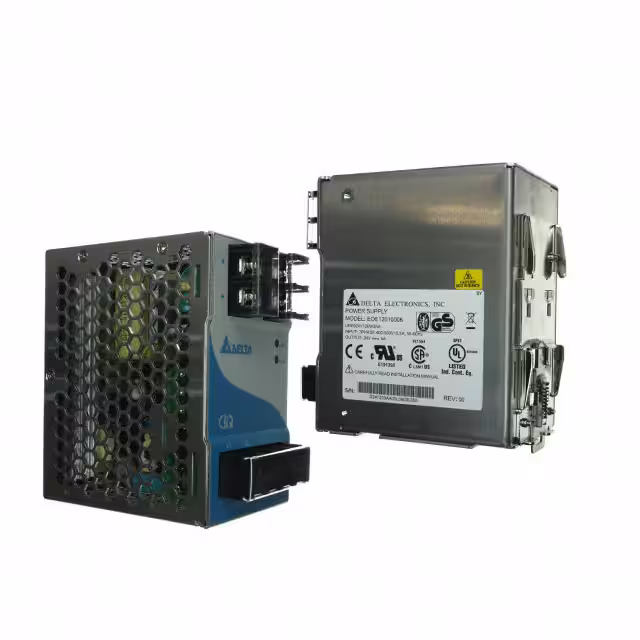

DRP024V120W3AAAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
规格书 |
CliQ (120W) | Box | Obsolete | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial) | 86% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | cCSAus, CE, cULus, cURus | - |
|

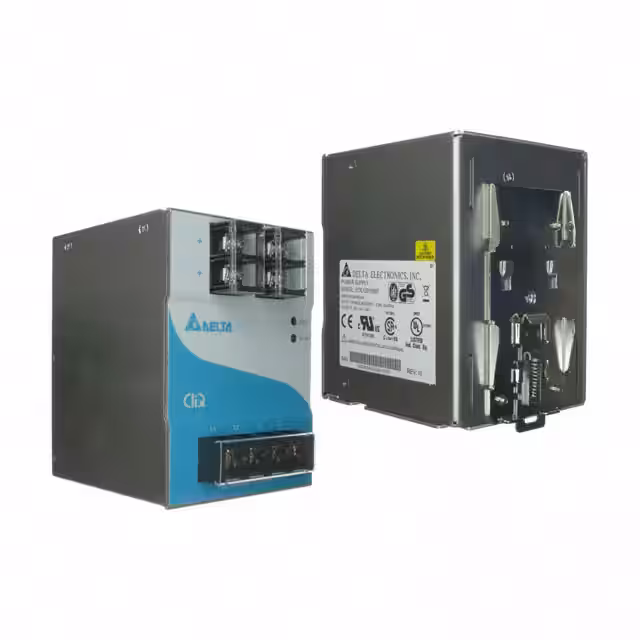

DRP024V240W3AAAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
规格书 |
CliQ (240W) | Box | Obsolete | AC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 87% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | cCSAus, CE, cULus, cURus | - |
|
DRP024V480W3AAAC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
规格书 |
CliQ (480W) | Box | Obsolete | AC or DC | 1 | 320 ~ 575 VAC (3 Phase) | 450V | 800V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 87% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | cCSAus, CE, cULus, cURus | - |
|
RAC05-05DA-STAC/DC DIN RAIL SUPPLY +/-5V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 2 | 90 ~ 264 VAC | - | - | 5V | -5V | - | - | - | - | 500mA, 500mA | 5W | 3 kV | ITE (Commercial) | 70% | -25°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-05SA-E-STAC/DC DIN RAIL SUPPLY 5V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 1A | 5W | 3 kV | ITE (Commercial) | 65% | -40°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-05SA-STAC/DC DIN RAIL SUPPLY 5V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 1A | 5W | 3 kV | ITE (Commercial) | 65% | -25°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-05SB-STAC/DC DIN RAIL SUPPLY 5V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 1A | 5W | 3 kV | ITE (Commercial) | 72% | -25°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-12DA-E-STAC/DC DIN RAIL SUPPLY +/-12V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 2 | 90 ~ 264 VAC | - | - | 12V | -12V | - | - | - | - | 200mA, 200mA | 5W | 3 kV | ITE (Commercial) | 67% | -40°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-12SA-E-STAC/DC DIN RAIL SUPPLY 12V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 416mA | 5W | 3 kV | ITE (Commercial) | 70% | -40°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-12SA-STAC/DC DIN RAIL SUPPLY 12V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 416mA | 5W | 3 kV | ITE (Commercial) | 70% | -25°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-12SB-E-STAC/DC DIN RAIL SUPPLY 12V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 420mA | 5W | 3 kV | ITE (Commercial) | 73% | -40°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-12SB-STAC/DC DIN RAIL SUPPLY 12V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 420mA | 5W | 3 kV | ITE (Commercial) | 73% | -25°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-15SA-STAC/DC DIN RAIL SUPPLY 15V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 333mA | 5W | 3 kV | ITE (Commercial) | 70% | -25°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-15SB-STAC/DC DIN RAIL SUPPLY 15V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Tube | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 333mA | 5W | 3 kV | ITE (Commercial) | 75% | -25°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
|
|
RAC05-24SA-E-STAC/DC DIN RAIL SUPPLY 24V 5W |
0 |
|
规格书 |
POWERLINE RAC05-A (5W) | Box | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 200mA | 5W | 3 kV | ITE (Commercial) | 71% | -40°C ~ 70°C (With Derating) | Universal Input | CE, cURus | - |
