工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRS-240-24AC/DC DIN RAIL SUPPLY 24V 240W MEAN WELL USA Inc. |
12 |
|
规格书 |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|

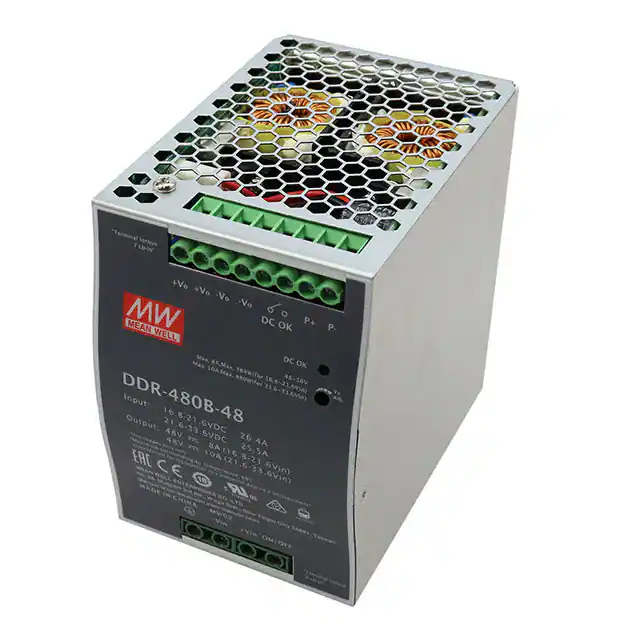

DDR-480B-48DC/DC DIN RAIL SUPPLY 48V 480W MEAN WELL USA Inc. |
18 |
|
规格书 |
DDR-480 (480W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial), Railway | 90.5% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|

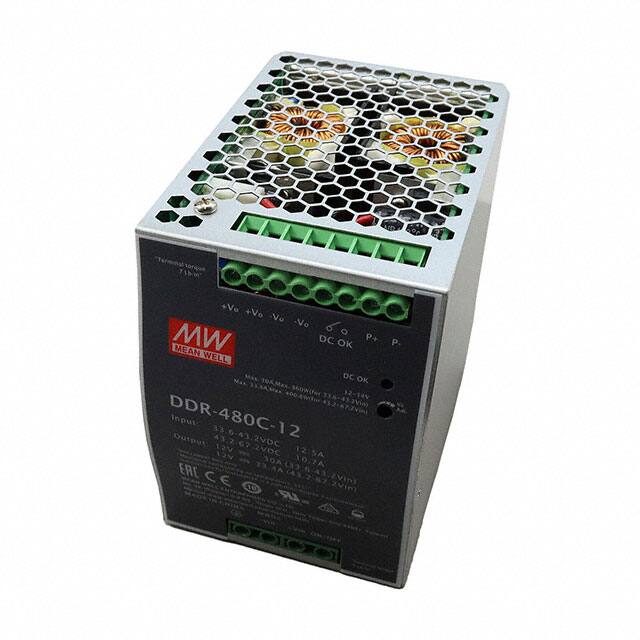

DDR-480C-12DC/DC DIN RAIL SUPPLY 12V 401W MEAN WELL USA Inc. |
7 |
|
规格书 |
DDR-480 (480W) | Box | Active | DC | 1 | - | 33.6V | 67.2V | 12V | - | - | - | - | - | 33.4A | 401W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|
DDR-480B-24DC/DC DIN RAIL SUPPLY 24V 480W MEAN WELL USA Inc. |
0 |
|
规格书 |
DDR-480 (480W) | Box | Active | DC | 1 | - | 16.8V | 33.6V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
|
DRS-480-48AC/DC DIN RAIL SUPPLY 48V 480W MEAN WELL USA Inc. |
6 |
|
规格书 |
DRS-480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 48V | - | - | - | - | - | 10A | 480W | 4 kV | ITE (Commercial) | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
|
DRS-480-24AC/DC DIN RAIL SUPPLY 24V 480W MEAN WELL USA Inc. |
0 |
|
规格书 |
DRS-480 (480W) | Box | Active | AC or DC | 1 | 90 ~ 305 VAC | 127V | 431V | 24V | - | - | - | - | - | 20A | 480W | 4 kV | ITE (Commercial) | 92.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|
HDR-30-48AC/DC DIN RAIL SUPPLY 48V 36W MEAN WELL USA Inc. |
0 |
|
规格书 |
HDR-30 (30W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 750mA | 36W | 4 kV | Industrial, ITE (Commercial) | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
MDR-10-12AC/DC DIN RAIL SUPPLY 12V 10W MEAN WELL USA Inc. |
66 |
|
规格书 |
MDR-10 (10W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 840mA | 10W | 3 kV | Industrial, ITE (Commercial) | 81% | -20°C ~ 70°C (With Derating) | Universal Input | CB, CE, cURus, TUV | - |
|
|
MDR-10-5AC/DC DIN RAIL SUPPLY 5V 10W MEAN WELL USA Inc. |
84 |
|
规格书 |
MDR-10 (10W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 2A | 10W | 3 kV | Industrial, ITE (Commercial) | 77% | -20°C ~ 70°C (With Derating) | Universal Input | CB, CE, cURus, TUV | - |
|
|
MDR-10-15AC/DC DIN RAIL SUPPLY 15V 10W MEAN WELL USA Inc. |
86 |
|
规格书 |
MDR-10 (10W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 670mA | 10W | 3 kV | Industrial, ITE (Commercial) | 81% | -20°C ~ 70°C (With Derating) | Universal Input | CB, CE, cURus, TUV | - |
