工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJA100F-24-N2AC/DC DIN RAIL SUPPLY 24V 103W |
0 |
|
规格书 |
PJA (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4.3A | 103W | 3 kV | ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Universal Input | CE, CSA, cURus, DEMKO, UL | 508; 60950-1; 62368-1 |
|
KLNA120F-24AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
规格书 |
KLNA (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 90% | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | CE, cULus, cURus, DEMKO | 60950-1 |
|

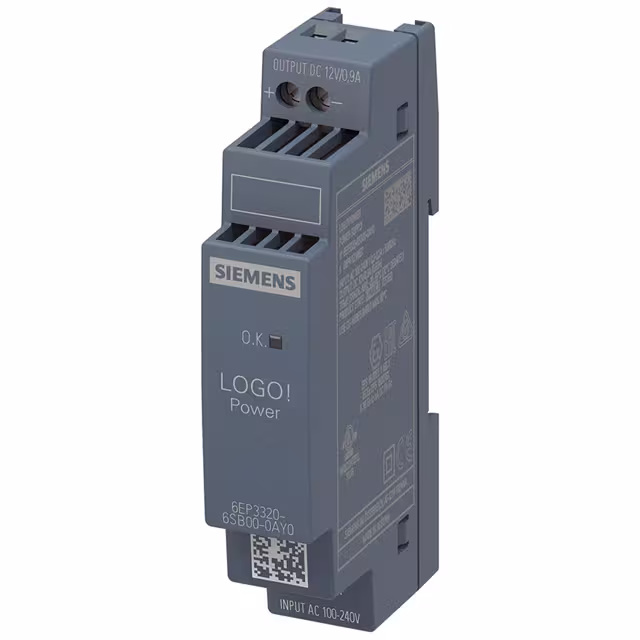

6EP33206SB000AY0DC/DC DIN RAIL SUPPLY 12V |
0 |
|
规格书 |
6EP3 | Box | Active | DC | 1 | - | 110V | 300V | 12V | - | - | - | - | - | 900mA | - | - | Industrial, ITE (Commercial) | 78% | -25°C ~ 70°C | Adjustable Output, IP20 | cCSAus, CE, CSA, cULus, cURus, EAC, UL | 60950-1; UL 508 |
|

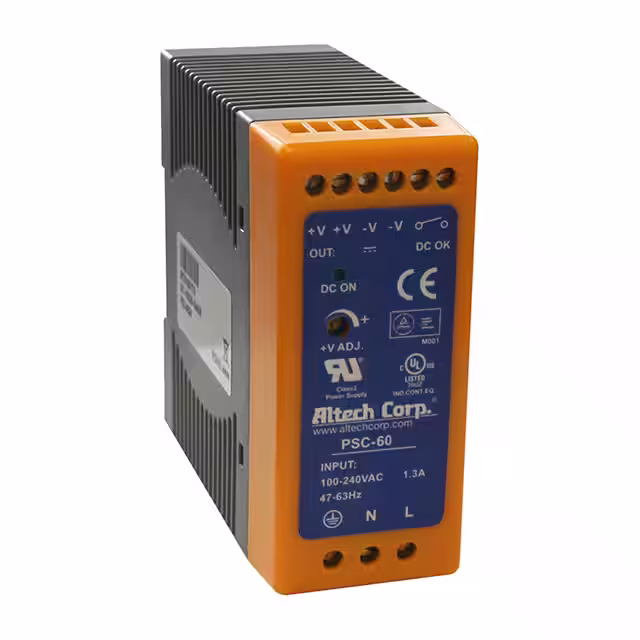

PSC-6024AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
规格书 |
PSC-60 (60W) | Box | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 4.242 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, TUV, UR | 508; 60950-1 |
|
DRS-24V100W1ARAC/DC DIN RAIL SUPPLY 24V 100W |
0 |
|
规格书 |
Sync (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 4A | 100W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
DSR75PS24AC/DC DIN RAIL SUPPLY 24V 77W |
0 |
|
规格书 |
DSR75 (75W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.2A | 77W | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cURus, cULus, TUV | 62368-1 |
|
|
WDA90F-48AC/DC POWER SUPPLY, DIN RAIL |
0 |
|
- |
WDA (90W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 1.9A | 91W | 3 kV | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cURus, DEMKO, UKCA | 62368-1 |
|
|
WDA90F-24AC/DC POWER SUPPLY, DIN RAIL |
0 |
|
- |
WDA (90W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cURus, DEMKO, UKCA | 62368-1 |
|
|
WDA90F-12AC/DC POWER SUPPLY, DIN RAIL |
0 |
|
- |
WDA (90W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 7.5A | 90W | 3 kV | ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cURus, DEMKO, UKCA | 62368-1 |
|
DRP012V100W1AAAC/DC DIN RAIL SUPPLY 12V 100W |
0 |
|
规格书 |
CliQ (100W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8.33A | 100W | 4 kV | ITE (Commercial) | 87% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2 |
|
|
PJA100F-12-N2AC/DC DIN RAIL SUPPLY 12V 101W |
0 |
|
规格书 |
PJA (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 8.4A | 101W | 3 kV | ITE (Commercial) | 85% | -20°C ~ 70°C (With Derating) | Universal Input | CE, CSA, cURus, DEMKO, UL | 508; 60950-1; 62368-1 |
|
|
PJA100F-15-N2AC/DC DIN RAIL SUPPLY 15V 101W |
0 |
|
规格书 |
PJA (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 15V | - | - | - | - | - | 6.7A | 101W | 3 kV | ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Universal Input | CE, CSA, cURus, DEMKO, UL | 508; 60950-1; 62368-1 |
|
|
PJA100F-36-N2AC/DC DIN RAIL SUPPLY 36V 101W |
0 |
|
规格书 |
PJA (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 36V | - | - | - | - | - | 2.8A | 101W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Universal Input | CE, CSA, cURus, DEMKO, UL | 508; 60950-1; 62368-1 |
|
|
PJA100F-48-N2AC/DC DIN RAIL SUPPLY 48V 101W |
0 |
|
规格书 |
PJA (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.1A | 101W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Universal Input | CE, CSA, cURus, DEMKO, UL | 508; 60950-1; 62368-1 |
|
PS-S6005AC/DC DIN RAIL SUPPLY 5V 50W |
0 |
|
- |
PS-S60 (60W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 10A | 50W | 3 kV | Industrial, ITE (Commercial) | 78% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus | 508; 60950-1 |
|
|
PS-S6012AC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
- |
PS-S60 (60W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 5A | 60W | 3 kV | Industrial, ITE (Commercial) | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus | 508; 60950-1 |
|
|
PS-6005AC/DC DIN RAIL SUPPLY 5V 32W |
0 |
|
- |
PS-60 (60W) | Bulk | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 5V | - | - | - | - | - | 6.5A | 32W | 3 kV | ITE (Commercial) | 76% | -20°C ~ 60°C (With Derating) | Universal Input | CE, cURus | 60950-1 |
|
|
PS-6012AC/DC DIN RAIL SUPPLY 12V 54W |
0 |
|
- |
PS-60 (60W) | Bulk | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 12V | - | - | - | - | - | 4.5A | 54W | 3 kV | ITE (Commercial) | 82% | -20°C ~ 60°C (With Derating) | Universal Input | CE, cURus | 60950-1 |
|
|
PS-6024AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
- |
PS-60 (60W) | Bulk | Obsolete | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 84% | -20°C ~ 60°C (With Derating) | Universal Input | CE, cURus | 60950-1 |
|
|
PS-S6048AC/DC DIN RAIL SUPPLY 48V 60W |
0 |
|
- |
PS-S60 (60W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 1.25A | 60W | 3 kV | Industrial, ITE (Commercial) | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cULus | 508; 60950-1 |
