工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYBE30-Q48-S5-DINDC/DC DIN RAIL SUPPLY 5V 30W |
0 |
|
规格书 |
PYBE30 (30W) | Tray | Not For New Designs | DC | 1 | - | 18V | 75V | 5V | - | - | - | - | - | 6A | 30W | 1.5 kV | ITE (Commercial) | 87% | -40°C ~ 80°C (With Derating) | Adjustable Output, Remote On/Off | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 |
|
PYBE30-Q24-S15H-DINDC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
规格书 |
PYBE30 (30W) | Tray | Not For New Designs | DC | 1 | - | 9V | 36V | 15V | - | - | - | - | - | 2A | 30W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 80°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | CE, cURus, UKCA | 60950-1; 62368-1 |
|
|
PYBE30-Q48-S15H-DINDC-DC ISOLATED, 30 W, 18~75 VDC |
0 |
|
规格书 |
PYBE30 (30W) | Tray | Not For New Designs | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 2A | 30W | 1.5 kV | ITE (Commercial) | 89% | -40°C ~ 80°C (With Derating) | Heat Sink | CE, cURus, UKCA | 62368-1 |
|
PYBE20-Q24-S24-DINDC/DC DIN RAIL SUPPLY 24V 20W |
1 |
|
规格书 |
PYBE20 (20W) | Tray | Not For New Designs | DC | 1 | - | 9V | 36V | 24V | - | - | - | - | - | 834mA | 20W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 85°C (With Derating) | Adjustable Output, Remote On/Off | CE, cURus | - |
|

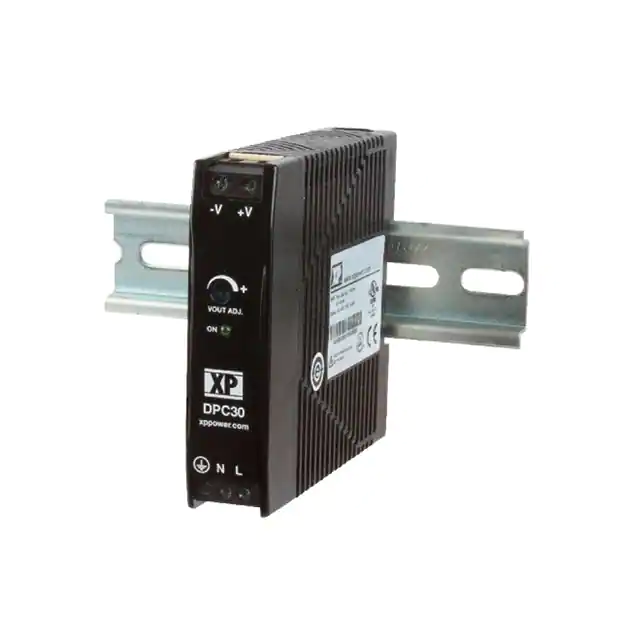

DPC30US12AC/DC DIN RAIL SUPPLY 12V 30W |
4 |
|
规格书 |
DPC30 (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2A | 30W | 3 kV | ITE (Commercial) | 85% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE | - |
|
|
DPC30US24AC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
规格书 |
DPC30 (30W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 1.25A | 30W | 3 kV | ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE | - |
|
|
LH60-20B24A6ENCLOSED AC DC CONVERTER 1 OUTOU |
0 |
|
- |
LH60 (60W) | Tray | Obsolete | DC | 2 | - | 122V | 370V | 24V | -24V | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 86% | -40°C ~ 70°C | Adjustable Output, Remote On/Off | CB, CE, cURus | 60950-1 |
|
|
LH60-20B12A6ENCLOSED AC DC CONVERTER 1 OUTOU |
0 |
|
- |
LH60 (60W) | Tray | Obsolete | DC | 2 | - | 122V | 370V | 12V | -12V | - | - | - | - | 5A | 60W | 4 kV | ITE (Commercial) | 86% | -40°C ~ 70°C | Adjustable Output, Remote On/Off | CB, CE, cURus | 60950-1 |
|
DRP012V060W1AAAC/DC DIN RAIL SUPPLY 12V 60W |
0 |
|
规格书 |
CliQ (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | 4 kV | ITE (Commercial) | 86% | -20°C ~ 80°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2 |
|
PQAE50-D48-S12-DINHDC/DC DIN RAIL SUPPLY 12V 50W |
0 |
|
规格书 |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 12V | - | - | - | - | - | 4.167A | 50W | 1.5 kV | ITE (Commercial) | 92% | -40°C ~ 105°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | CE | 62368-1 |
|
|
PQAE50-D48-S15-DINHDC/DC DIN RAIL SUPPLY 15V 50W |
0 |
|
规格书 |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 15V | - | - | - | - | - | 3.333A | 50W | 1.5 kV | ITE (Commercial) | 92% | -40°C ~ 105°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | CE | 62368-1 |
|
|
PQAE50-D48-S24-DINHDC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
规格书 |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 24V | - | - | - | - | - | 2.083A | 50W | 1.5 kV | ITE (Commercial) | 92% | -40°C ~ 105°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | CE | 62368-1 |
|
|
PQAE50-D48-S3-DINHDC/DC DIN RAIL SUPPLY 3.3V 33W |
0 |
|
规格书 |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 3.3V | - | - | - | - | - | 10A | 33W | 1.5 kV | ITE (Commercial) | 91% | -40°C ~ 105°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | CE | 62368-1 |
|
|
PQAE50-D48-S5-DINHDC/DC DIN RAIL SUPPLY 5V 50W |
0 |
|
规格书 |
PQAE50 (50W) | Tray | Not For New Designs | DC | 1 | - | 36V | 75V | 5V | - | - | - | - | - | 10A | 50W | 1.5 kV | ITE (Commercial) | 91% | -40°C ~ 105°C (With Derating) | Adjustable Output, Heat Sink, Remote On/Off | CE | 62368-1 |
|
|
DRP024V060W1AAAC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
规格书 |
CliQ (60W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 87% | -20°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SEMI, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|
DRS-12V50W1NRAC/DC DIN RAIL SUPPLY 12V 50W |
0 |
|
规格书 |
Sync (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 4A | 50W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
DRS-24V50W1NRAC/DC DIN RAIL SUPPLY 24V 50W |
0 |
|
规格书 |
Sync (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.1A | 50W | 3 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
|
120ACDRN_48SCAC-DC DIN RAIL |
0 |
|
- |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
120ACDRN_24SCAC-DC DIN RAIL |
0 |
|
- |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
120ACDRN_12SCAC-DC DIN RAIL |
0 |
|
- |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
