工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

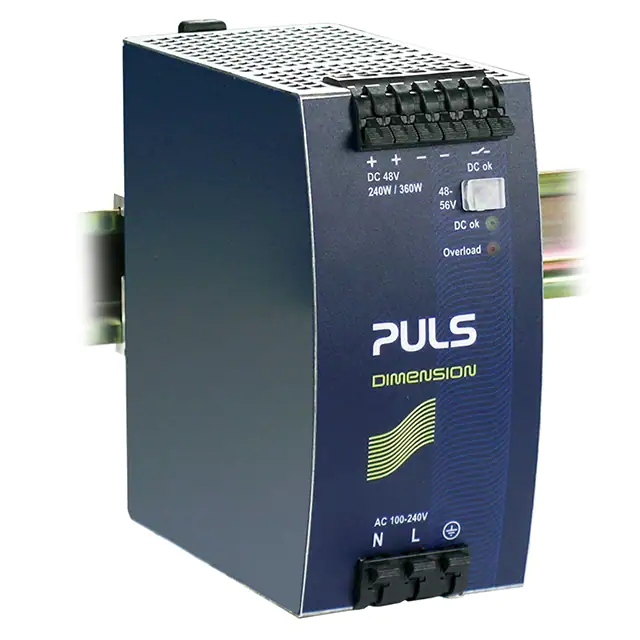

QS10.481AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
规格书 |
DIMENSION Q (240W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 500 V | ITE (Commercial) | 92% | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, CSA, DNV GL, EAC, IEC, UL | Class I Div 2; 508; 60950-1; 61010-2-201 |
|
S8VS-48024BAC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
规格书 |
S8VS (480W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 83% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, VDE | - |
|
S8VS-48024AAC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
规格书 |
S8VS (480W) | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 83% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CE, cULus, cURus, VDE | - |
|
DRA-60-24AC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
规格书 |
DRA-60 (60W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 3 kV | ITE (Commercial) | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CB, CE, cURus, TUV | - |
|
DLP-04RAC/DC DIN RAIL SUPPLY 16V 3.8W |
3 |
|
规格书 |
DLP-04 (4W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 16V | - | - | - | - | - | 240mA | 3.8W | 3 kV | ITE (Commercial) | - | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | CE, EAC, ENEC | - |
|
|
1285036PRIMARY-SWITCHED LED POWER SUPPL |
1 |
|
规格书 |
- | Box | Active | - | 1 | - | - | - | 24V | - | - | - | - | - | - | 90W | - | Laboratory | 92.5% | -10°C ~ 50°C | DC Input Capable, Universal Input | cULus, EAC | 61010-1 |
|
|
DRL-24V120W1ENAC/DC DIN RAIL 24V 120W - LYTE2 |
5 |
|
规格书 |
DRL (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 3 kV | ITE (Commercial), Laboratory | 88.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
DTJ1524S12-DDC/DC DIN RAIL SUPPLY 12V 15W |
0 |
|
规格书 |
DTJ15 (15W) | Box | Active | DC | 1 | - | 9V | 36V | 12V | - | - | - | - | - | 1.25A | 15W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off | CB, UL | 62368-1 |
|
|
DTJ1524S05-DDC/DC DIN RAIL SUPPLY 5V 15W |
0 |
|
规格书 |
DTJ15 (15W) | Box | Active | DC | 1 | - | 9V | 36V | 5V | - | - | - | - | - | 3A | 15W | 3 kV | ITE (Commercial) | 84% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off | CB, UL | 62368-1 |
|
|
DRL-12V120W1ENAC/DC DIN RAIL 12V 120W - LYTE2 |
0 |
|
规格书 |
DRL (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 10A | 120W | 3 kV | ITE (Commercial), Laboratory | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
DTJ2024S05-DDC/DC DIN RAIL SUPPLY 5V 20W |
0 |
|
规格书 |
DTJ20 (20W) | Box | Active | DC | 1 | - | 9V | 36V | 5V | - | - | - | - | - | 4A | 20W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off | CB, UL | 62368-1 |
|
|
DTJ2024S12-DDC/DC DIN RAIL SUPPLY 12V 20W |
0 |
|
规格书 |
DTJ20 (20W) | Box | Active | DC | 1 | - | 9V | 36V | 12V | - | - | - | - | - | 1.67A | 20W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 100°C (With Derating) | Adjustable Output, Remote On/Off | CB, UL | 62368-1 |
|
|
DRL-12V240W1ENAC/DC DIN RAIL 12V 240W - LYTE2 |
0 |
|
规格书 |
DRL (240W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 20A | 240W | 3 kV | ITE (Commercial), Laboratory | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CCC, CE, cURus, EAC, KC, UKCA | 60950-1; 61010-1; 62368-1 |
|
DRP024V060W1BNAC/DC DIN RAIL SUPPLY 24V 60W |
0 |
|
规格书 |
CliQ II (60W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 90% | -20°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | F47, 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|
DDC3024S24DC/DC DIN RAIL SUPPLY 24V 30W |
0 |
|
规格书 |
DDC30 (30W) | Box | Active | DC | 1 | - | 9V | 36V | 24V | - | - | - | - | - | 1.25A | 30W | - | ITE (Commercial) | 85% | -40°C ~ 70°C | - | CB | 62368-1 |
|
|
DRF-24V120W1GBAAC/DC DIN RAIL 24V 120W COATED |
0 |
|
规格书 |
DRF (120W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | 4 kV | ITE (Commercial), Laboratory | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cURus, EAC, KC, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
DDRH-240-24250-1500VDC O/P +24V10A |
0 |
|
规格书 |
DDRH-240 (240W) | Box | Active | DC | 1 | - | 250V | 1500V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 90% | -40°C ~ 80°C (With Derating) | Adjustable Output | CB, CE, EAC, UKCA | - |
|
859-804DC/DC DIN RAIL SUPPLY 24V |
0 |
|
规格书 |
- | Box | Active | DC | 1 | - | 8V | 16V | 24V | - | - | - | - | - | 250mA | - | - | ITE (Commercial) | 83% | -25°C ~ 55°C | IP20 | CE | - |
|
|
DRF-12V240W1GBAAC/DC DIN RAIL 12V 240W COATED |
0 |
|
规格书 |
DRF (240W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 20A | 240W | 4 kV | ITE (Commercial), Laboratory | 93.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cURus, EAC, KC, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
LIF240-10B48R2AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
规格书 |
LIF240-10BxxR2 (240W) | Box | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial), Medical | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output | - | 61010-1; 62368-1 |
