图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 电压 - 集电极发射极击穿(最大值) | 电流 - 集电极 (Ic)(最大值) | 电流 - 集电极脉冲 (Icm) | 导通电压 (Vce(on))(最大值)@ Vge, Ic | 功率 - 最大值 | 开关能量 | 输入类型 | 栅极电荷 | 导通/关断时间 (Td) @ 25°C | 测试条件 | 反向恢复时间 (trr) | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IKW40N65H5AXKSA1IGBT 650V 74A 255W PG-TO247-3 Infineon Technologies |
0 |
|
![]() 规格书 |
TrenchStop™ | TO-247-3 | Tube | Obsolete | Trench | 650 V | 74 A | 120 A | 2.1V @ 15V, 40A | 250 W | 380µJ (on), 120µJ (off) | Standard | 92 nC | 20ns/153ns | 400V, 20A, 15Ohm, 15V | 75 ns | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3 |
|
IKW50N65F5AXKSA1IGBT 650V 80A 305W PG-TO247-3 Infineon Technologies |
0 |
|
![]() 规格书 |
TrenchStop™ | TO-247-3 | Tube | Obsolete | Trench | 650 V | 80 A | 150 A | 2.1V @ 15V, 50A | 270 W | 490µJ (on), 140µJ (off) | Standard | 108 nC | 21ns/156ns | 400V, 25A, 12Ohm, 15V | 77 ns | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3 |
|
IKW50N65H5AXKSA1IGBT 650V 80A 305W PG-TO247-3 Infineon Technologies |
0 |
|
![]() 规格书 |
TrenchStop™ | TO-247-3 | Tube | Obsolete | Trench | 650 V | 80 A | 150 A | 2.1V @ 15V, 50A | 270 W | 450µJ (on), 160µJ (off) | Standard | 116 nC | 21ns/173ns | 400V, 25A, 12Ohm, 15V | 58 ns | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3 |
![]() |

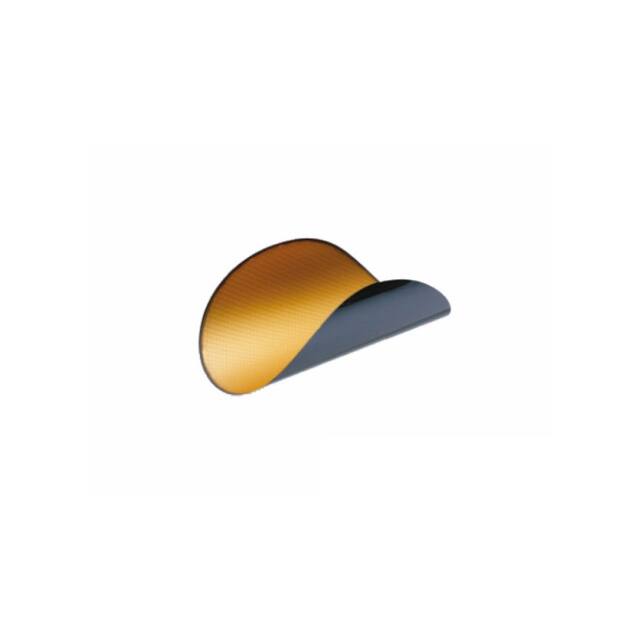

IGC07T120T8LX1SA2IGBT 1200V 4A SAWN ON FOIL Infineon Technologies |
0 |
|
![]() 规格书 |
TrenchStop™ | Die | Bulk | Discontinued at Digi-Key | Trench Field Stop | 1200 V | - | 12 A | 2.02V @ 15V, 4A | - | - | Standard | - | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | Die |
![]() |
IGC11T120T8LX1SA1IGBT 1200V 8A SAWN ON FOIL Infineon Technologies |
0 |
|
![]() 规格书 |
TrenchStop™ | Die | Bulk | Discontinued at Digi-Key | Trench Field Stop | 1200 V | - | 24 A | 2.07V @ 15V, 8A | - | - | Standard | - | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | Die |
![]() |
IGC13T120T8LX1SA1IGBT 1200V 10A SAWN ON FOIL Infineon Technologies |
0 |
|
![]() 规格书 |
TrenchStop™ | Die | Bulk | Active | Trench Field Stop | 1200 V | - | 30 A | 2.07V @ 15V, 8A | - | - | Standard | - | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | Die |
![]() |
IGC18T120T8LX1SA2IGBT 1200V 15A SAWN ON FOIL Infineon Technologies |
0 |
|
![]() 规格书 |
TrenchStop™ | Die | Bulk | Active | Trench Field Stop | 1200 V | - | 45 A | 2.07V @ 15V, 15A | - | - | Standard | - | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | Die |
![]() |
IGC18T120T8QX1SA1IGBT 1200V 15A DIE Infineon Technologies |
0 |
|
![]() 规格书 |
TrenchStop™ | Die | Bulk | Active | Trench Field Stop | 1200 V | - | 45 A | 2.42V @ 15V, 15A | - | - | Standard | - | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | Die |
![]() |
IGC27T120T8LX1SA2IGBT 1200V 25A DIE Infineon Technologies |
0 |
|
![]() 规格书 |
TrenchStop™ | Die | Bulk | Active | Trench Field Stop | 1200 V | - | 75 A | 2.07V @ 15V, 25A | - | - | Standard | - | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | Die |
![]() |
IGC27T120T8QX1SA1IGBT 1200V 25A DIE Infineon Technologies |
0 |
|
![]() 规格书 |
TrenchStop™ | Die | Bulk | Active | Trench Field Stop | 1200 V | - | 75 A | 2.42V @ 15V, 25A | - | - | Standard | - | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | Die |
