高频（RF）继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

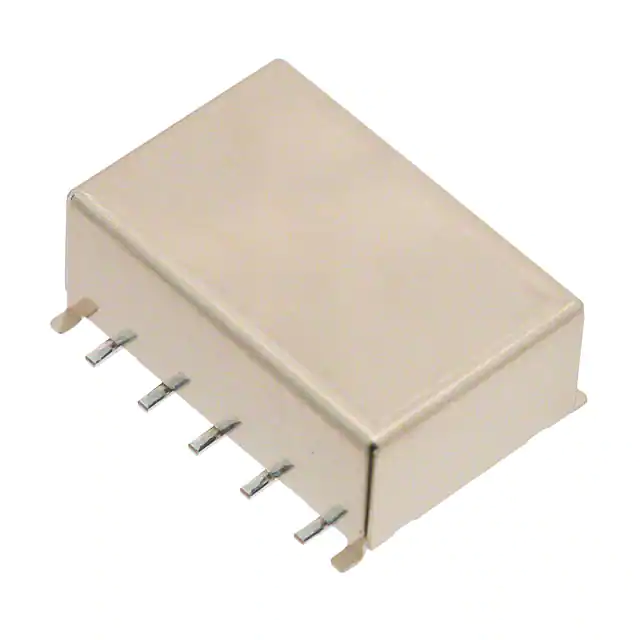

ARA200A05RELAY RF DPDT 1A 5V |
1,767 |
|
规格书 |
ARA | Tube | Active | Non Latching | 28.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
ARS14Y4HRELAY RF SPDT 500MA 4.5V |
506 |
|
规格书 |
ARS | Tube | Active | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6K-2F-RF-T DC5RELAY RF DPDT 1A 5V |
3,583 |
|
规格书 |
G6K-RF | Tray | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
1462050-2RELAY RF SPDT 2A 5V |
9,101 |
|
规格书 |
HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 28 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | 0.5 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
1462051-2RELAY RF SPDT 2A 5V |
239 |
|
规格书 |
HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 28 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | 0.5 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
G6K-2F-RF-T-TR03 DC12RELAY RF DPDT 1A 12V |
107 |
|
规格书 |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

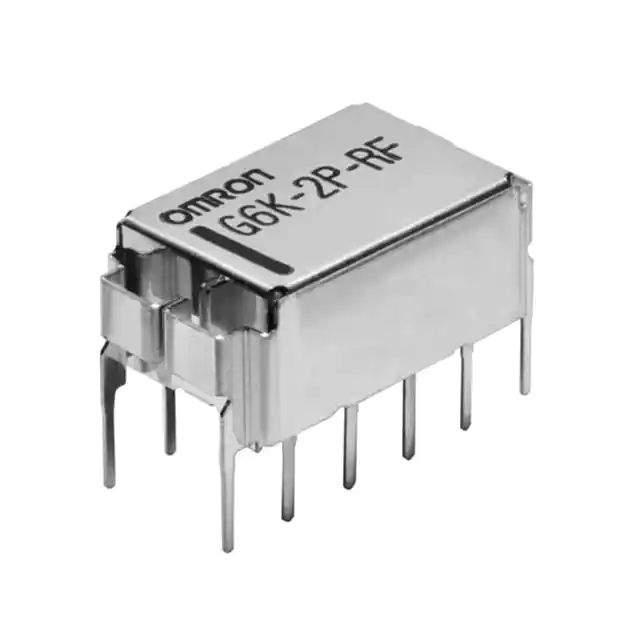

G6K-2P-RF DC5RELAY RF DPDT 1A 5V |
2,027 |
|
规格书 |
G6K-RF | Tube | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6K-2F-RF-T DC12RELAY RF DPDT 1A 12V |
3,290 |
|
规格书 |
G6K-RF | Tray | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6K-2F-RF-S-TR03 DC3RELAY RF DPDT 1A 3V |
444 |
|
规格书 |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.4 VDC | 0.3 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-S DC12RELAY RF DPDT 1A 12V |
5,964 |
|
规格书 |
G6K-RF | Tray | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-S DC5RELAY RF DPDT 1A 5V |
3,803 |
|
规格书 |
G6K-RF | Tray | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-S DC3RELAY RF DPDT 1A 3V |
250 |
|
规格书 |
G6K-RF | Tray | Active | Non Latching | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.4 VDC | 0.3 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6K-2F-RF DC5RELAY RF DPDT 1A 5V |
11,250 |
|
规格书 |
G6K-RF | Tray | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-S-TR03 DC5RELAY RF DPDT 1A 5V |
2,621 |
|
规格书 |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF DC5RELAY RF DPDT 1A 5V |
1,193 |
|
规格书 |
G6K-RF | Tray | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
1-1462051-4RELAY RF SPDT 2A 12V |
1,231 |
|
规格书 |
HF3, AXICOM | Tape & Reel (TR) | Active | Latching, Dual Coil | 11.7 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | - | 3 ms | 2 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|

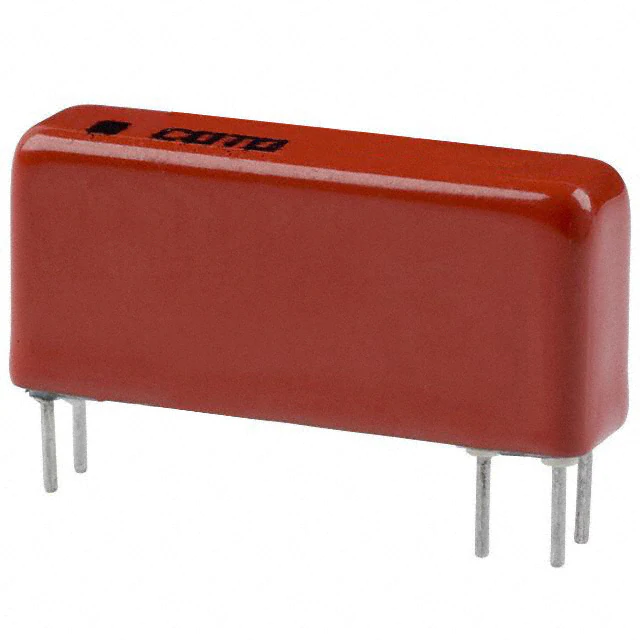

2341-05-020RELAY RF SPDT 500MA 5V |
3,358 |
|
规格书 |
2300 | Tube | Active | Non Latching | 21.7 mA | 5VDC | SPDT (1 Form C) | 500 mA | 200VAC, 200VDC - Max | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.5 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
2341-12-020RELAY RF SPDT 500MA 12V |
1,484 |
|
规格书 |
2300 | Tube | Active | Non Latching | 12 mA | 12VDC | SPDT (1 Form C) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | Sealed - Hermetically | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
2-1462051-3RELAY RF SPDT 2A 5V |
819 |
|
规格书 |
HF3S, AXICOM | Tape & Reel (TR) | Active | Non Latching | 28 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
G6KU-2F-RF-T DC5RELAY RF DPDT 1A 5V |
275 |
|
规格书 |
G6K-RF | Tray | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
