高频（RF）继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE71S8021SP6T, Electromechanical Relay No |
2 |
|
规格书 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE71S8022SP6T, Electromechanical Relay No |
2 |
|
规格书 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE71S8023SP6T, Electromechanical Relay No |
2 |
|
规格书 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE71S8018SP6T, Electromechanical Relay La |
2 |
|
规格书 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE71S8019SP6T, Electromechanical Relay La |
2 |
|
规格书 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE71S8020SP6T, Electromechanical Relay La |
2 |
|
规格书 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE71S8025SP6T, Terminated, Electromechani |
2 |
|
规格书 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE71S8024SP6T, Terminated, Electromechani |
2 |
|
规格书 |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

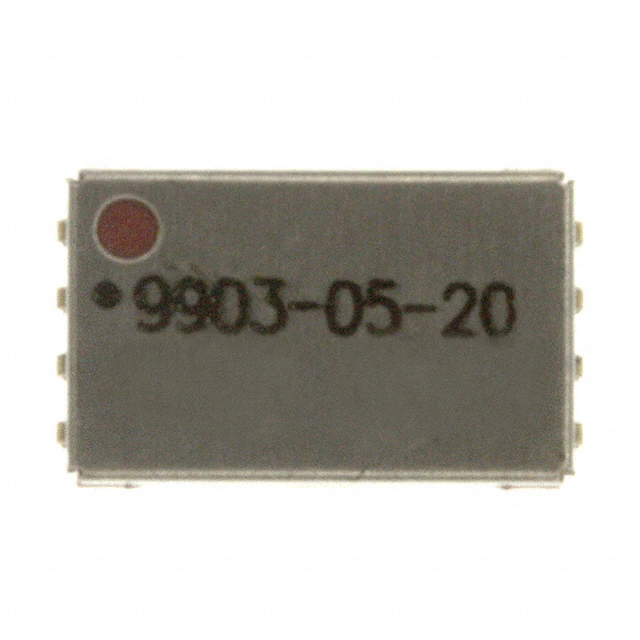

9903-05-20RELAY RF SPST-NO 250MA 5V |
0 |
|
规格书 |
9900 | Tube | Not For New Designs | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
1462051-5RELAY RF SPDT 2A 24V |
0 |
|
规格书 |
HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 5.8 mA | 24VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 18 VDC | 2.4 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
9002-12-01RELAY RF SPST-NO 500MA 12V |
0 |
|
规格书 |
9000 | Tube | Active | Non Latching | 16 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | Diode | Through Hole | PC Pin | -20°C ~ 85°C |
|
ARS1324RELAY RF SPDT 500MA 24V |
13 |
|
规格书 |
ARS | Bulk | Active | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 60°C |
|
|
9903-05-20TRRELAY RF SPST-NO 250MA 5V |
0 |
|
规格书 |
9900 | Tape & Reel (TR) | Not For New Designs | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
ARS304HRELAY RF SPDT 500MA 4.5V |
0 |
|
规格书 |
ARS | Bulk | Active | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
ARA200A03RELAY RF DPDT 1A 3V |
0 |
|
规格书 |
ARA | Tube | Active | Non Latching | 46.7 mA | 3VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
ARS12Y4HRELAY RF SPDT 500MA 4.5V |
21 |
|
规格书 |
ARS | Tube | Active | Latching, Dual Coil | 88.9 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARS1112RELAY RF SPDT 500MA 12V |
14 |
|
规格书 |
ARS | Bulk | Active | Latching, Single Coil | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARS14Y03RELAY RF SPDT 500MA 3V |
16 |
|
规格书 |
ARS | Tube | Active | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARS1612RELAY RF SPDT 500MA 12V |
25 |
|
规格书 |
ARS | Tray | Active | Latching, Dual Coil | 33.3 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARA200A4HRELAY RF DPDT 1A 4.5V |
0 |
|
规格书 |
ARA | Tube | Active | Non Latching | 31 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
