保险丝座
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 保险丝尺寸 | 电流额定值（安培） | 适用范围/相关产品 | 保险丝类型 | 保险丝座类型 | 电路数量 | 电压 | 方向 | 端接样式 | 触点材料 | 触点表面处理 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0031.2520FUSE HLDR CARTRIDGE 600V 30A PCB |
5,657 |
|
规格书 |
FUP | Bulk | Active | Through Hole | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 30 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 600V | Horizontal | PC Pin | Copper Alloy | Tin | - |
|
0MAB0001FFUSE BLOCK BLADE 60A CHASSIS MNT |
170 |
|
规格书 |
MAB1 | Bulk | Active | Chassis Mount | 1.161" L x 0.374" W (29.5mm x 9.5mm) | 60 A | Maxi (ATX) | Blade | Block | 1 | - | - | Screw Terminal | Copper Alloy | - | - |
|
0031.2203FUSE HLDR CART 600V 30A PNL MNT |
592 |
|
规格书 |
FIZ | Bulk | Active | Panel Mount | 0.197" Dia x 0.787" L (5mm x 20mm) | 30 A | 5mm x 20mm | Cartridge | Holder | 1 | 600V | - | Solder Lug | Copper | Tin | - |
|
03500417ZFUSE BLOCK BLADE 15A CHASSIS MNT |
215 |
|
规格书 |
350 | Bulk | Active | Chassis Mount | 0.75" L x 0.2" W (19.1mm x 5.1mm) | 15 A | ATC, ATO | Blade | Block | 5 | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - |
|

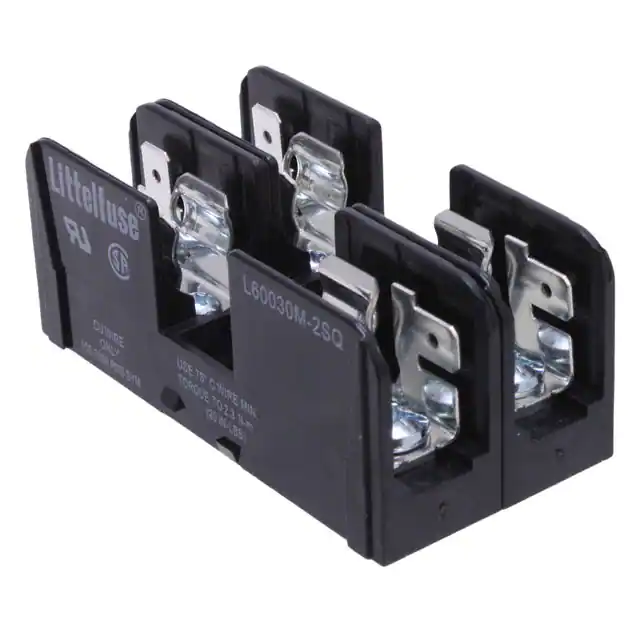

L60030M2SQFUSE BLOCK CART 600V 30A CHASSIS |
152 |
|
规格书 |
L600 | Box | Active | Chassis Mount | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Block | 2 | 600V | - | Screw Terminal, Quick Connect | Copper Alloy | Tin | - |
|
0031.2205FUSE HLDR CART 600V 30A PNL MNT |
1,533 |
|
规格书 |
FIZ | Bulk | Active | Panel Mount | 0.197" Dia x 0.787" L (5mm x 20mm) | 30 A | 5mm x 20mm | Cartridge | Holder | 1 | 600V | - | Quick Connect - 0.250" (6.3mm) | Copper | Tin | - |
|

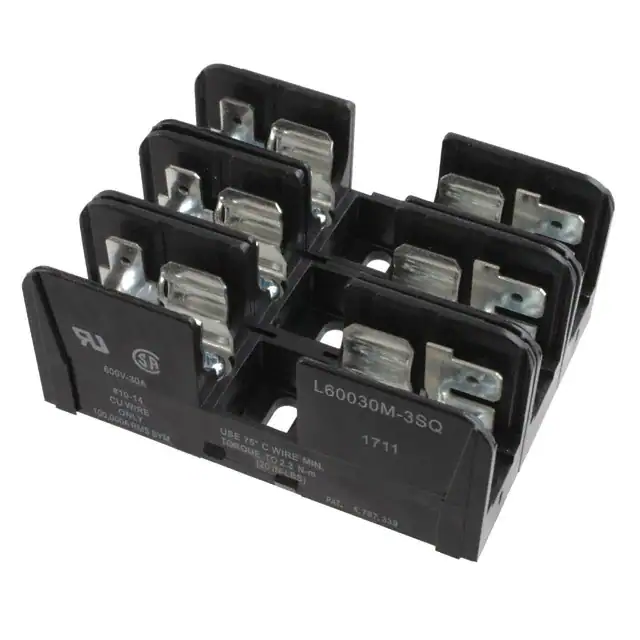

L60030M3SQFUSE BLOCK CART 600V 30A CHASSIS |
597 |
|
规格书 |
L600 | Box | Active | Chassis Mount | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Block | 3 | 600V | - | Screw Terminal, Quick Connect | Copper Alloy | Tin | - |
|

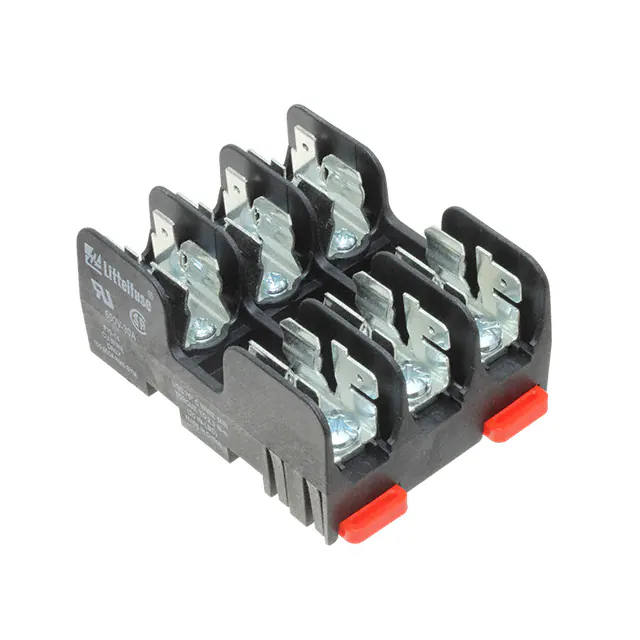

L60030M3SQDINRFUSE BLOK CART 600V 30A DIN RAIL |
168 |
|
规格书 |
L600 | Box | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Block | 3 | 600V | - | Screw Terminal, Quick Connect | Copper Alloy | Tin | - |
|
MAHC0001ZXJFUSE HLDR BLADE 32V 60A IN LINE |
160 |
|
规格书 |
- | Bulk | Active | Free Hanging (In-Line) | 1.161" L x 0.374" W (29.5mm x 9.5mm) | 60 A | Maxi (ATX) | Blade | Holder | 1 | 32V | - | Wire Leads | - | - | - |
|
04982001ZXFCFLEX MIDI-2POS ASSY NO FUSE |
129 |
|
规格书 |
MIDI® Flex | Bulk | Active | Chassis Mount | - | 200 A | MIDI (AMI) | Bolt Down | Holder | 2 | 58V | Horizontal and Vertical | Bolt Down | Steel | Zinc | - |
|

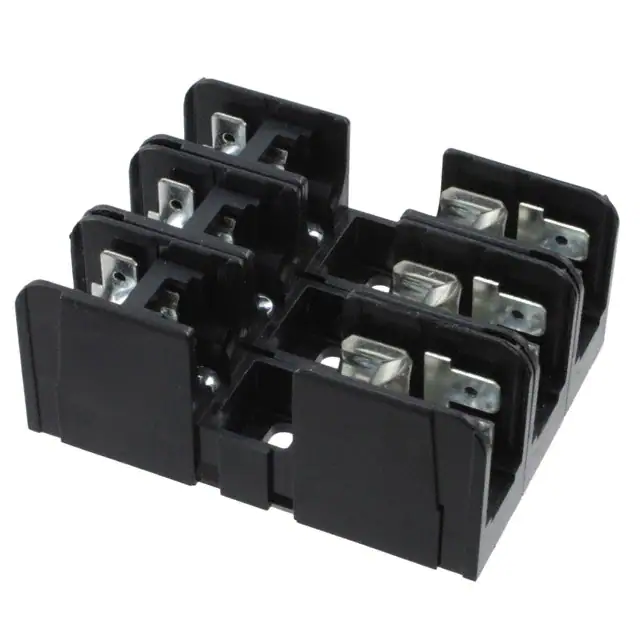

L60030M3PQFUSE BLOCK CART 600V 30A CHASSIS |
387 |
|
规格书 |
L600 | Box | Active | Chassis Mount | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Block | 3 | 600V | - | Screw Terminal, Pressure Plate, Quick Connect | Copper Alloy | Tin | - |
|
04980933.X3 WAY SEALED MIDI HLDR LOADED |
84 |
|
规格书 |
MDB | Bulk | Active | Chassis Mount | 1.614" L x 0.472" W x 0.327" H (41mm x 12mm x 8.3mm) | 200 A | MIDI (AMI) | Bolt Down | Power Distribution Module | 3 | 58V | Horizontal | Bolt Down | - | - | - |
|
BK/HFA-RFUSE HLDR CART 250V 20A IN LINE |
256 |
|
规格书 |
HFA | Box | Active | Free Hanging (In-Line) | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 20 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Holder | 1 | 250V | - | Crimp | Copper | Tin | - |
|
CHM1DUFUSE HLDR CART 600V 30A DIN RAIL |
90 |
|
规格书 |
CH | Bulk | Active | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 1 | 600V | - | Screw Terminal | - | - | - |
|
L60030M2CFUSE BLOCK CART 600V 30A CHASSIS |
265 |
|
规格书 |
L600 | Box | Active | Chassis Mount | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Block | 2 | 600V | - | Box Lug | Copper Alloy | Tin | - |
|
2297813-238P DIRECT WIRE FUSE (14X) & REL |
126 |
|
规格书 |
- | Box | Active | Chassis Mount - Bracket; Panel Mount | 0.433" L x 0.152" W (11.00mm x 3.85mm) | - | Miniature (ATM) | Blade | Block | 14 | - | Vertical | Quick Connect | - | - | - |
|
BK/S-8301-12-RFUSE BLOCK CART 600V CHASS MNT |
144 |
|
规格书 |
S-8000 | Bulk | Active | Chassis Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 30 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Block | 12 | 600V | - | Screw Terminal | Spring Bronze | Tin-Lead | - |
|
|
BK/HWA-AFFUSE HOLDER RAD 125V 35A PNL MNT |
294 |
|
规格书 |
HWA | Bulk | Active | Panel Mount | - | 35 A | Radial Can | Radial | Holder | 1 | 125V | - | Solder Lug | - | - | - |
|

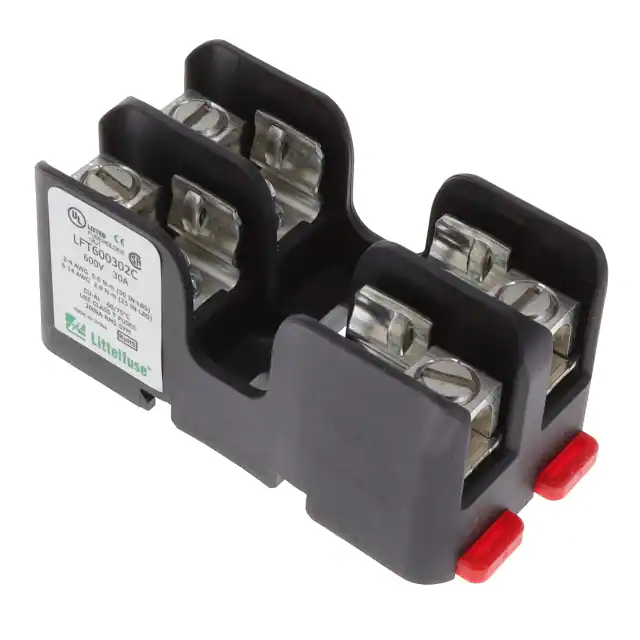

LFT600302CFUSE BLOK CART 600V 30A DIN RAIL |
45 |
|
规格书 |
LFT | Box | Active | DIN Rail | 0.563" Dia x 1.5" L (14.3mm x 38.1mm) | 30 A | Class T Fuses | Cartridge | Block | 2 | 600V | - | Box Lug | - | - | - |
|

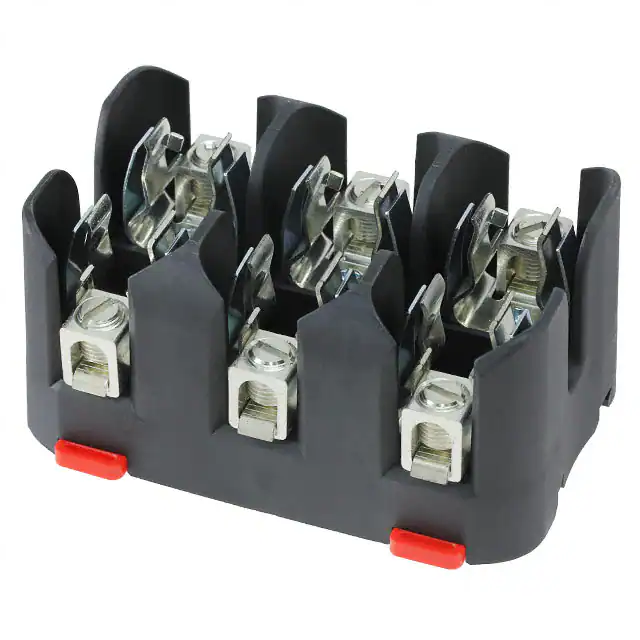

LFT600603CFUSE BLOK CART 600V 60A DIN RAIL |
486 |
|
规格书 |
LFT | Box | Active | DIN Rail | 0.813" Dia x 1.56" L (20.65mm x 39.7mm) | 60 A | Class T Fuses | Cartridge | Block | 3 | 600V | - | Box Lug | - | - | - |
