固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1107R1-R40-RFIXED IND 400NH 55A 0.29MOHM SMD Eaton - Electronics Division |
1,355 |
|
规格书 |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 400 nH | ±10% | 55 A | 25A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.295" (7.50mm) |
|
FP1007R6-R22-RFIXED IND 220NH 61A 0.29MOHM SMD Eaton - Electronics Division |
705 |
|
规格书 |
FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 61 A | 50A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.276" (7.00mm) |
|
MPIA4020V2-3R3-RFIXED IND 3.3UH 3.3A 85 MOHM SMD Eaton - Electronics Division |
5,714 |
|
规格书 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 3.3 A | 4A | Shielded | 85mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
HCM1A1305V2-150-RFIXED IND 15UH 6.5A 27.1MOHM SMD Eaton - Electronics Division |
399 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 6.5 A | 9.5A | Shielded | 27.1mOhm Max | - | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
MPIA4015V2-4R7-RFIXED IND 4.7UH 2.2A 130MOHM SMD Eaton - Electronics Division |
2,995 |
|
规格书 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 2.2 A | 3A | Shielded | 130mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.059" (1.50mm) |
|
HCP0805-R68-RFIXED IND 680NH 17.5A 4.5MOHM SM Eaton - Electronics Division |
18,713 |
|
规格书 |
HCP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 17.5 A | 25A | Shielded | 4.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.291" W (7.70mm x 7.40mm) | 0.197" (5.00mm) |
|

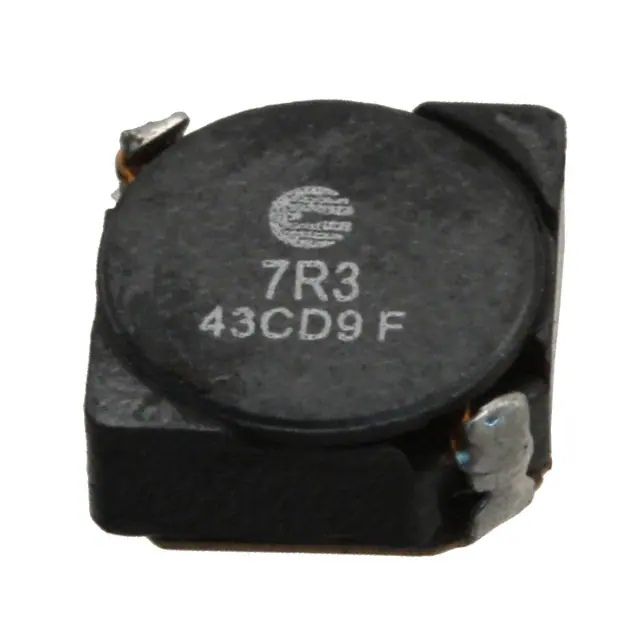

SD7030-7R3-RFIXED IND 7UH 2.3A 54 MOHM SMD Eaton - Electronics Division |
1,119 |
|
规格书 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 2.3 A | 2.1A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
|
HCM1A1305V2-3R3-RFIXED IND 3.3UH 12A 9.2 MOHM SMD Eaton - Electronics Division |
950 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 12 A | 19A | Shielded | 9.2mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
FP1308-R32-RFIXED IND 320NH 68A 0.24MOHM SMD Eaton - Electronics Division |
383 |
|
规格书 |
FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 320 nH | ±10% | 68 A | 45A | Unshielded | 0.24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | 0.315" (8.00mm) |
|
SD6020-470-RFIXED IND 47UH 610MA 595MOHM SMD Eaton - Electronics Division |
2,613 |
|
规格书 |
SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 610 mA | 540mA | Shielded | 595mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
