固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXLA1V0703-2R2-RIND MOLDED SHLD 2.2UH 10.0A Eaton - Electronics Division |
1,405 |
|
规格书 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 13 A | 17A | Shielded | 13.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
|
EXLA1V0703-6R8-RIND MOLDED SHLD 6.8UH 4.5A Eaton - Electronics Division |
1,370 |
|
规格书 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 6.8 A | 11A | Shielded | 42.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
MPI4015V2-1R0-RFIXED IND 1UH 5.5A 27 MOHM SMD Eaton - Electronics Division |
12,176 |
|
规格书 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 5.5 A | 6A | Shielded | 27mOhm Max | - | 56MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.059" (1.50mm) |
|

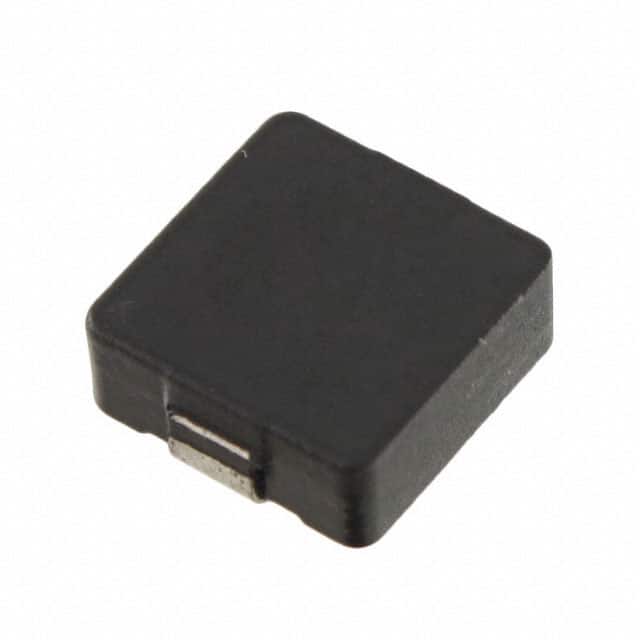

HCM1104-R36-RFIXED IND 360NH 30A 1.2 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 360 nH | ±20% | 30 A | 42A | Shielded | 1.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
HCM0703-150-RFIXED IND 14.9UH 2.2A 127MOHM SM Eaton - Electronics Division |
2,915 |
|
规格书 |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 14.9 µH | ±15% | 2.2 A | 5A | Shielded | 127mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM1104-1R5-RFIXED IND 1.5UH 16A 4.2 MOHM SMD Eaton - Electronics Division |
2,810 |
|
规格书 |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 16 A | 32A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
|
HCM0703-R82-RFIXED IND 820NH 13A 8 MOHM SMD Eaton - Electronics Division |
1,133 |
|
规格书 |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 820 nH | ±20% | 13 A | 24A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
EXLA1V0707-5R6-RIND MOLDED SHLD 5.6UH 8.5A Eaton - Electronics Division |
695 |
|
规格书 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 11.4 A | 12A | Shielded | 15.03mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
|
EXLA1V0707-1R8-RIND MOLDED SHLD 1.8UH 15.8A Eaton - Electronics Division |
532 |
|
规格书 |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.8 µH | ±20% | 21 A | 23A | Shielded | 4.46mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.276" (7.00mm) |
|
|
HCM0703-R68-RFIXED IND 680NH 15.5A 5.5MOHM SM Eaton - Electronics Division |
454 |
|
规格书 |
HCM0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 15.5 A | 25A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
