固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR73-681-RFIXED IND 680UH 290MA 3.47OHM SM Eaton - Electronics Division |
2,257 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 290 mA | 310mA | Shielded | 3.47Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

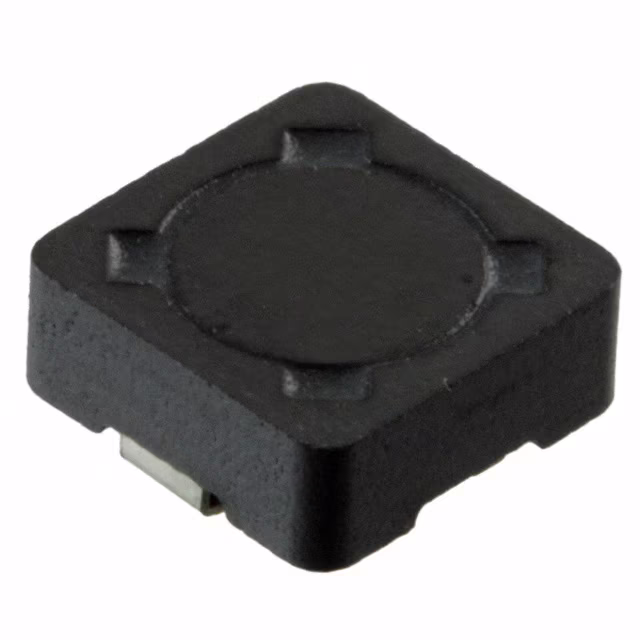

DR73-820-RFIXED IND 82UH 860MA 384MOHM SMD Eaton - Electronics Division |
2,147 |
|
规格书 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 860 mA | 890mA | Shielded | 384mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
EXLA1V0503-R56-RIND MOLDED SHLD 0.56UH 14.6A Eaton - Electronics Division |
2,385 |
|
规格书 |
EXLA1V05 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 560 nH | ±20% | 21 A | 9A | Shielded | 3.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|
DR1030-1R1-RFIXED IND 1.1UH 7A 7.9 MOHM SMD Eaton - Electronics Division |
2,704 |
|
规格书 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.1 µH | ±30% | 7 A | 9.5A | Shielded | 7.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
DR1030-150-RFIXED IND 15UH 2.3A 68.8MOHM SMD Eaton - Electronics Division |
1,034 |
|
规格书 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 2.3 A | 2.66A | Shielded | 68.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
DR1030-8R2-RFIXED IND 8.2UH 3.3A 34.1MOHM SM Eaton - Electronics Division |
2,197 |
|
规格书 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 3.3 A | 3.54A | Shielded | 34.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|
EXL1V0605-1R0-RFIXED IND 1UH 20A 4.52 MOHM SMD Eaton - Electronics Division |
3,197 |
|
规格书 |
EXL1V0605 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 20 A | 18A | Shielded | 4.52mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
MPI4012V2-R33-RFIXED IND 330NH 7.5A 13.5MOHM SM Eaton - Electronics Division |
2,897 |
|
规格书 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 7.5 A | 11A | Shielded | 13.5mOhm Max | - | 128MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.047" (1.20mm) |
|
HCM1A0703-6R8-RFIXED IND 6.8UH 3.5A 60MOHM SMD Eaton - Electronics Division |
2,115 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 3.5 A | 6.4A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-R22-RFIXED IND 220NH 17A 2.7MOHM SMD Eaton - Electronics Division |
1,595 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 17 A | 24A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
