固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCL2012V2-3R3-RFIXED IND 3.3NH 500MA 130MOHM SM Eaton - Electronics Division |
2,250 |
|
规格书 |
MCL2012V2 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.3 nH | ±0.3nH | 500 mA | - | Unshielded | 130mOhm Max | 12 @ 100MHz | 5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
MCL1608V2-101-RFIXED IND 100NH 300MA 1.2OHM SMD Eaton - Electronics Division |
2,249 |
|
规格书 |
MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 700MHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MCL2012V1-R820-RFIXED IND 820NH 200MA 360MOHM SM Eaton - Electronics Division |
2,092 |
|
规格书 |
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 820 nH | ±20% | 200 mA | - | Unshielded | 360mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
-,65-White-Field.jpg)
|
MCL1005-8R2-RFIXED IND 8.2NH 300MA 400MOHM SM Eaton - Electronics Division |
1,788 |
|
规格书 |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 8.2 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 3.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
MCL1608V1-R10-RFIXED IND 100NH 150MA 150MOHM SM Eaton - Electronics Division |
1,201 |
|
规格书 |
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±20% | 150 mA | - | Unshielded | 150mOhm Max | - | 240MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCL1608V2-8R2-RFIXED IND 8.2NH 500MA 350MOHM SM Eaton - Electronics Division |
3,695 |
|
规格书 |
MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 8.2 nH | ±5% | 500 mA | - | Unshielded | 350mOhm Max | 10 @ 100MHz | 4.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCL2012V1-4R7-RFIXED IND 4.7UH 120MA 400MOHM SM Eaton - Electronics Division |
2,935 |
|
规格书 |
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 µH | ±20% | 120 mA | - | Unshielded | 400mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|

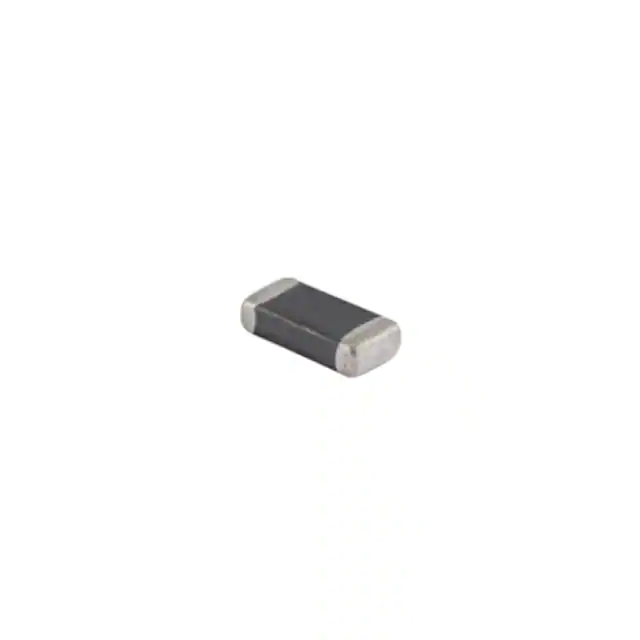

MCLA3216V1-2R2-RFIXED IND 2.2UH 50MA 500MOHM SMD Eaton - Electronics Division |
3,475 |
|
规格书 |
MCLA3216V1 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±10% | 50 mA | - | Unshielded | 500mOhm Max | 35 @ 10MHz | 50MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) |
|
|
MCL1608V2-4R7-RFIXED IND 4.7NH 500MA 200MOHM SM Eaton - Electronics Division |
3,689 |
|
规格书 |
MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 nH | ±0.3nH | 500 mA | - | Unshielded | 200mOhm Max | 10 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
WCL2520-220-RFIXED IND 22UH 105MA 3.9 OHM SMD Eaton - Electronics Division |
1,941 |
|
规格书 |
WCL2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 µH | ±5% | 105 mA | - | Unshielded | 3.9Ohm Max | 10 @ 2.52MHz | 18MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
