固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC3-2R2-RFIXED IND 2.2UH 55.5A 0.7MOHM SM Eaton - Electronics Division |
8 |
|
规格书 |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 55.5 A | 60A | Unshielded | 0.7mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
-,65-White-Field.jpg)
|
MCL1005-2R2-RFIXED IND 2.2NH 300MA 150MOHM SM Eaton - Electronics Division |
37,237 |
|
规格书 |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 nH | ±0.3nH | 300 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-1R8-RFIXED IND 1.8NH 300MA 120MOHM SM Eaton - Electronics Division |
29,750 |
|
规格书 |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 120mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-4R7-RFIXED IND 4.7NH 300MA 250MOHM SM Eaton - Electronics Division |
25,662 |
|
规格书 |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 nH | ±0.3nH | 300 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|

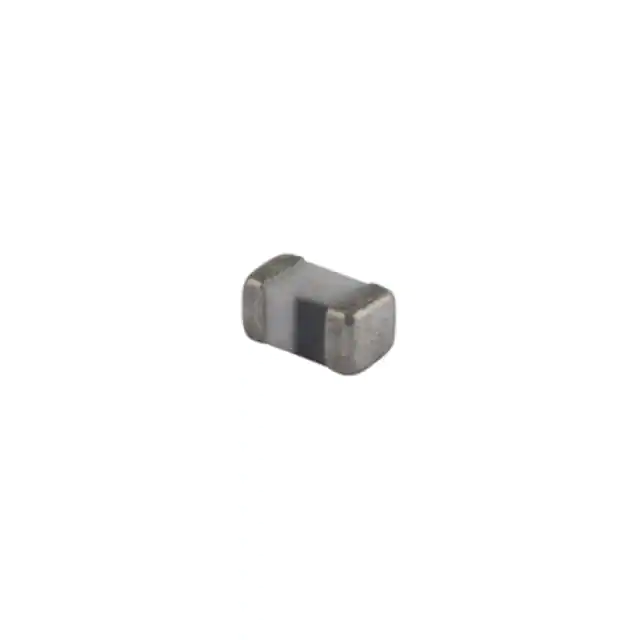

MCLA1005V2-200-RFIXED IND 20NH 300MA 600MOHM SMD Eaton - Electronics Division |
24,943 |
|
规格书 |
MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 20 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 8 @ 100MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-2R7-RFIXED IND 2.7NH 300MA 150MOHM SM Eaton - Electronics Division |
19,825 |
|
规格书 |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.7 nH | ±0.3nH | 300 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-560-RFIXED IND 56NH 200MA 1.2 OHM SMD Eaton - Electronics Division |
19,512 |
|
规格书 |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 56 nH | ±5% | 200 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 750MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-331-RFIXED IND 330NH 50MA 7 OHM SMD Eaton - Electronics Division |
19,510 |
|
规格书 |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±5% | 50 mA | - | Unshielded | 7Ohm Max | 6 @ 500MHz | 350MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-271-RFIXED IND 270NH 100MA 4.5OHM SMD Eaton - Electronics Division |
19,319 |
|
规格书 |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 270 nH | ±5% | 100 mA | - | Unshielded | 4.5Ohm Max | 8 @ 100MHz | 400MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCLA1005V2-150-RFIXED IND 15NH 300MA 500MOHM SMD Eaton - Electronics Division |
19,317 |
|
规格书 |
MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 15 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 8 @ 100MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
