固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP2-330-RFIXED IND 33UH 2.4A 98.9MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 2.4 A | 1.7A | Unshielded | 98.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|

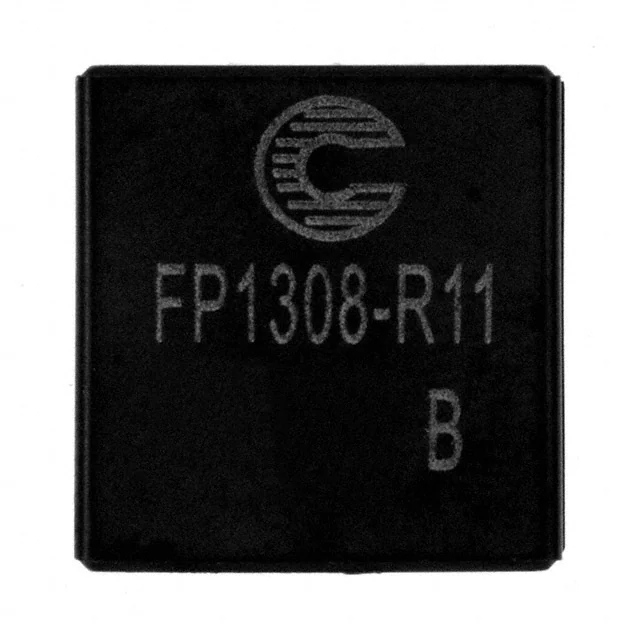

FP1308-R11-RFIXED IND 110NH 68A 0.24MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 110 nH | ±10% | 68 A | 120A | Unshielded | 0.24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | 0.315" (8.00mm) |
|
SD7040-101-RFIXED IND 100UH Eaton - Electronics Division |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | 100 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
UP3B-6R8-RFIXED IND 6.8UH 5.8A 18.3MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 5.8 A | 6.2A | Unshielded | 18.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|
DRA125-3R3-RFIXED IND 3.3UH 9.69A 5.8MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 9.69 A | 12.77A | Shielded | 5.8mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
UP2-1R5-RFIXED IND 1.5UH 8.1A 10.3MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 8.1 A | 7.9A | Unshielded | 10.3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
|
UP2-220-RFIXED IND 22UH 2.9A 64.4MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 2.9 A | 2A | Unshielded | 64.4mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
|
UP2-820-RFIXED IND 82UH 1.5A 247.3MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 1.5 A | 1A | Unshielded | 247.3mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
|
UP2-R47-RFIXED IND 470NH 10.1A 4.9MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 10.1 A | 11.4A | Unshielded | 4.9mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
|
HCM1A0805V2-100-RIND MP 10UH 6.2A 2 PADS SMT Eaton - Electronics Division |
0 |
|
- |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 10 µH | ±20% | 4 A | 6.2A | Shielded | 60mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.213" (5.40mm) |
