固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

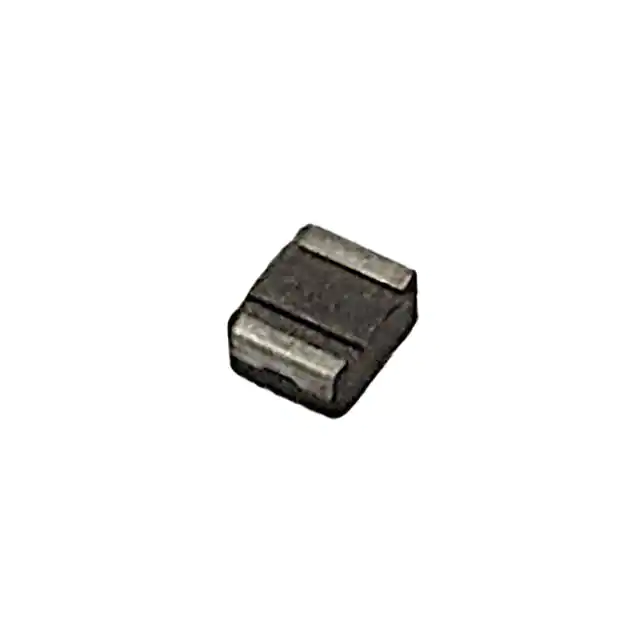

MPI2510V2-3R3-RFIXED IND 3.3UH 1.6A 170MOHM SMD Eaton - Electronics Division |
14,833 |
|
规格书 |
MPI25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.6 A | 2.1A | Shielded | 170mOhm Max | - | 35MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|

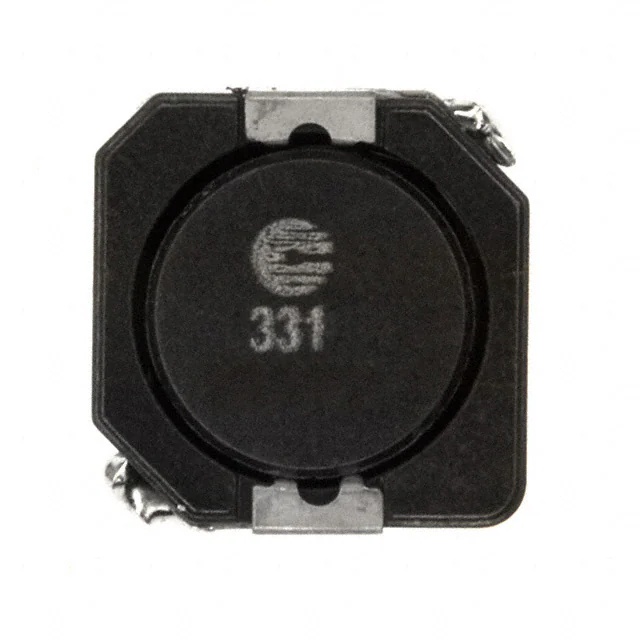

DR1050-331-RFIXED IND 330UH 830MA 693MOHM SM Eaton - Electronics Division |
6,047 |
|
规格书 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 830 mA | 800mA | Shielded | 693mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

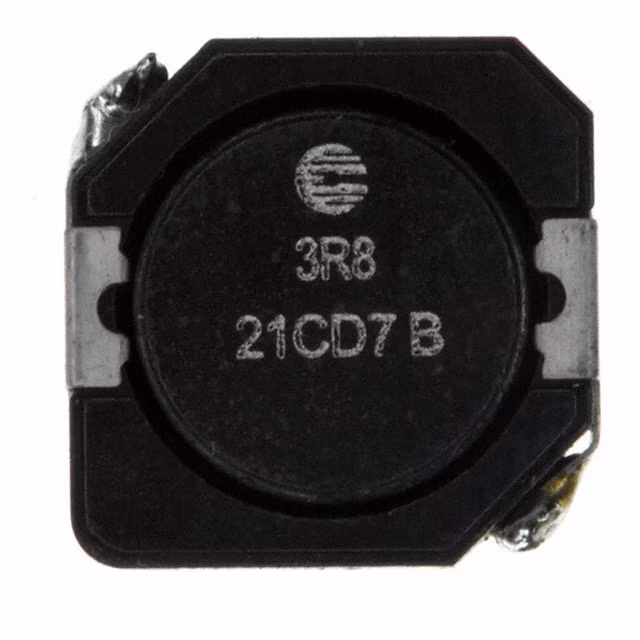

DR1040-3R8-RFIXED IND 3.8UH 5.5A 13 MOHM SMD Eaton - Electronics Division |
1,227 |
|
规格书 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.8 µH | ±30% | 5.5 A | 6.4A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
HCMA0703-2R2-RFIXED IND 2.2UH 8A 20 MOHM SMD Eaton - Electronics Division |
1,403 |
|
规格书 |
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
HCM0503-4R7-RFIXED IND 4.7UH 4.5A 60 MOHM SMD Eaton - Electronics Division |
4,174 |
|
规格书 |
HCM0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 4.5 A | 5.5A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|

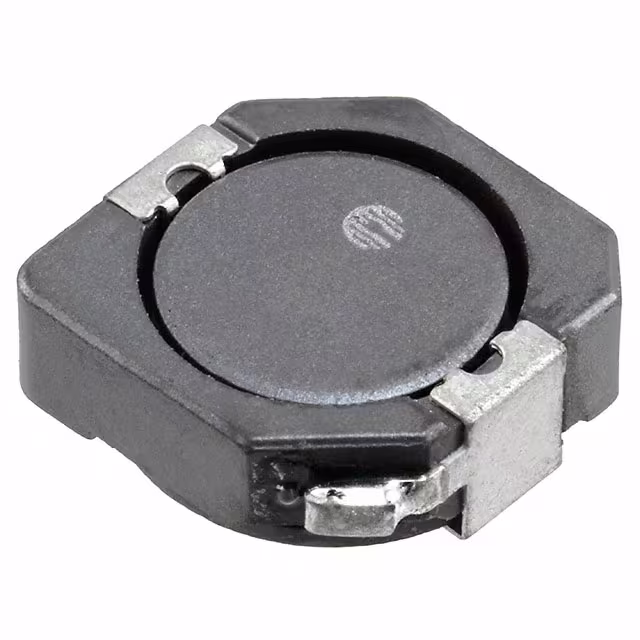

DR1040-101-RFIXED IND 100UH 1.25A 304MOHM SM Eaton - Electronics Division |
3,252 |
|
规格书 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.25 A | 1.35A | Shielded | 304mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
HCM0503-R20-RFIXED IND 200NH 22.2A 2.31 MOHM Eaton - Electronics Division |
2,673 |
|
规格书 |
HCM0503 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±20% | 22.2 A | 21A | Shielded | 2.31mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
HCM0503-R35-RFIXED IND 350NH 16.6A 4.29 MOHM Eaton - Electronics Division |
3,263 |
|
规格书 |
HCM0503 | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 350 nH | ±20% | 16.6 A | 14.9A | Shielded | 4.29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
HCMA0503-5R6-RFIXED IND 5.6UH 4.3A 70.6MOHM SM Eaton - Electronics Division |
5,497 |
|
规格书 |
HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±20% | 4.3 A | 3.5A | Shielded | 70.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
|
HCMA0503-1R5-RFIXED IND 1.5UH 7.5A 18.5MOHM SM Eaton - Electronics Division |
3,868 |
|
规格书 |
HCMA0503 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 7.5 A | 7A | Shielded | 18.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
