固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WCL2520-1R0-RFIXED IND 1UH 580MA 550 MOHM SMD Eaton - Electronics Division |
2,408 |
|
规格书 |
WCL2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±5% | 580 mA | - | Unshielded | 550mOhm Max | 12 @ 25.2MHz | 300MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
WCL3225-100-RFIXED IND 10UH 300MA 1 OHM SMD Eaton - Electronics Division |
4,172 |
|
规格书 |
WCL3225 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 µH | ±5% | 300 mA | - | Unshielded | 1Ohm Max | 10 @ 2.52MHz | 30MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.138" L x 0.114" W (3.50mm x 2.90mm) | 0.089" (2.25mm) |
|

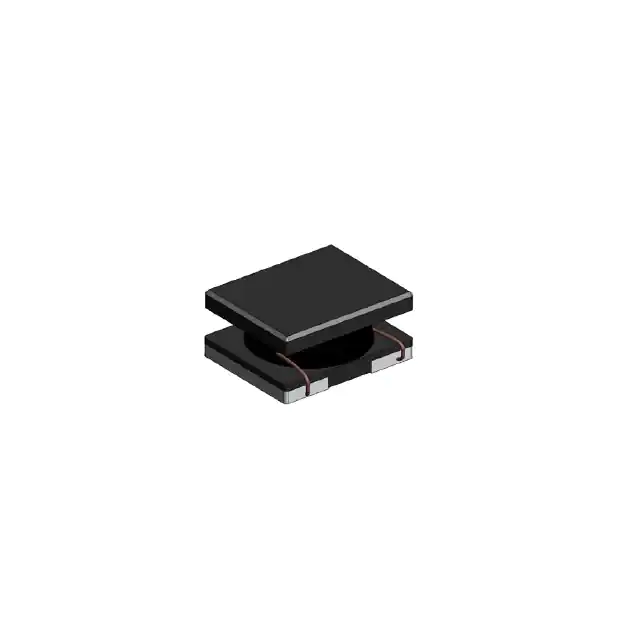

SDCL1V2010-1R0N-RIND 1.0 UH 1.8A SMT Eaton - Electronics Division |
3,560 |
|
规格书 |
SDCL1V20 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 1.55 A | 1.8A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.083" L x 0.067" W (2.10mm x 1.70mm) | 0.041" (1.05mm) |
|
SDCH1V5020-4R7M-RIND 4.7 UH 2.60A SMT Eaton - Electronics Division |
1,677 |
|
规格书 |
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 2.2 A | 2.6A | Shielded | 78mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
SDCL1V2010-100M-RIND 10 UH 0.60A SMT Eaton - Electronics Division |
10,142 |
|
规格书 |
SDCL1V20 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 500 mA | 600mA | Shielded | 810mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.083" L x 0.067" W (2.10mm x 1.70mm) | 0.041" (1.05mm) |
|

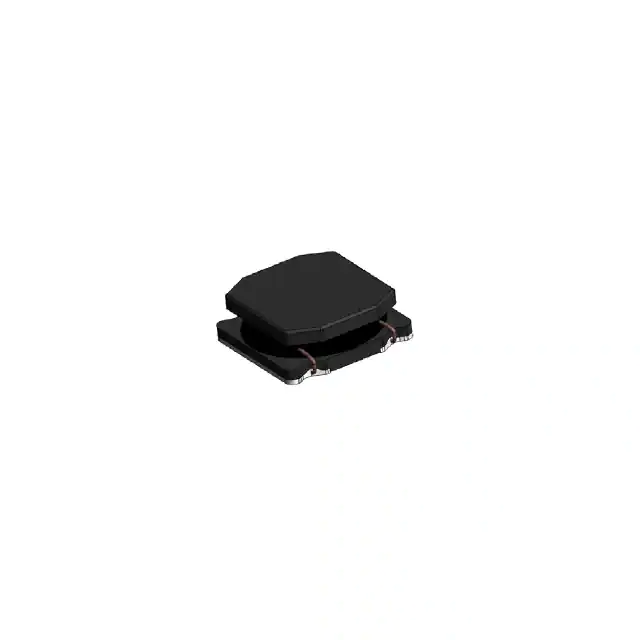

SDCL1V3012-100M-RIND 10 UH 0.60A SMT Eaton - Electronics Division |
7,585 |
|
规格书 |
SDCL1V30 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 500 mA | 600mA | Shielded | 345mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
|
WCL3225-220-RFIXED IND 22UH 200MA 2.4 OHM SMD Eaton - Electronics Division |
2,000 |
|
规格书 |
WCL3225 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 µH | ±5% | 200 mA | - | Unshielded | 2.4Ohm Max | 10 @ 2.52MHz | 20MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.138" L x 0.114" W (3.50mm x 2.90mm) | 0.089" (2.25mm) |
|
|
SDCL1V3012-4R7M-RIND 4.7 UH 0.95A SMT Eaton - Electronics Division |
10,175 |
|
规格书 |
SDCL1V30 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 800 mA | 950mA | Shielded | 156mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
|
SDCHA1V6045-560-RIND SMD POWER 56.0UH 1.4A Eaton - Electronics Division |
1,199 |
|
规格书 |
SDCHA1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 56 µH | ±20% | 1.4 A | 1.8A | Shielded | 230mOhm | - | 11MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

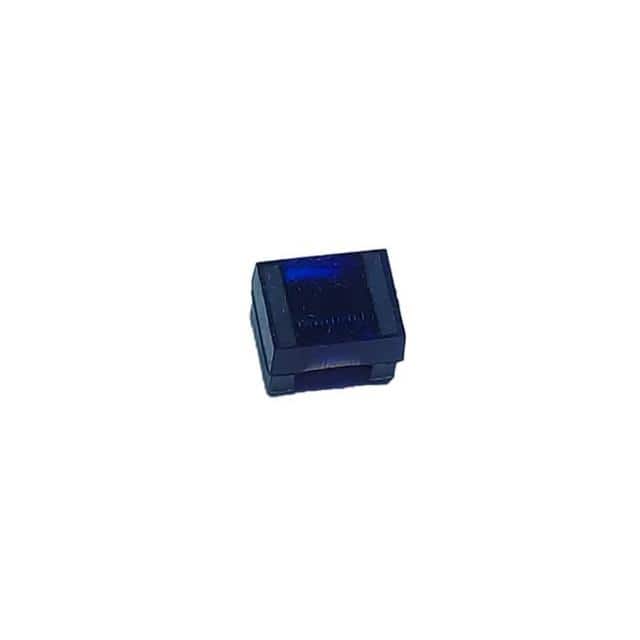

WCLA3225V1-471-RCHIP IND 470UH 0.086A SMT 2 PAD Eaton - Electronics Division |
2,505 |
|
规格书 |
WCLA3225V1 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±10% | 86 mA | - | Unshielded | 18.1Ohm Max | 10 @ 1MHz | 2.6MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.142" L x 0.110" W (3.60mm x 2.80mm) | 0.094" (2.40mm) |
