上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WCLA1608V1-101-RFIXED IND 100NH 400MA 630MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±5% | 400 mA | - | Unshielded | 630mOhm Max | 30 @ 150MHz | 1.4GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
WCLA1608V1-470-RFIXED IND 47NH 600MA 280MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 nH | ±5% | 600 mA | - | Unshielded | 280mOhm Max | 36 @ 200MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
WCLA1608V1-391-RFIXED IND 390NH 100MA 4.35OHM SM Eaton - Electronics Division |
0 |
|
规格书 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 390 nH | ±5% | 100 mA | - | Unshielded | 4.35Ohm Max | 25 @ 100MHz | 800MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
WCLA1608V1-100-RFIXED IND 10NH 700MA 130MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 10 nH | ±5% | 700 mA | - | Unshielded | 130mOhm Max | 31 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
WCLA1608V1-220-RFIXED IND 22NH 700MA 190MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 22 nH | ±5% | 700 mA | - | Unshielded | 190mOhm Max | 38 @ 250MHz | 3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
WCLA1608V1-820-RFIXED IND 82NH 400MA 550MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 82 nH | ±5% | 400 mA | - | Unshielded | 550mOhm Max | 34 @ 150MHz | 1.7GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
WCLA1608V1-1R8-RFIXED IND 1.8NH 700MA 45MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1.8 nH | ±10% | 700 mA | - | Unshielded | 45mOhm Max | 16 @ 250MHz | 12.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|
|
WCLA1608V1-560-RFIXED IND 56NH 600MA 280MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 56 nH | ±5% | 600 mA | - | Unshielded | 280mOhm Max | 38 @ 200MHz | 1.9GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | 0.037" (0.95mm) |
|

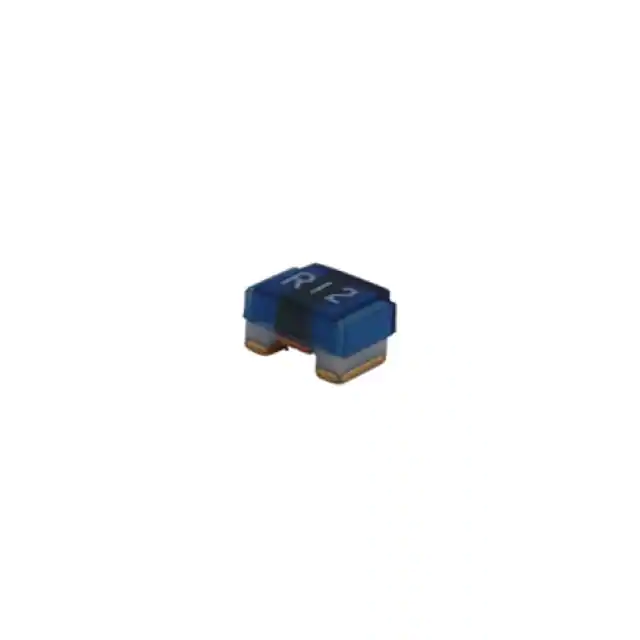

WCLA2012V1-121-RFIXED IND 120NH 400MA 510MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
WCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 120 nH | ±5% | 400 mA | - | Unshielded | 510mOhm Max | 45 @ 250MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.060" (1.52mm) |
|
EXL1V0402-R60-RFIXED IND 600NH 12.4A 7.8MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
EXL1V0402 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 600 nH | ±20% | 12.4 A | 11.1A | Shielded | 7.8mOhm Max | - | 85MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.173" W (4.40mm x 4.40mm) | 0.083" (2.10mm) |
